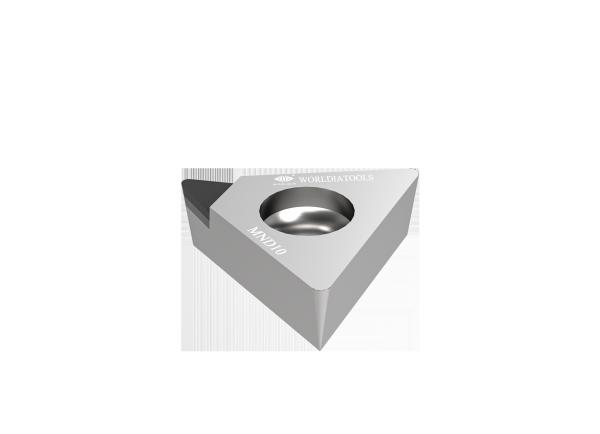

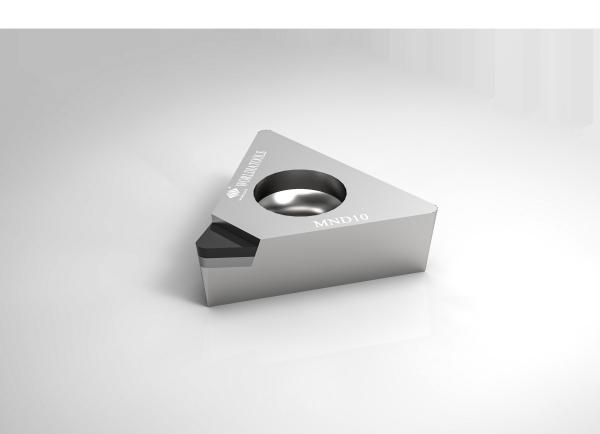

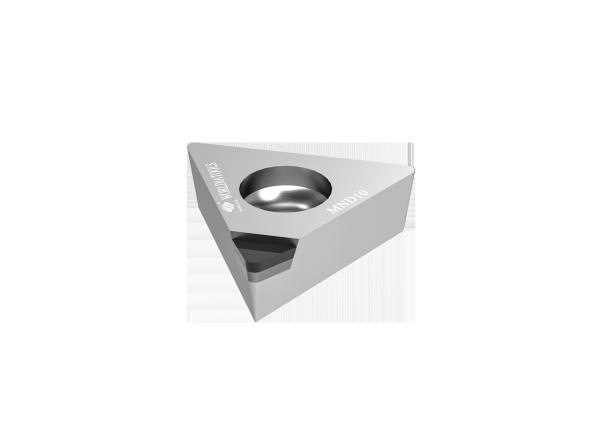

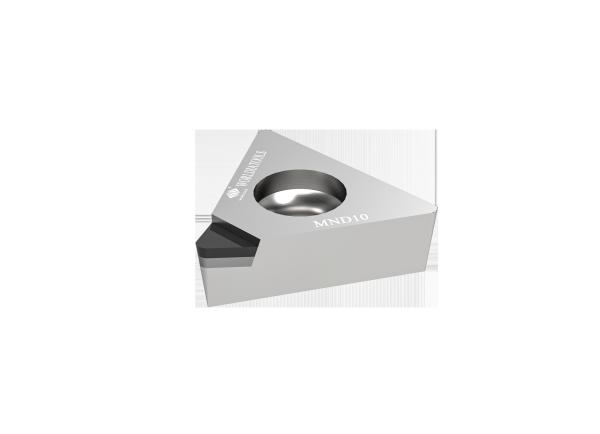

TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
TCGT PCD Cutting Inserts Aluminum Turning Inserts For Non Ferrous Materials
Specifications
Brand Name :
ManaNova
Model Number :
TCGT 110302
Certification :
ISO9001,14001.18001, RoHS
Place of Origin :
Beijing, China
MOQ :
2 Piece
Price :
$20-40/ Piece
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
In stock
Delivery Time :
3-4days
Packaging Details :
2 PCs/Blue rose box
Feature :
· Universal · Easy choice · Fast delivery
PCD Grade :
MND10
Service :
· Online store service · Local distributor support · Technical support
Product Brand :
WORLDIA
Product Family :
ManaNova
Material :
PCD+Carbide
Application :
Machining of non-ferrous materials
Description

TCGT 110302 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials

WORLDIA

With high-quality products and professional technical support, we are honored to service

the top manufacturers in automotive, new energy, wind power, engineering machinery industries, etc.

Description:

ManaNova is positioned as a high-end standard series.

The PCD/PCBN materials are selected strictly to meet the needs of customers and

provide a universal, stable, and efficient cutting effect.

Easy choice and Fast delivery is the feature of ManaNova.


Materials:

Poly-Crystalline Diamond (PCD)

1. Reduce your tooling cost significantly

2. For non-ferrous metal machining

Polycrystalline cubic boron nitride(CBN)

1. With an excellent hot hardness

2. Good toughness and thermal shock resistance.

3. For hardened steel, cast irons, sintered irons as well as powder metallurgy components machining

Main products:

PCBN insert is suitable for machining hardened steel, gray cast iron, ductile iron, and powder metallurgy.

PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other

Advantages:

·High quality

·Low cost

·Factory direct supply


Application:

MND10 Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc.

PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.
·Aluminum and aluminum alloys
·Copper, brass, and bronze alloys
·Zinc and magnesium alloys
·Carbon Fiber
·Epoxy resins
·Plastics
·Fiberglass composites
·Graphite composites

Specification:

Angle Dimensions Grade
ANSI Code ISO Code Tips IC
mm		 S
mm		 R
mm		 Φd
mm		 LE
mm		 MND
10
TCGT 1.81.50.5 TCGT 090202 1N 5.56 2.38 0.2 2.4 2.5 √
TCGT 1.81.51 TCGT 090204 1N 5.56 2.38 0.4 2.4 2.5 √
TCGT 220.5 TCGT 110302 1N 6.35 3.18 0.2 2.8 2.5 √
TCGT 221 TCGT 110304 1N 6.35 3.18 0.4 2.8 2.5 √
TCGT 222 TCGT 110308 1N 6.35 3.18 0.8 2.8 2.5 √
L-TCGT 32.51 L-TCGT 16T304 2N 9.525 3.97 0.4 4.4 15.9 √

Feed rate recommendation
Nose radius(mm) Ra um
0.2 0.4 0.8 1.6 3.2 6.4
Feed Rate f (mm/rev)≤
0.2 0.028 0.040 0.057 0.080 0.113 0.160
0.4 0.040 0.057 0.080 0.113 0.160 0.226
0.8 0.057 0.080 0.113 0.160 0.226 0.320
1.2 0.069 0.098 0.139 0.196 0.277 0.392
1.6 0.080 0.113 0.160 0.226 0.320 0.453
2.4 0.098 0.139 0.196 0.277 0.392 0.554
