Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
Specifications
Brand Name :
WORLDIA
Model Number :
RCMX060500/RCMX090700/RCMX120700
Place of Origin :
Beijing,China
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20,000PCS（monthly）
Delivery Time :
15days
Packaging Details :
plastic case for packing
Name :
Round PCD insert /PCD Round Blade
Material :
PCD/ Polycrystalline Diamond
Type :
PCD tools
Advantages :
Strong impact resistance/ Good wear resistance
Customized support :
OBM/OEM/ODM
Description

RCMX round PCD cutting insert blade tool HRA85 for CNC caribe steel rolls turning

Round PCD Insert----APPLICATION

WORLDIA PCD round insert is used to process tungsten carbide rollers of various specifications.
Processed workpiece:

hardness steel, gray cast iron, high hardness cast iron, powder metallurgy and
others (Co>15%wt Carbide HRA=80-88), etc.
Work efficiency: improved by 5-10 times when compared to grinding.

Round PCD Insert----ADVANTAGES

  • Round PCD insert Uses Use original tungsten carbide material as the basement. Using the content of 99.95% or more high purity raw material, to ensure the performance of PCD inserts basement.
  • Round PCD insert has hight Abrasion resistant/High impact resistance
  • Round PCD insert uses self-developed special machine tools for processing, the product has high precision, stable performance, and high processing efficiency

Round PCD Insert----SPECIFICATION

Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum

PCD Round Insert ShapeSpecification ModelBasic size
DHA
Rcmx Pcd Cutting Inserts , Round Carbide Inserts For AluminumRCMN09X3009.5253.57°
RCMN12060012.76.357°

Note: The above size can be customized according to customer needs.

Round PCD Insert----Poly Crystalline Diamond PCD cutter with carbide support

Tools with Poly-Crystalline Diamond (PCD) cutting materials can reduce your tooling cost significantly,
PCD tools are ideal for use with non-ferrous metals, such as aluminum, Zinc, and magnesium alloys,
GRP composites, carbon fiber reinforced plastics, “green” carbide, and ceramic as well as all abrasive materials.

We manufacture PCD Round Insert with advanced processing machines and control the product quality from
the very beginning which keeps PCD tools with high accuracy and good quality with consistency.

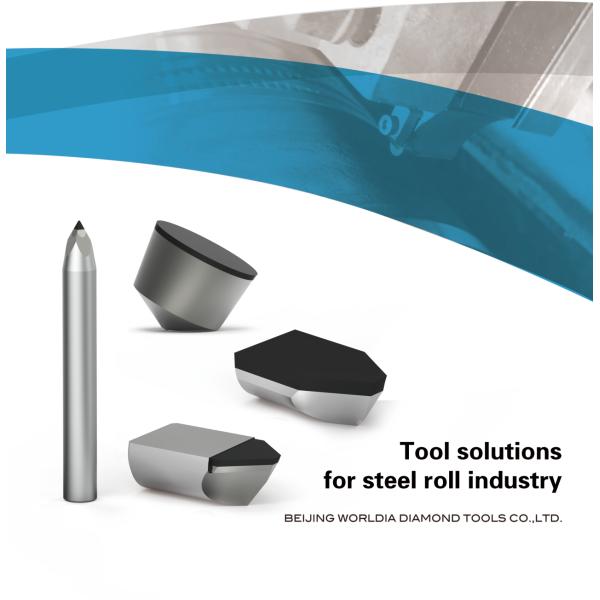

Round PCD Insert----Steel Roll industry solutions

Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum


  • According to the different requirements of roll processing materials and processing technology, Beijing Worldia Diamond Tools Co., Ltd. has developed different types of tools.
  • For example.PCD/PCBN round inserts used for turning the outer circle of rolls and ring grooves ring roller carbide milling groove boring alveolar tool. PCBN small boring tool, pcd small boring tool(small boring tool can be called a rotary cutter, knife ribs, small knife, etc). And the four-sided carving knife is used for engraving marks in the ring groove of the roll. It constitutes a complete set of tool solutions from registration blank to finished product processing.



Round PCD Insert-----WHY CHOOSE US

Rcmx Pcd Cutting Inserts , Round Carbide Inserts For Aluminum
