SUS 304 Stainless steel full automatic oil filling machine Bottle capping machine

Automatic edible oil filling equipment, suitable for family oil workshop.

Suitable range:

Suitable for filling viscous liquid, such as edible oil, lubricating oil, syrup, honey, detergent, etc.

Principle features:

A. This type of filling machine is reasonable in design, small in size, easy to operate and economical;

B. The piston and cylinder block of the cylinder are made of PTFE and stainless steel;

C. The filling quantity and filling speed can be adjusted arbitrarily with high filling precision;

D. Filling plug adopts anti dripping and anti drawing filling device.

Technical parameters:

Filling capacity: piston type: 0.1-1 L, 1-5 L

Filling speed: 200-400 bottles / hour

Filling accuracy: ±≤ 0.5% FS

Power supply: 220 V

Gas source pressure: 0.5-0.7mpa

Filling head: 2

Edible oil, also known as "cooking oil", refers to animal or vegetable oils used in the production of food. It is liquid at room temperature. Due to the source of raw materials, processing technology and quality, the common edible oils are vegetable oils, including rapeseed oil, peanut oil, sesame oil, corn oil, olive oil, camellia oil, palm oil, sunflower oil, soybean oil, sesame oil, flaxseed oil (sesame oil), grape seed oil, walnut oil, peony seed oil, etc.

Now for the oil filling mode, the main direction is divided into two categories, one is manual filling, the other is automatic filling machine, but with the advent of the era of automation, manual filling has been far from meeting the needs of people's filling, the use of automatic oil tank filling machine, such as automatic equipment, has a better improvement in efficiency, thus improving the production efficiency of enterprises; secondly, the use of automatic oil tank filling machine can not meet the needs of people's filling, After the automatic oil tank filling machine replaces the manual filling, the contact between the product and the pollution source is better, which ensures the safety and health requirements of the product; thirdly, the automatic oil tank filling machine can accurately quantify. And all these can better improve the production of enterprises, reduce the production cost of enterprises.

Quick Detail:

1. Control: PLC
2. driver: ELEC
3. material: SUS304
4. Productivity: 2000-18000bph


Description:

Olive oil cooking oil vegetable oil bottle automatic oil filling machine filling line is suitable to fill and seal 500ml-5Lit oil bottles,cans of cooking oil,mustard oil,sunflower oil,refined oil,vegitable oil etc.
Online filler with cap sealing unit
Edible Oil Filling also suitable to fill 15Kg Mustard Oil Tins as optional choice

Applications:

cooking oil bottle automatic oil filling machine filling line is most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
Typical application: Cooking Oils, Detergent,Sauce, Salad, Butter & Margarine, Ketchup, Jams, Cream, Honey, shampoos etc.

Purpose:

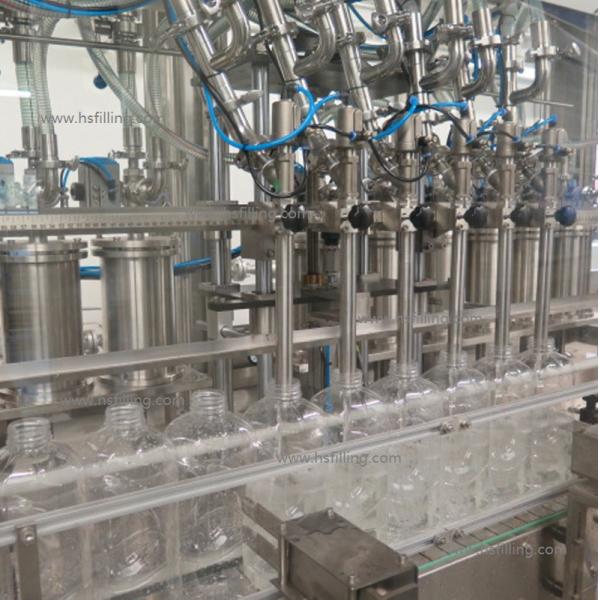

This Olive oil cooking oil vegetable oil bottle automatic oil filling machine filling line is an automatic oil filling and capping machine, from bottle making to oil filling, capping, labeling and packing. Olive oil cooking oil vegetable oil bottle automatic oil filling machine filling line adopt piston filling type,it could be applicable for all kinds of oil,fruit &vegetable sauce(with or without solid piece),granule drink quantify filling and capping . no bottles no filling and capping,PLC control system,easy operation.

Technical Data:

Competitive Advantage:

Main characteristics are as following:

1 Compact structure, complete controlling system, convenient operation and high automatization;

Parts connect with material are all made from good stainless steel, bear rust and easy cleaning.

2 Adopt with high accurate pisiton valve, precise in fix quantify and no dripping.

3, The filling amount adjustment adopts with round orbit. The gradient adjustment of round guiding orbit is convenient, which works stable and no impact.

4, The cap spinning head is adopted with constant wrest moment magnetism device, which ensures the quality of cap spinning and no damage to caps.

5, Adopts with high effect cap ordering system and complete cap feeding and protection device.

6, With perfect over loading protection device, it can protect the machine when the glass bottle is jammed in machine.

7, With frequency conversion timing motor, this machine can do proper adjustment to its production capacity.

8, It is equipped with eliminating structure for reverse caps and alarm system when no caps feeding.

9, Has the function of filling with bottles and no filling without bottles.

10, The electric system is the combine operation of HMI and button, easy to operate.
