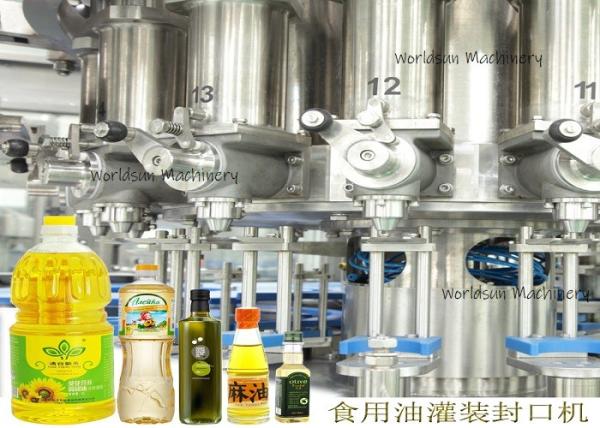

6000-7000BPH essential oil filling machine capping machine automatic stainless steel

Purpose:

This Olive oil cooking oil vegetable oil bottle automatic oil filling machine filling line is an automatic oil filling and capping machine, from bottle making to oil filling, capping, labeling and packing. Olive oil cooking oil vegetable oil bottle automatic oil filling machine filling line adopt piston filling type,it could be applicable for all kinds of oil,fruit &vegetable sauce(with or without solid piece),granule drink quantify filling and capping . no bottles no filling and capping,PLC control system,easy operation.

Quick Detail:

1. Control: PLC
2. driver: ELEC
3. material: SUS304
4. Productivity: 6000-7000bph


Description:

essential oil bottle automatic oil filling machine filling line is suitable to fill and seal 500ml-5Lit oil bottles,cans of cooking oil,mustard oil,sunflower oil,refined oil,vegitable oil etc.
Online filler with cap sealing unit
Edible Oil Filling also suitable to fill 15Kg Mustard Oil Tins as optional choice

Applications:

cooking oil bottle automatic oil filling machine filling line is most commonly applicable for pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticides and other industrials.
Typical application: Cooking Oils, Detergent,Sauce, Salad, Butter & Margarine, Ketchup, Jams, Cream, Honey, shampoos etc.

Technical Data:

Competitive Advantage:

Main characteristics are as following:

1 Compact structure, complete controlling system, convenient operation and high automatization;

Parts connect with material are all made from good stainless steel, bear rust and easy cleaning.

2 Adopt with high accurate pisiton valve, precise in fix quantify and no dripping.

3, The filling amount adjustment adopts with round orbit. The gradient adjustment of round guiding orbit is convenient, which works stable and no impact.

4, The cap spinning head is adopted with constant wrest moment magnetism device, which ensures the quality of cap spinning and no damage to caps.

5, Adopts with high effect cap ordering system and complete cap feeding and protection device.

6, With perfect over loading protection device, it can protect the machine when the glass bottle is jammed in machine.

7, With frequency conversion timing motor, this machine can do proper adjustment to its production capacity.

8, It is equipped with eliminating structure for reverse caps and alarm system when no caps feeding.

9, Has the function of filling with bottles and no filling without bottles.

10, The electric system is the combine operation of HMI and button, easy to operate.
