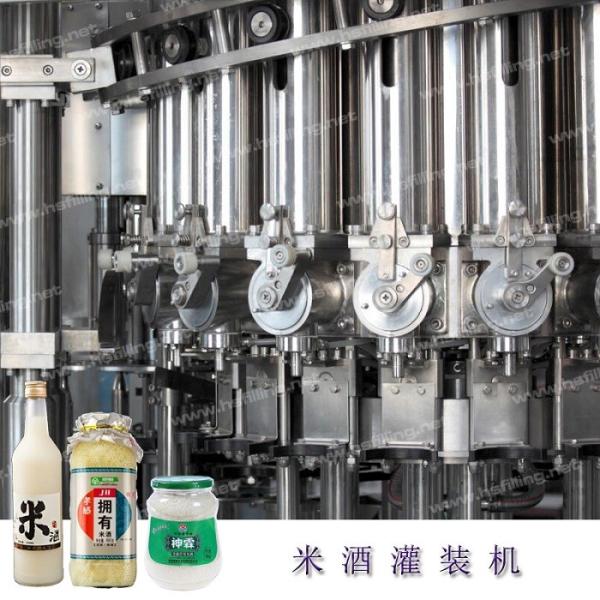

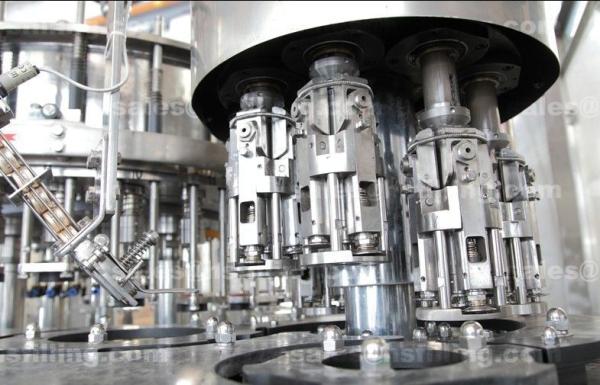

Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine
Specifications
Brand Name :
Worldsun
Model Number :
BRGF
Certification :
CE, ISO, SGS, GMC
Place of Origin :
China
MOQ :
1 Set
Price :
from 20000usd to 40000usd per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
three months 3 sets
Delivery Time :
three months
Packaging Details :
wooden box
Material :
Stainless steel 304/316
Production capacity :
2000-12000bph 500ml
Voltage :
220V/380V, By order
Condition :
New
After-sales service provide :
Engineers available to service machinery overseas, Online support
Power :
2-4kw
Weight :
2600-4000kg
Bottle :
PET/glass bottles
Bottle volume :
200-1000ml
Description

Stainless steel Automatic alcohol Filling Machine for Liquor / Red Wine / Alcohol / Glass Bottle

The BRGF series alcohol filling machine mainly used in glass bottle packing.

It is widely used in alcohol such as wine ,Vodka , Whisky, Agave,vinegar etc. The lid can be crown cap or aluminium screw-cap, plastic cap etc..

In the filling section, Bottle upgrade system can be constructed as mechanical mode or pneumatic mode, and the pre-holding parts ensure bottles run smoothly.

Technical Data:

Model Number of washing filling and capping Production capacity
Bottle per hour(0.5L)		 Applicable bottle specifications (mm) Power(kw) Dimension(mm)
BRGF12/5 12, 5 3000-4000 0.25L-2L
50-108 mm
H=170-340mm		 1.5 1800x1400x2500
BRGF18/6 18, 6 5000-6000 2.2 210x1720x2650
BRGF24/8 24, 8 80000-90000 3 2500x2100x2650
BRGF32/10 32, 10 10000-12000 4 2800x2300x2650

Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine

Filling machine is one of the main equipment of liquor production. It is based on advanced technology abroad, and is based on the characteristics of Baijiu (viscosity, alcohol, etc.) for automatic production of machinery. It can save a lot of manpower and material resources. Realize automatic filling of liquor.

Functions and features:

The filling machine of the liquor is made of stainless steel fuselage, with compact structure, perfect control system, convenient operation and high automation. Parts in contact with materials are made of high quality stainless steel, no dead angle, easy to clean; Using high speed filling valve, the liquid level is accurate without liquid loss, to ensure the filling process requirements; With perfect overload protection device, it can effectively protect the safety of equipment and operators; The control system has the functions of production speed control, missing cap detection, bottle clamping self stop and output counting.

Filling characteristics:

1. The machine adopts special filling valve and high-power vacuum pump, and the liquid level is consistent after packaging and filling.

2. When filling the bottle mouth, the liquid flows down the bottle wall. It effectively controls the foam caused by the liquid impact during filling and prevents liquid overflow.

3. The machine has the advantages of variable frequency speed regulation, fast filling speed, overload protection device, bottle clamping stop, soft start and elastic bottle supporting device, which can reduce the damage of bottles.

4. The filling volume is adjusted by adding and subtracting the gasket on the filling valve, which is convenient and fast.

5. The filling range of the machine is large, and the filling volume can be adjusted in 100-1500 ml.

6. Applicable to a wide range of bottle height, can be adjusted between 100-380mm.

7. The main sealing parts are made of imported silica gel, and the main parts are made of 304 stainless steel meeting the requirements of food hygiene.

8. The filling valve is easy to disassemble and clean.

Product classification:

Classification of liquor bottling machine: according to the degree of automation, it can be divided into full-automatic liquor bottling machine and semi-automatic liquor bottling machine.

According to the type of bottling machine, it can be divided into linear bottling machine and rotary bottling machine.

Stainless Steel 12000bph 200ml Alcohol Filling Machine glass bottle liquor bottling machine

1. Plant Included:

1) Bottle washing machine;

2) Bottle alcohol filling machine;

3) Bottle capping machine;

4) Labeling machine;

5) Packing machine;

6) Conveyor.

2. Production Capacity (500ml bottle):

1) from 2000 to 12000 bottles per hour

3. Please tell us below information then we can quote you:

1) Bottle volume;

2) How many bottles per hour you want?

4. We can provide you:

- Machine suggestion

- Special machine design according to your inquiry

- Stable quality machine

- Labeling

- carton case

- Machine testing in your factory

- Training

P.S-We provide glass bottle alcohol filling capping 2-in-1 machine and glass bottle rinisng alcohol filling capping 3-in-1 machine.
