SUS304 Stainless Steel 5000-6000BPH Automatic Cider Filling Machine Liquor / Red Wine / Alcohol / Glass Bottle

Filling machine is one of the main equipment of winery production. It is based on advanced technology abroad, and is based on the characteristics of cider (viscosity, alcohol, etc.) for automatic production of machinery. It can save a lot of manpower and material resources. Automatic filling of Baijiu is realized.

Functions and features:

The filling machine of the Baijiu is made of stainless steel fuselage, with compact structure, perfect control system, convenient operation and high automation. Parts in contact with materials are made of high quality stainless steel, no dead angle, easy to clean; Using high speed filling valve, the liquid level is accurate without liquid loss, to ensure the filling process requirements; With perfect overload protection device, it can effectively protect the safety of equipment and operators; The control system has the functions of production speed control, missing cap detection, bottle clamping self stop and output counting.

Filling characteristics:

1. The machine adopts special filling valve and high-power vacuum pump, and the liquid level is consistent after packaging and filling.

2. When filling the bottle mouth, the liquid flows down the bottle wall. It effectively controls the foam caused by the liquid impact during filling and prevents liquid overflow.

3. The machine has the advantages of variable frequency speed regulation, fast filling speed, overload protection device, bottle clamping stop, soft start and elastic bottle supporting device, which can reduce the damage of bottles.

4. The filling volume is adjusted by adding and subtracting the gasket on the filling valve, which is convenient and fast.

5. The filling range of the machine is large, and the filling volume can be adjusted in 100-1500 ml.

6. Applicable to a wide range of bottle height, can be adjusted between 100-380mm.

7. The main sealing parts are made of imported silica gel, and the main parts are made of 304 stainless steel meeting the requirements of food hygiene.

8. The filling valve is easy to disassemble and clean.

Product classification:

Classification of wine filling machine: according to the degree of automation, it can be divided into full-automatic wine filling machine and semi-automatic wine filling machine.

According to the type of filling machine, it can be divided into linear filling machine and rotary filling machine.

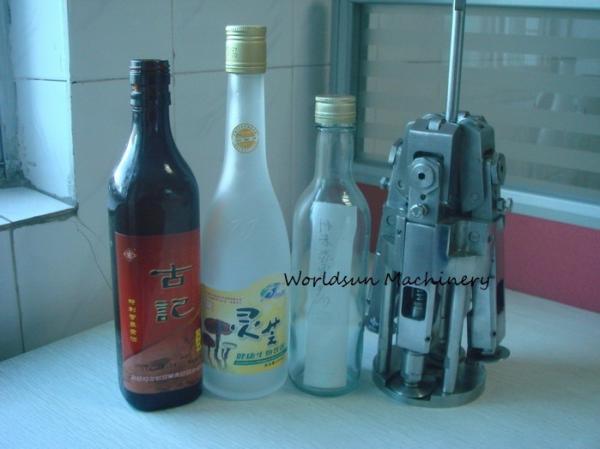

The BRGF series alcohol filling machine mainly used in glass bottle packing.

It is widely used in alcohol such as wine ,Vodka , Whisky, Agave,vinegar etc. The lid can be crown cap or aluminium screw-cap, plastic cap etc.,

In the filling section, Bottle upgrade system can be constructed as mechanical mode or pneumatic mode, and the pre-holding parts ensure bottles run smoothly.

1. Plant Included:

1) Bottle washing machine;

2) Bottle alcohol filling machine;

3) Bottle capping machine;

4) Labeling machine;

5) Packing machine;

6) Conveyor.

2. Production Capacity (500ml bottle):

1) from 5000 to 6000 bottles per hour

3. Please tell us below information then we can quote you:

1) Bottle volume;

2) How many bottles per hour you want?

4. We can provide you:

- Machine suggestion

- Special machine design according to your inquiry

- Stable quality machine

- Labeling

- carton case

- Machine testing in your factory

- Training

P.S-We provide glass bottle alcohol filling capping 2-in-1 machine and glass bottle rinisng alcohol filling capping 3-in-1 machine.
