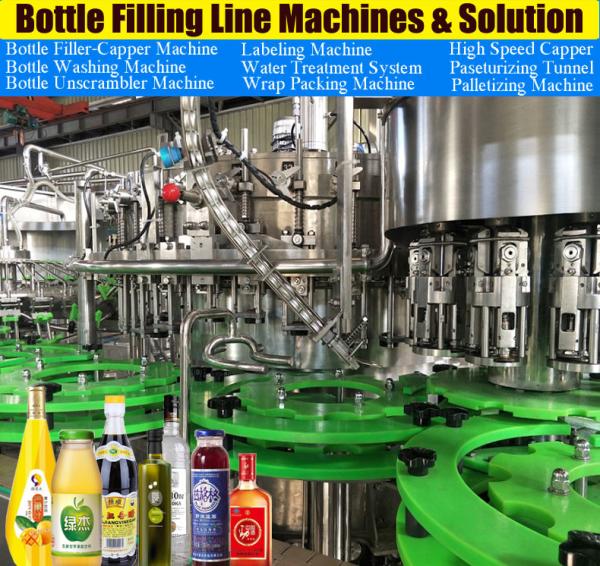

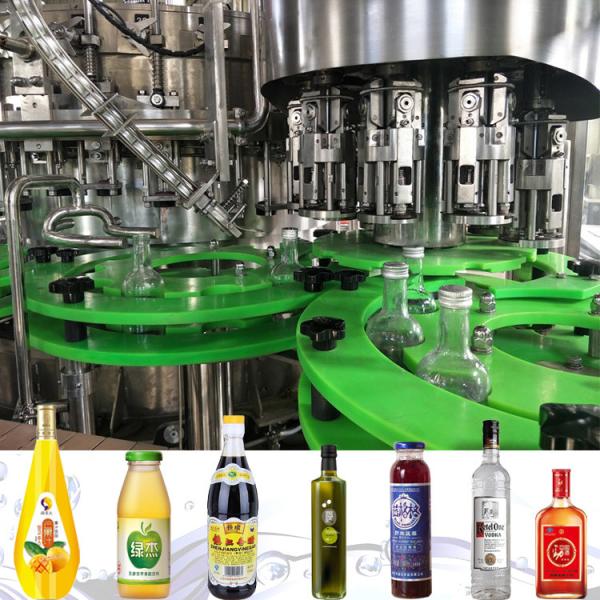

SUS304 Full Automatic 12000-14000BPH Ketchup Filling Machine Glass bottle plastic Bottle ketchup filling machine

Full automatic ketchup bottle filling and capping machine is suitable for filling thick sauces with granules and high concentration in condiments, such as chili sauce, bean paste, peanut butter, sesame paste, jam, butter hot pot base, red oil hot pot base, etc.

According to the operation process can be divided into automatic filling machine and semi-automatic filling machine

Ketchup filling machine is a new product developed by introducing foreign advanced technology to meet the market demand. The machine adopts positive displacement plunger pump to perform filling, with high filling accuracy, long service life, high temperature resistance, acid and alkali resistance. It integrates machine, electricity and gas.

Working principle:

The full automatic ketchup bottle filling and capping machine is a pneumatic plunger type quantitative filling machine. The piston driven by the air cylinder draws the material in the hopper into the feeding pipe through the three-way rotary valve, and then the material is pushed out through the three-way rotary valve driven by the air cylinder, and the material enters the container from the filling nozzle; The filling volume is controlled by the stroke of the cylinder.

Mechanical feature:

The volumetric piston pump is used for filling, with high precision and wide range of dosage adjustment. It can adjust the loading capacity of all pump bodies as a whole, and can also slightly adjust a single pump body, which is fast and convenient.

Plunger pump filling system does not absorb drugs, has good chemical stability, high temperature resistance, corrosion resistance, wear resistance, long service life, and has unique advantages in filling some corrosive liquid medicine.

The low position liquid storage cylinder is adopted, so the whole machine is easy to clean and disinfect, and can be cleaned in place.

It is compact, reasonable in design and convenient in operation;

The pneumatic part adopts the pneumatic components of Taiwan AIRTAC, which has stable performance and low failure rate;

The whole machine is made of high-quality stainless steel, and the contact part is made of 304 / 316L stainless steel, which meets the requirements of GMP;

The filling nozzle is equipped with pneumatic anti dripping device, which can avoid wire drawing and dripping;

There are filling quantity adjusting handle and filling speed adjusting knob, which can adjust filling quantity and filling speed at will, with high filling precision;

It can be changed to full pneumatic explosion-proof type according to the environmental requirements, with no live operation and more safety.

Ketchup is a tomato paste like concentrated product, and is made from mature red tomato, which is made by crushing, beating, peeling and seed concentration, canned and sterilized.

The finished product is bright red sauce, with the unique flavor of tomato.

In addition to lycopene, there are B vitamins, dietary fiber, minerals, protein and natural pectin in tomato sauce. Compared with fresh tomatoes, the nutrients in tomato sauce are more easily absorbed by human body.

Purpose:

This filling machine is an automatic ketchup washing filling and capping machine. it adopt piston filling type,it could be applicable for all kinds of oil,fruit &vegetable sauce(with or without solid piece),granule drink quantify filling and capping . no bottles no filling and capping,PLC control system,easy operation.

Technical Data:
