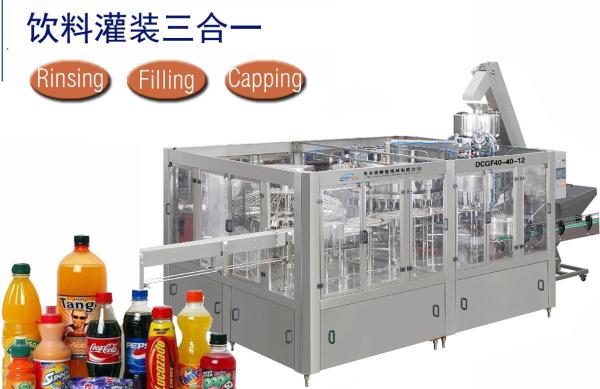

Description of bottle washing-filling-capping 3-in-1 beverage filling machine

The series drink filling Machine is used in production of PET bottle-packing carbonated beverage such as Coca-Cola, containing gas mineral, sprite, containing gas juice etc. The machine combines washing/filling/capping with complete automation, and the filling process adopted the micro-pressure technology, which makes filling prodess faster and more stable. The capacity can be from 2000 to 20000B/H.(washing filling capping)

In order to minimize the loss of CO2 in the filling process, a specific isobaric filling process must be used. The working principle is to connect the filling tank with the empty bottle, so that the CO2 in the filling tank enters the bottle because of the pressure difference to establish a equal pressure between filling tank and the empty bottles , and then open the filling valve starts filling automaticlly, and the bcarbonated drinks remain relatively stable after pouring into the bottle under the same pressure as in the filling tank, and the CO2 does not escape from the drink in large quantities.
1. The machine is mainly used in beverage filling operations.

2. The three functions of bottle washing, filling and capping are composed in one body of the machine.

3. The whole machine is automatic.

4. The machine is used to fill carbonated drink in bottles made of polyester and plastic.

5. The machine is convenient to adjust the machine to fill various types of bottles.

6. The filling operation is faster and more stable due to the isobar filling operation of the new type is adopted.

7. The output and benefit of the machine is higher than the machines of the same specification.

8. It is convenient to operate with higher automation due to every parts of the machine is inspected to run with photo electrical detector.

9. The machine is idea-preferred equipment for beverage maker.

washing filling capping monoblock machine/filling machinery/beverage filling machine/gas containing drink washing filling capping three-in-one unit rinser filler capper 3-in-1 monoblock

Specifications:

Automatic Drink Filling Machine for Carbonated Soft Beverage--Main data

Competitive Advantage of Drink Filling Machine for Carbonated beverage

1.Air Conveyor connects with bottle-in starwheels. Bottle neck holding transferred.

2.Clamp transferring technology varied bottle types.

3.With little abrasion. Stable Transferring. Easy to change bottles.

4.With ring type pressure bearing hydraulic cylinder.

5.With high filling speed and exact liquid level.

6.Excellent Stainless Steel. Electric Components are of world known brand. All achieve national sanitary standard.

7.The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain's height to different bottles. 8.Easy to operate and maintain.

8.PLC and transducers and othe main electric parts are of world famous brands, such as Siemens, MITSUBISHI etc.
