1. GF Series

2. filling speed : 5000-7000bph @500ml

3. Suitable bottle size :250ml-1500ml

Description

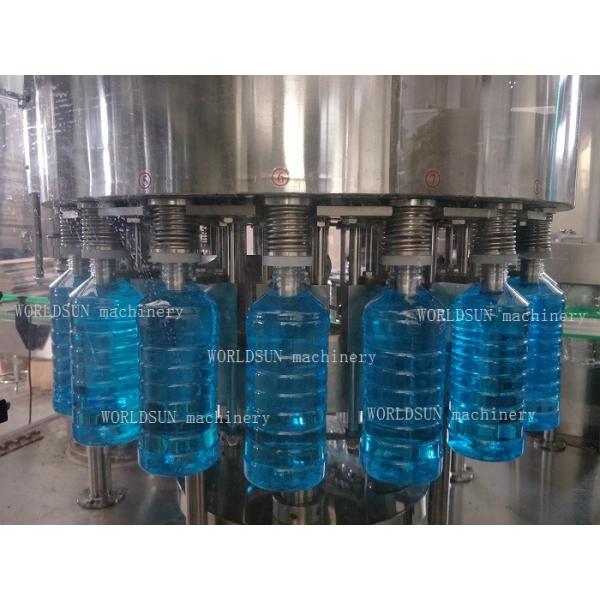

Automatic Windshield washer fluid, windshield wiper fluid, screen wash, washer fluid etc liquid Filling Machine CGF Series

The machine is based on the introduction of foreign technology,combined with our years of manufacturing experience .the machine

combines Washing,filling and capping ,with scientific and rationaldesign,beautiful shape.it is easy in maintenance ,with automation.this

machine is mainly used for water filling .

1. Rinsing empty bottle, filling, and capping functions are integrated in one system, fully automatic synchronized working.

2. Bottle travels on neck to neck from in-feed till out-feed resulting scratch free movement of bottle.

3. Pressure filling nozzles deliver fast, efficient, and accurate dispensing with minimal dripping and leakage.

4. No Bottle No Filling, no caps no capping, no caps auto stops

5. When bottle jam auto stop, machine accident auto stop

6. Open the window when machine running, machine auto paused

7. Heavy duty stainless steel filling pump & rinsing pump

8. Food grade 316L or 304stainless steel contact parts, smooth & fine polish,no dead angles

9. Adopted first class component from Mitsubishi, OMRON, SIEMEN, With PLC, invertors control, touch screen, sensor, switch and other electric parts.

10. Machine and cable arrangement designed according to CE standard and all safety standard

The filling machine is suitable for filling all kinds of windshield washer fluid, mineral water, purified water, wine and other food industries. The pure water filling machine is one of the main equipments in the production of the pure water plant. It is developed on the basis of foreign advanced technology and according to the requirements of the pure water and other drinks filling process.

Working process:

The bottles are delivered through the air duct, and then to the bottle punching machine of the three in one machine through the star wheel. The rotary table of the bottle punching machine is equipped with a bottle clamp, which clamps the bottle mouth and turns 180 degrees along a guide rail °, Make the bottle mouth downward. In the specific area of the bottle washing machine, the bottle washing water is sprayed from the nozzle of the bottle washing clamp to wash the inner wall of the bottle. After being washed and drained, the bottle is turned over 180 times along the guide rail under the bottle clamp °, Make the bottle mouth up. The washed bottles are led out by the bottle washing machine through the star wheel and then transferred to the filling machine. The bottle entering the filling machine is stuck by the bottle neck supporting plate and rises under the action of the cam, and then the filling valve is pushed open by the bottle mouth. Gravity filling is adopted. After the filling valve is opened, the material completes the filling process through the filling valve. After filling, the bottle mouth drops away from the filling valve, and the bottle enters the capping machine through the transition wheel of the bottleneck. The anti rotation knife on the capping machine blocks the bottle neck to keep the bottle upright and prevent rotation. The capping head keeps revolution and rotation on the capping machine. Under the action of cam, the capping head grabs, covers, spins and takes off the capping head to complete the whole capping process. The finished product bottle is transferred from the capping machine to the bottle delivery chain by the bottle delivery wheel, and the three in one machine is transferred by the delivery chain.
