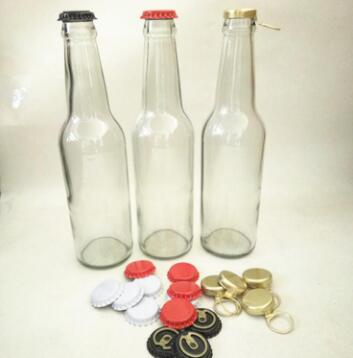

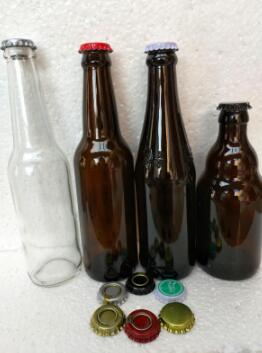

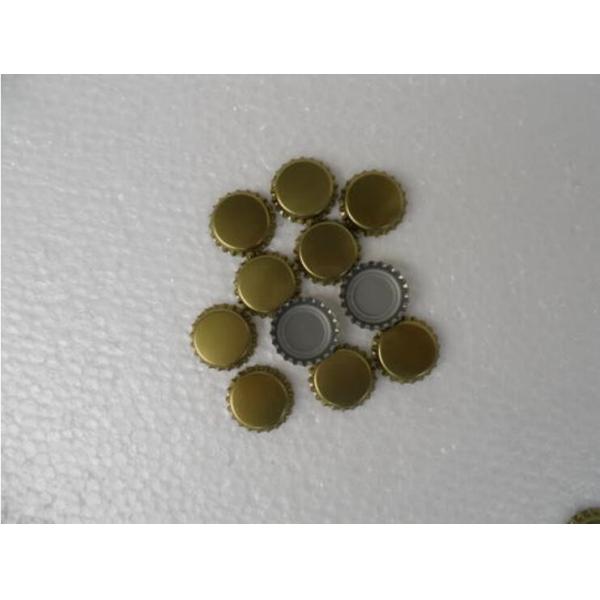

Crown cover belongs to stamping type tin plate cover. Generally, according to the actual needs, the tin plate (spte) or chrome plated iron (TFs) with thickness of 0.23mm, hardness of T3 or T4, tin layer of 1.1 ° / 2.8g/m2 are selected. Tinplate material should meet Mr standard, imported iron should meet Japanese jisg3303 standard; it should have certain strength and hardness, but also have certain impact resistance.

Crown cap Capping machine is specialized in sealing glass bottles and crown caps, such as beer, soda, sparkling wine, juice drinks, health drinks, sauce, vinegar and wine making industries.

The crown capping machine has the functions of automatic capping, vibration capping, automatic sealing, etc. it can produce constant speed or speed regulating equipment according to the requirements of customers.

The whole set is made of high strength stainless steel, stainless steel plate, precision argon arc welding, small deformation and beautiful welding lines.

Simple operation, convenient maintenance, high automation intensity, reduce labor, reduce costs, production standards, is the ideal choice for the food industry.

The machine needs to be connected with air source to ensure sufficient air supply, so that the cap can be easily blown to the bottle mouth for capping.

Our company can design and manufacture according to different types of bottles to meet the requirements of customers; different types of bottles can share one equipment by changing the accessories, which is simple and convenient.

Workflow:

When a bottle is loaded manually, it is sent to the capping machine through conveying. The capping machine has the functions of automatic capping, capping and capping. By induction, when a bottle enters the capping station, the machine will automatically drop the capping and perform capping (no bottle, no capping). So far, the capping action of a bottle has been completed.




Quick Detail:
automatic capping machine with cap soting system
1. Full Automatic crown cap capping machine
2. easy change over for different bottle size
3. pick and place technology
4. over-load protection system

Description:

This automatic high speed bottle crown cap capping machine is developed on the basis of advinced technology. The structure is compact and the production is stable. The machine has the function of overload-protection and the bottle and machine will not be broken even if the wrong operation. The capping speed can be adjusted to control the production capacity.
The cap unscrambling system adopts crawler-type elevating method, it arrange caps according to the cap center of gravity, no fault cap output and no cap damage,A slideway connect the cap unscrambler and the capping machine, and it equipped with 1 sensors on the slideway, if there is no caps feed to capping machine, the sensor will send information to PLC, the machine will stop and alarming.




Applications:

This automatic bottle capping machine bottle tightener is used for plastic cap screw capping process.
it Suitable for PET bottles and glass bottles.

Specifications:

Competitive Advantage:

Carbon steel base mounted on adjustable floor levellers for easy alignment

Bearing frame and all surface components manufactured in SUS 304 stainless steel

Manual height adjustment via column

Manual and independent speed variation ,

Caps in chute photocell, machine will not work if there are no caps present on chute

Magnetic clutch capping head for screw caps

Stainless steel electrical control panel with 24 volt auxiliary commands

Equipped with Omron material on control panel

Automatic cap feeder, chute and applicating head

Safety guarding with interlock devices,Overload protection system

plastic or aluminium screw cap

With screw bottle feeding system

Alarm warning light and acoustics

the capping machine with Photoelectricity sensor system .

the machine with automatic cap unscrambler system
