8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
Specifications
Brand Name :
Worldsun
Model Number :
XF
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
By order
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 Sets per month
Delivery Time :
1 month
Packaging Details :
Wooden box
Voltage :
By order
Application :
Beverage, Food
Material :
Stainless steel
Automatic grade :
Automatic
Type :
Capping Machine
Product name :
Automatic mayonnaise capping machine
Capping speed :
2000-8000bph
Condition :
New
Packaging type :
Glass jar
Driven type :
Electric
After-sales service provided :
Engineers available to service machinery overseas, Video technical support, Online support
Weight :
2000kg
Dimension(l*w*h) :
1060*750*1700mm
Power :
3kw
Warranty :
one year
Description
Automatic Mayonnaise Glass Jar Capping Machine Metel Twist Off Cap Capping Machine
Automatic mayonnaise glass jar capping machine
The automatic capping machine for mayonnaise is mainly used for vacuum capping of three, four and six iron caps of glass wide mouth bottles. Two belts with different speeds are used to press the caps. Because of the different speeds of the two belts, the caps are rubbed and tightened to achieve the purpose of capping. Before automatic capping, blow steam to the bottle mouth to heat it, blow off the cold air, replace it with high-temperature steam, and immediately screw the bottle cap. According to the principle of thermal expansion and cold contraction, when the steam cools down, the vacuum in the bottle will naturally form, achieving the purpose of vacuum capping.
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine
8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine

Quick Detail:

automatic capping machine with cap soting system

1. Full Automatic lug cap screw capping machine

2. easy change over for different bottle size

3. pick and place technology

4. over-load protection system

8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine

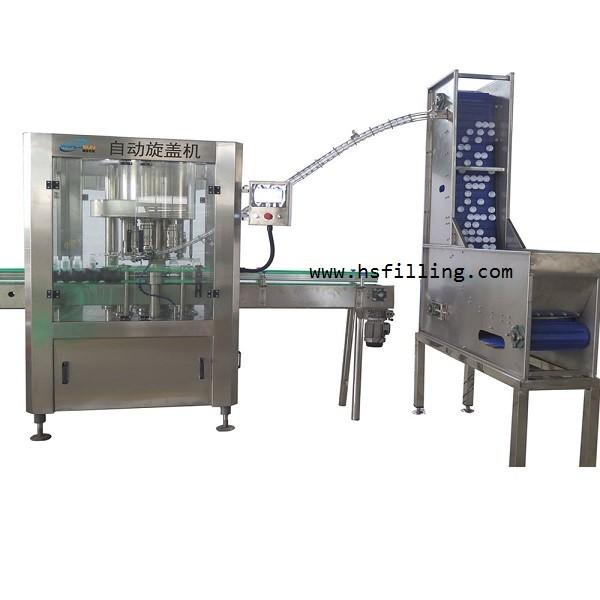

Description:

This automatic high speed bottle capping machine is developed on the basis of advinced technology. The structure is compact and the production is stable. The machine has the function of overload-protection and the bottle and machine will not be broken even if the wrong operation. The capping speed can be adjusted to control the production capacity.

The cap unscrambling system adopts crawler-type elevating method, it arrange caps according to the cap center of gravity, no fault cap output and no cap damage,A slideway connect the cap unscrambler and the capping machine, and it equipped with 1 sensors on the slideway, if there is no caps feed to capping machine, the sensor will send information to PLC, the machine will stop and alarming.

Applications:

This automatic bottle capping machine bottle tightener is used for plastic cap screw capping process.

it Suitable for PET bottles and glass bottles.

Specifications:

Model ZGF-6
Applied bottle range 50-2000ml
Applied cap size 12-70mm
rejects of capping ≤0.3%
Power Supply 3800V 50HZ
Power Consumption <=2KW
Pressure 0.4-0.6Mpa
Speed Control Frequency Convertion
Single machine noise <=70Db
Weight About 950kg
Dimension(LxWxH) 1200x1000x1800(mm)
Production Capacity 5000-7200 bottles/h


8000bph Automatic Capping Machine For Mayonnaise Glass Jar mayo filling capping machine

Competitive Advantage:

Carbon steel base mounted on adjustable floor levellers for easy alignment

Bearing frame and all surface components manufactured in SUS 304 stainless steel

Manual height adjustment via column

Manual and independent speed variation ,

Caps in chute photocell, machine will not work if there are no caps present on chute

Magnetic clutch capping head for screw caps

Stainless steel electrical control panel with 24 volt auxiliary commands

Equipped with Omron material on control panel

Automatic cap feeder, chute and applicating head

Safety guarding with interlock devices,Overload protection system

plastic or aluminium screw cap

With screw bottle feeding system

Alarm warning light and acoustics

the capping machine with Photoelectricity sensor system .

the machine with automatic cap unscrambler system
