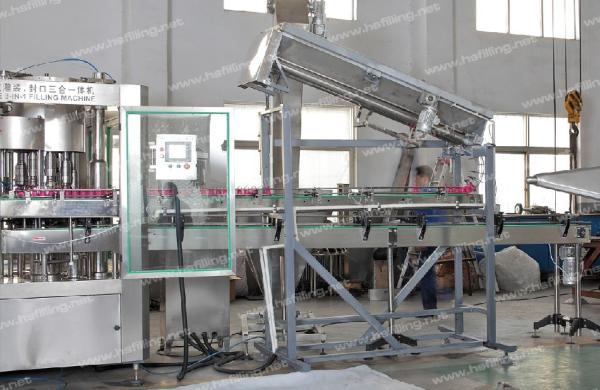

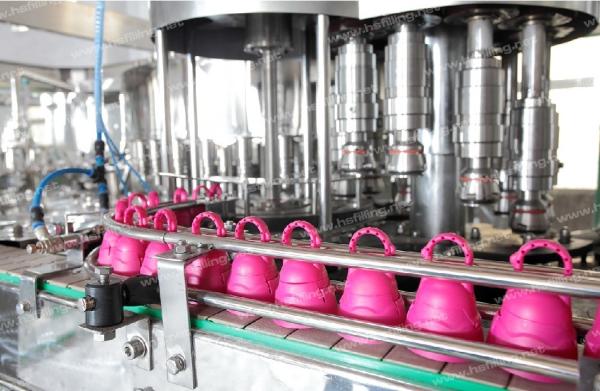

automatic Special shaped bottle cap bottle filling capping machine

PET bottle juice beverage machine adopts bottleneck drive technology to realize automatic bottle flushing, filling, capping and other processes

Juice beverage machinery

High degree of automation; equipped with perfect temperature control system and reflux system, with perfect filling equipment automatic cleaning system and control program

The hot filling machine of juice beverage production line integrates washing, filling and sealing, which is suitable for all kinds of juice beverage filling production lines, such as blueberry juice filling production line, kiwifruit juice filling production line, pear juice filling production line, grape juice filling production line, apple juice filling production line and orange juice filling production line. At the same time, it can be used for pure water filling production line, apple juice filling production line and orange juice filling production line by replacing a small number of parts Mineral water filling production line. The output is 2000-24000 bottles / hour, which can be selected by users. Juice beverage equipment adopts advanced micro negative pressure gravity filling principle, which is fast, stable and accurate. It is equipped with perfect material return system, which can also realize independent gas return when returning, without contact with materials, reducing secondary pollution and oxidation of materials.

The juice beverage production line can meet the technical requirements of hot filling below 95 ℃, no sanitary dead angle is found in the filling valve and material inlet and outlet pipeline, CIP self-cleaning interface is provided, and RO water flushing device is set at the bottle mouth before the closure to ensure that the bottle mouth is free of mildew. The magnetic torque type screw head is used to realize the function of catching and screwing the cover. The screw cap torque is stepless adjustable, and has the function of constant force moment rotating plastic cover. The juice beverage machinery adopts advanced technology such as human-machine interface touch screen control, PLC computer program control, frequency converter control, etc., which has the functions of automatic control of cover supply system, automatic detection of filling temperature, high temperature alarm of materials, low temperature shutdown and automatic return, no bottle without capping, bottle waiting, and cover failure.

Main performance of the equipment:

1. Air feeding device is adopted for bottle feeding, and bottle neck clamping mode is adopted, so the bottle feeding speed is fast and the bottle will not deform;

2. The bottle mouth of small fruit juice beverage production line adopts advanced bottle neck clamping technology to avoid contact with screw mouth, which is more hygienic. Bottle conveying adopts bottle neck clamping technology, changing bottle shape does not need to adjust height, only needs to change the guard plate related to bottle diameter;

3. The valve lifting technology is adopted for filling, and the new micro pressure filling principle is adopted for filling valve, so the quantity is accurate;

4. The screw cap adopts the screw cap technology which is introduced from France. The cover adjuster is installed in low position and the cover is sent horizontally;

5. The host PLC and frequency converter of juice beverage production line are all famous brands, such as Mitsubishi, Omron, etc;

6. The machine has compact structure, perfect control system, convenient operation and high degree of automation;

Washing head

1. The air conveying device directly connected with the bottle dial enters the bottle channel

2. All 304 / 316 stainless steel cleaning heads are designed with water injection to save water and make them cleaner

3. 304 / 316 stainless steel holder with plastic pad to minimize bottle collision during cleaning

4. 304 / 316 stainless steel cleaning pump makes the machine more durable

Filling head

1.304/316 stainless steel high precision filling nozzle

2. The filling volume can be adjusted, and the liquid level is the same after filling

3. All 304 / 316 stainless steel contact parts and liquid tank, fine polishing, no dead angle, easy to clean

4. 304 / 316 stainless steel filling pump 5. Efficient spray and thorough flushing, saving water for flushing.

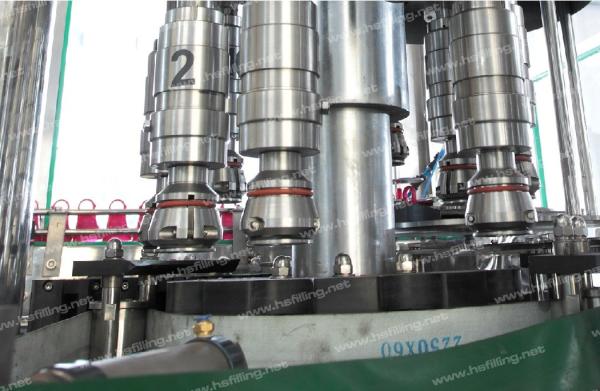

Capping head

1. Placement and capping system, electromagnetic capping head, with discharging function, to ensure the minimum bottle collision in the capping process

2. All 304 / 316 stainless steel structures

3. No bottle, no cap

4. Automatic stop in case of bottle shortage

5. The capping effect is stable and reliable, and the unqualified rate is less than or equal to 0.2%

Specification:

Quick Detail:
1, bottle size:200ml-1500ml
2, capacity:10000BPH
3, certification:ISO CE

Description:

1. Direct connection technology is used between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor. It is easy to change the size of bottles.

2. fruit Juice filling machine is a fully automatic and multi-functions combined machine, which integrats bottle rinser, filler and screw capper in one unit. It is suitable for filling non carbonated beverage, such as fruit juice(with or without fruit pieces), dairy drink, mineral water, pure water and tea.

3. The filing valves and all other material touched parts is made of 316L stainless steel.

4. automatic filling temperature control system for hot filling purpose.

5. Neck-hanging technology is applied in bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper to change the size of bottles easily, without adjusting the equipment height. Only arch board and star wheel such little nylon parts need to be changed.

6. The machine filling system is widely used in liquid filling process, hot filling or vacuum filling purpose.

Application:

This machine is used for all kinds of fruit juice filling,

( apple juice filling machine,orange juice filling machine,Aloe juice filling machine,Coconut juice filling machine,fresh juice filling machine,

Passion fruit juice filling machine,Passion fruit seeds juice filling machine,glass bottle juice filling machine,pineapple juice filling machine,

kiwi fruit juice filling machine,grape juice filling machine,pure juice filling machine,fruit juice filling and capping machine,fruit juice filler-capper

Competitive Advantage:

1. High-speed large flow valve filling valve, filling fast, filling accurate and no liquid lose.
2. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
3. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Siemens,Schneider, OMRON.
