SS316 Nmrv40 Worm Gear Speed Reducer Gearbox For Sewage Environments
SS316 Nmrv40 Worm Gear Speed Reducer Gearbox For Sewage Environments
Specifications
Brand Name :
RIO
Model Number :
NMRV040
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Deliberation
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
7-15 work days
Packaging Details :
Carton packaging
Name :
NMRV040
Box technology :
Silica sol casting
Worm material :
20CrMn
Worm technology :
carburization
Worm hardness :
HRC 58-62
Worm wheel material :
Stainless steel wheel core wrapped with 10-1 tin bronze
Input speed :
1400 turn
Defects Liability Period :
12 months
Case shell material :
316 stainless steel
Type :
Nrv Gearbox
Keyword :
Nmrv Gearbox
Description

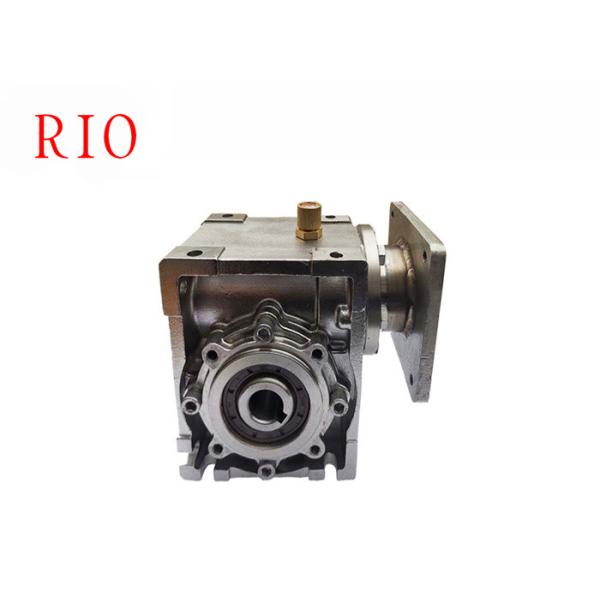

NMRV040 316 Stainless Steel Worm Gear Reducer Gearbox Can Be Used For Sea Water And Salt Spray Prevention

NMRV040 Product Description

NMRV040 is a new product developed by our company comprehensively in overseas and domestic markets and can be used in special environments. It can completely replace the existing NMRV040, go to those working environments with high material requirements, and work underwater, work in sewage environments, heavy oil, long-term exposure to buildings, and so on.

NMRV040 Feature

The inside of NMRV040 is made of stainless steel wheel core covered with copper worm gear and worm. The box body is made of 316 stainless steel. The input flange and output flange are optional to achieve multi-purpose conversion. The structure is exquisite and durable.

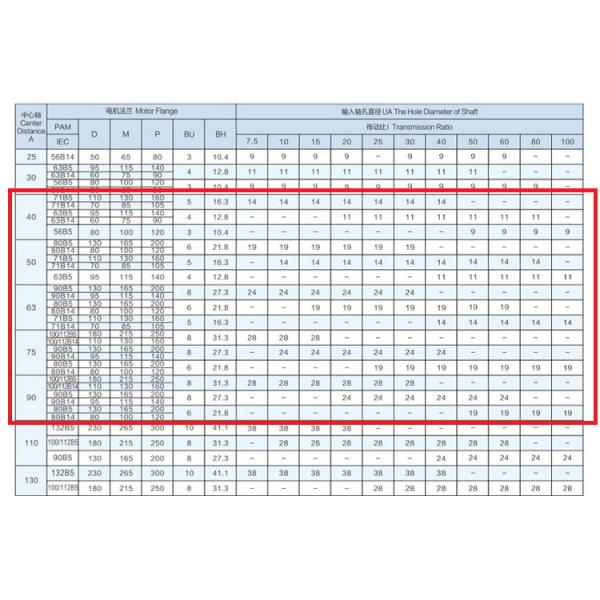

NMRV040 Parameter

SS316 Nmrv40 Worm Gear Speed Reducer Gearbox For Sewage Environments

Stainless Steel VF Series Worm Gear Reducer
Model Speed Ratio Enter Hole size(MM) Output Hole size(MM) Shell Material Worm Gear Material Worm Material Output Shaft Material Input Flange
NMRV30 5/7.5/10/15/20
25/30/40/50/60/80		 9 11 14 316 Stainless steel wheel
core covered with copper		 20CrMn 316 63B14
NMRV40 5/7.5/10/15/20/25
30/40/50/60/80/100		 9 11 14 18 316 Stainless steel wheel
core covered with copper		 20CrMn 316 56B5/63B5/63B14
71B5/71B14
NMRV50 5/7.5/10/15/20/25
30/40/50/60/70/80/100		 11 14 19 25 316 Stainless steel wheel
core covered with copper		 20CrMn 316 63B5/71B5/71B14
80B5/80B14
NMRV63 5/7.5/10/15/20/25
30/40/50/60/80/100		 14 19 24 25 316 Stainless steel wheel
core covered with copper		 20CrMn 316 71B5/80B5/80B14
90B5/90B14
Product Use: Environmental protection, Underwater, Robots, Landscape, Fountain equipment, Food, Ceramics, Chemicals, Packaging,
Printing and Dyeing, Wood processing, Glass.

Input Flange(MM)
Model P M N D Model P M N D Model P M N D
56B5 120 100 80 9 71B5 160 130 110 14 80B14 120 100 80 19
63B5 140 115 95 11 71B14 105 85 70 14 90B5 200 165 130 24
63B14 90 75 60 11 80B5 200 165 130 19 90B14 140 115 95 24

NMRV040 Application Scope

1) Underwater working machinery

2) Marine machinery

3) Food machinery

4) Automatic machinery

NMRV040 Advantage

1) Stainless steel is more durable than aluminum alloy

2) Stainless steel is more beautiful than aluminum alloy

3) Stainless steel is superior to aluminum alloy

4) Stainless steel is more widely used than aluminum alloy

SS316 Nmrv40 Worm Gear Speed Reducer Gearbox For Sewage EnvironmentsSS316 Nmrv40 Worm Gear Speed Reducer Gearbox For Sewage Environments
