SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
SS304 Hardness 58-62 HRC Double Reduction Worm Gear Speed Reducer
Specifications
Brand Name :
RIO
Model Number :
VF040-50
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Deliberation
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
7-15 work days
Packaging Details :
Carton packaging
Name :
SSVF40-50
Type :
Double Reduction Gear Reducer
Keyword :
Double Reduction Worm Gearbox
Box technology :
Silica sol casting
Worm material :
20CrMn
Worm technology :
carburization
Worm hardness :
HRC 58-62
Worm wheel material :
Stainless steel wheel core wrapped with 10-1 tin bronze
Input speed :
1400 turn
Defects Liability Period :
12 months
Case shell material :
304 stainless steel
Description

304 Stainless Steel Worm Gear Reducer Gearbox Dedicated For Waterscape Projects

VF040-50 Product Description

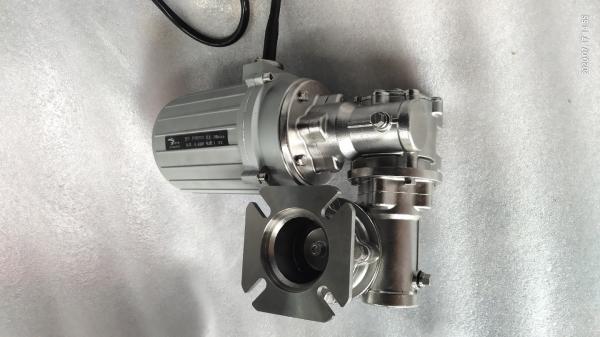

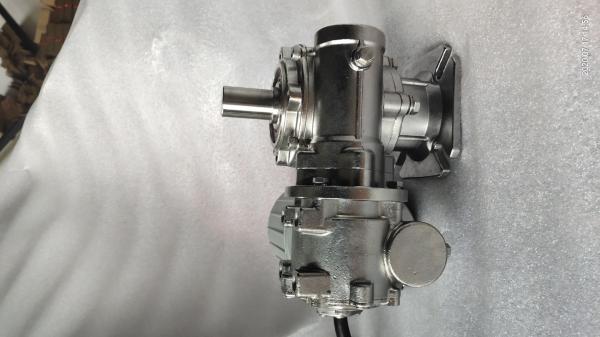

The VF40-50 double worm gear reducer is a product assembled by our company for waterscape equipment customers. It uses the VF40 reducer matching connecting shaft and connecting flange, and the VF50 reducer is equipped with an output shaft to form this underwater waterscape Reducer.

VF040-50 Feature

VF40-50 double worm gear reducer, the box is made of 304 stainless steel, and the inside is composed of worm gear (covered by stainless steel wheel core) and worm (20CrMn). The double worm gear has a wide range of speed ratios and large output torque, which can realize customers' low speed and high speed. Torque requirements.

VF040-50 Parameter

Stainless Steel VF Series Worm Gear Reducer
Model Speed Ratio Enter Hole size(MM) Output Hole size(MM) Shell Material Worm Gear Material Worm Material Output Shaft Material Input Flange
VF30 5/7.5/10/15/20
25/30/40/50/60/80		 9 11 14 304 Stainless steel wheel
core covered with copper		 20CrMn 304 63B14
VF40 5/7.5/10/15/20/25
30/40/50/60/80/100		 9 11 14 18 304 Stainless steel wheel
core covered with copper		 20CrMn 304 56B5/63B5/63B14
71B5/71B14
VF50 5/7.5/10/15/20/25
30/40/50/60/70/80/100		 11 14 19 25 304 Stainless steel wheel
core covered with copper		 20CrMn 304 63B5/71B5/71B14
80B5/80B14
VF63 5/7.5/10/15/20/25
30/40/50/60/80/100		 14 19 24 25 304 Stainless steel wheel
core covered with copper		 20CrMn 304 71B5/80B5/80B14
90B5/90B14
Product Use: Environmental protection, Underwater, Robots, Landscape, Fountain equipment, Food, Ceramics, Chemicals, Packaging,
Printing and Dyeing, Wood processing, Glass.

Input Flange(MM)
Model P M N D Model P M N D Model P M N D
56B5 120 100 80 9 71B5 160 130 110 14 80B14 120 100 80 19
63B5 140 115 95 11 71B14 105 85 70 14 90B5 200 165 130 24
63B14 90 75 60 11 80B5 200 165 130 19 90B14 140 115 95 24

VF040-50 Application Scope

1) Underwater working machinery

2) Marine machinery

3) Food machinery

4) Automatic machinery

VF040-50 Advantage

1) Stainless steel is more durable than aluminum alloy

2) Stainless steel is more beautiful than aluminum alloy

3) Stainless steel is superior to aluminum alloy

4) Stainless steel is more widely used than aluminum alloy
