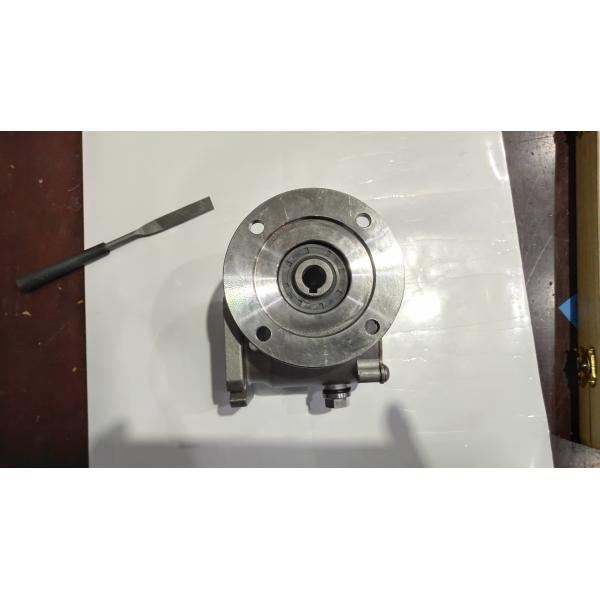

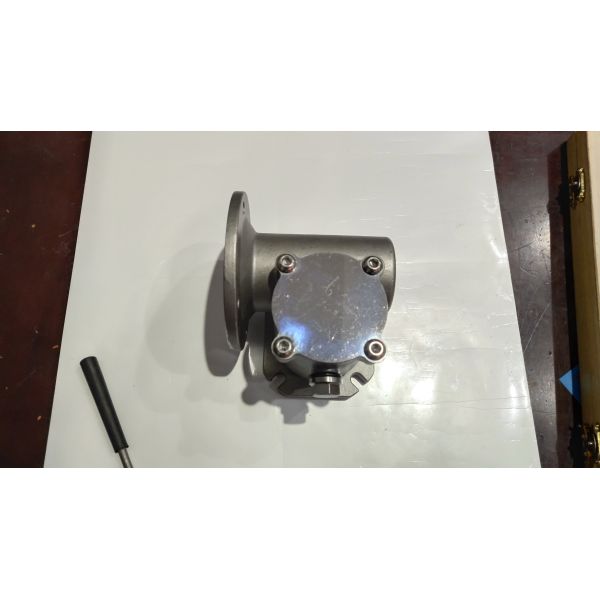

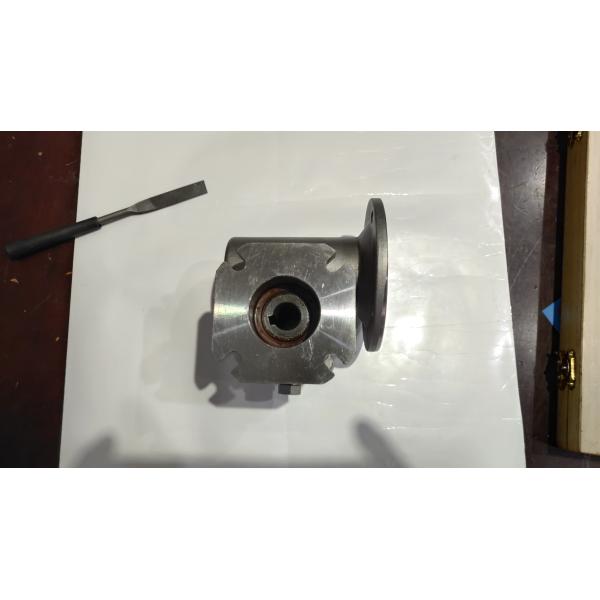

VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
VF30 304 Stainless Steel Worm Gear Reducers
Specifications
Brand Name :
RIO
Model Number :
VF030
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Deliberation
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
7-15 work days
Packaging Details :
Carton packaging
Case shell material :
304 stainless steel
Box technology :
Silica sol casting
Worm material :
20CrMn
Worm technology :
carburization
Worm hardness :
HRC 58-62
Worm wheel material :
Stainless steel wheel core wrapped with 10-1 tin bronze
Input speed :
1400 turn
Defects Liability Period :
12 months
Type :
Worm Gear Gearbox
Keyword :
Worm Gear Reduction Gearbox
Description

VF030 304 stainless steel worm gear reducer reducer gearbox can be launched

VF030 Product Description

Vf030 is a stainless steel reducer tailored to customer requirements. According to the customer's usage, we put the input flange, box body and output flange together, which not only reduces the assembly workload, but also reduces the risk of oil leakage. So far, the customer is very satisfied.

VF030 Feature

The Vf030 shell is made of 304 stainless steel, small and round in shape and easy to clean. The inside is composed of a worm wheel (covered by a stainless steel wheel core) and a worm (20CrMn), with smooth transmission and low noise.

VF030 Parameter

Stainless Steel VF Series Worm Gear Reducer
Model Speed Ratio Enter Hole size(MM) Output Hole size(MM) Shell Material Worm Gear Material Worm Material Output Shaft Material Input Flange
VF30 5/7.5/10/15/20
25/30/40/50/60/80		 9 11 14 304 Stainless steel wheel
core covered with copper		 20CrMn 304 63B14
VF40 5/7.5/10/15/20/25
30/40/50/60/80/100		 9 11 14 18 304 Stainless steel wheel
core covered with copper		 20CrMn 304 56B5/63B5/63B14
71B5/71B14
VF50 5/7.5/10/15/20/25
30/40/50/60/70/80/100		 11 14 19 25 304 Stainless steel wheel
core covered with copper		 20CrMn 304 63B5/71B5/71B14
80B5/80B14
VF63 5/7.5/10/15/20/25
30/40/50/60/80/100		 14 19 24 25 304 Stainless steel wheel
core covered with copper		 20CrMn 304 71B5/80B5/80B14
90B5/90B14
Product Use: Environmental protection, Underwater, Robots, Landscape, Fountain equipment, Food, Ceramics, Chemicals, Packaging,
Printing and Dyeing, Wood processing, Glass.

Input Flange(MM)
Model P M N D Model P M N D Model P M N D
56B5 120 100 80 9 71B5 160 130 110 14 80B14 120 100 80 19
63B5 140 115 95 11 71B14 105 85 70 14 90B5 200 165 130 24
63B14 90 75 60 11 80B5 200 165 130 19 90B14 140 115 95 24

VF030 Application Scope

1) Underwater working machinery

2) Marine machinery

3) Food machinery

4) Automatic machinery

VF030 Advantage

1) Stainless steel is more durable than aluminum alloy

2) Stainless steel is more beautiful than aluminum alloy

3) Stainless steel is superior to aluminum alloy

4) Stainless steel is more widely used than aluminum alloy

VF30 304 Stainless Steel Worm Gear ReducersVF30 304 Stainless Steel Worm Gear ReducersVF30 304 Stainless Steel Worm Gear ReducersVF30 304 Stainless Steel Worm Gear Reducers

VF30 304 Stainless Steel Worm Gear Reducers
