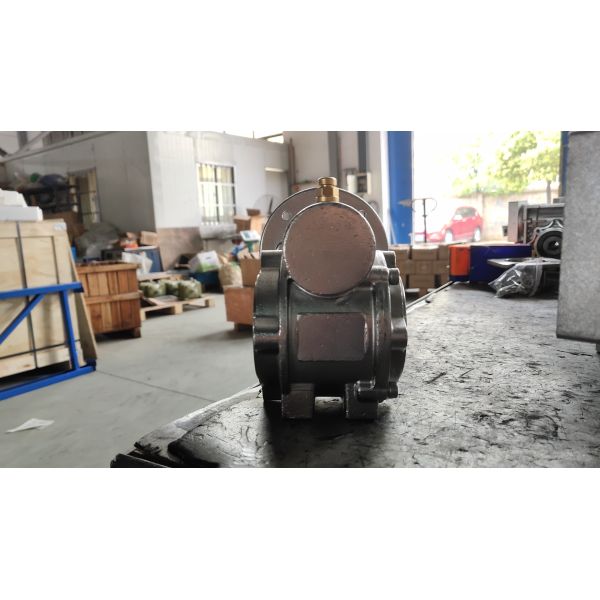

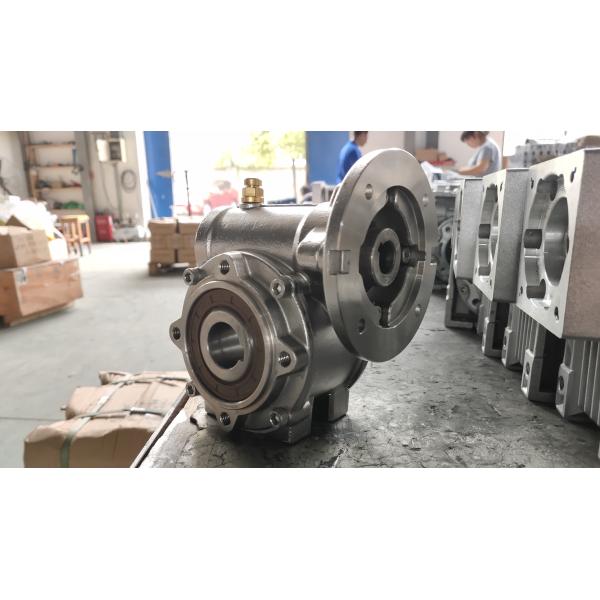

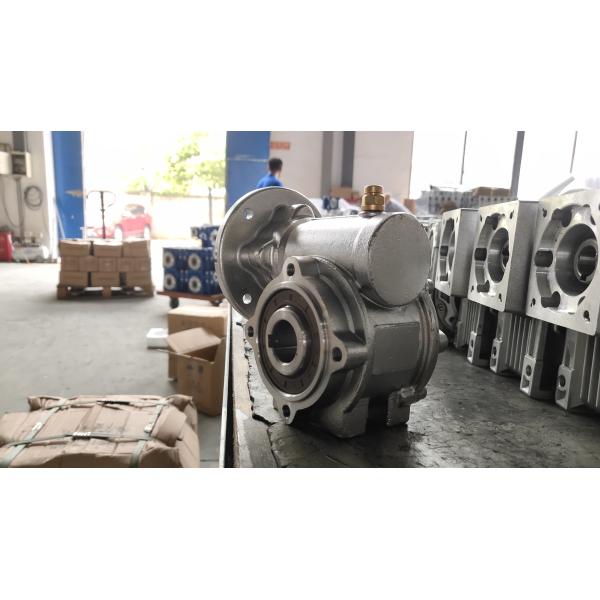

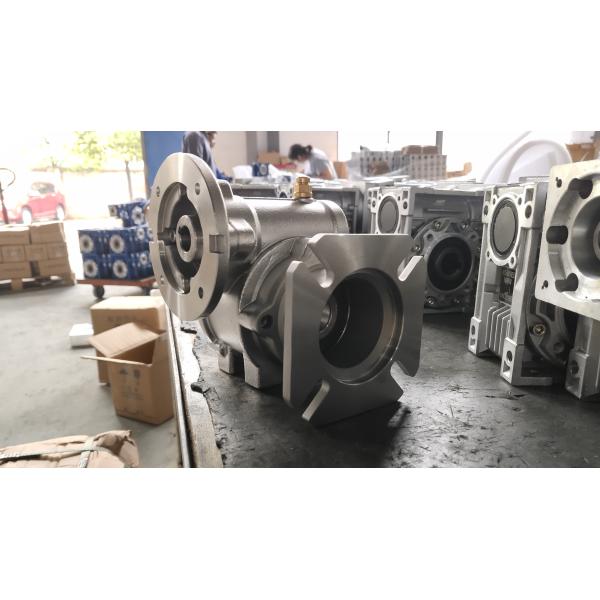

Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Ss304 VF050 Single Speed Reduction Gearbox
Specifications
Brand Name :
RIO
Model Number :
VF050
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
Deliberation
Payment Terms :
T/T
Supply Ability :
1000 pcs
Delivery Time :
7-15 work days
Packaging Details :
Carton packaging
Name :
SSVF50
Box technology :
Silica sol casting
Worm material :
20CrMn
Worm technology :
carburization
Worm hardness :
HRC 58-62
Worm wheel material :
Stainless steel wheel core wrapped with 10-1 tin bronze
Input speed :
1400 turn
Defects Liability Period :
12 months
Case shell material :
304 stainless steel
Type :
Worm Gearbox Manufacturers
Keyword :
Worm Reducer
Description

Worm Gearbox VF050 304 stainless steel Single Reduction Gearbox

VF050 Product Description

The VF050 reducer is an upgraded version developed by our company on the basis of the VF040 reducer, according to the motor power, output torque, working environment and purpose used by the customer, which increases the range of customer choice and also increases the use of the product.

VF050 Feature

The overall structure of VF050 continues VF040, the box material is still made of 304 stainless steel, the overall size ratio is slightly larger, and the installation size is also designed in accordance with the standard NMRV050, with strong versatility, compact structure and long service life.

VF050 Parameter

Stainless Steel VF Series Worm Gear Reducer
Model Speed Ratio Enter Hole size(MM) Output Hole size(MM) Shell Material Worm Gear Material Worm Material Output Shaft Material Input Flange
VF30 5/7.5/10/15/20
25/30/40/50/60/80		 9 11 14 304 Stainless steel wheel
core covered with copper		 20CrMn 304 63B14
VF40 5/7.5/10/15/20/25
30/40/50/60/80/100		 9 11 14 18 304 Stainless steel wheel
core covered with copper		 20CrMn 304 56B5/63B5/63B14
71B5/71B14
VF50 5/7.5/10/15/20/25
30/40/50/60/70/80/100		 11 14 19 25 304 Stainless steel wheel
core covered with copper		 20CrMn 304 63B5/71B5/71B14
80B5/80B14
VF63 5/7.5/10/15/20/25
30/40/50/60/80/100		 14 19 24 25 304 Stainless steel wheel
core covered with copper		 20CrMn 304 71B5/80B5/80B14
90B5/90B14
Product Use: Environmental protection, Underwater, Robots, Landscape, Fountain equipment, Food, Ceramics, Chemicals, Packaging,
Printing and Dyeing, Wood processing, Glass.

Input Flange(MM)
Model P M N D Model P M N D Model P M N D
56B5 120 100 80 9 71B5 160 130 110 14 80B14 120 100 80 19
63B5 140 115 95 11 71B14 105 85 70 14 90B5 200 165 130 24
63B14 90 75 60 11 80B5 200 165 130 19 90B14 140 115 95 24

VF050 Application Scope

1) Underwater working machinery

2) Marine machinery

3) Food machinery

4) Automatic machinery

VF050 Advantage

1) Stainless steel is more durable than aluminum alloy

2) Stainless steel is more beautiful than aluminum alloy

3) Stainless steel is superior to aluminum alloy

4) Stainless steel is more widely used than aluminum alloy

Ss304 VF050 Single Speed Reduction GearboxSs304 VF050 Single Speed Reduction GearboxSs304 VF050 Single Speed Reduction GearboxSs304 VF050 Single Speed Reduction Gearbox
