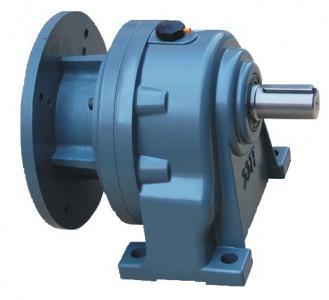

GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
GV GH GHD GVD GHM GVM Vertical Horizontal Single Phase Three Phase
Specifications
Brand Name :
JIG
Model Number :
GV/GH/GHD/GVD/GHM/GVM
Place of Origin :
Shenzhen, China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T
Power :
0.06 ~ 15kw
Speed ratio :
5 ~ 10000
Torque :
3 ~ 3500N.m
1-phase motor :
110v,50/60Hz
3-phase motor :
220-240/380-415V,50/60Hz
Description

Product classification: gear reducer


Power: 0.06 ~ 15kw


Speed ratio: 5 ~ 10000


Torque: 3 ~ 3500N.m

Installation method: any

Application fields: packaging machinery, electroplating equipment, ceramic equipment, printing equipment, plastic machinery, hydraulic equipment, cleaning equipment, etc


Features: light weight, large output torque, stable transmission, low noise, suitable for long-term continuous work in harsh environment

Features:
1.Basic stctrue:ZH(Horizonal),ZV(Vertical)
2.Output:100W,200W,400W,750W,1100W,1500W,2200W,3700W
3.Gear ratio:3,5,10...1800
4.Motor basic data:
S:3-phase motor,220-240/380-415V,50/60Hz
C:1-phase motor,220v,50-50Hz
E:1-phase motor,110v,50/60Hz
DV:Double Voltage motor,110/220V,50Hz/60Hz
Z:Light type duty
5.Brake unit: B: DC90V brake unit YB: With rsisase brake unit

Gear of small series:
1.The material of rotor is 40Cr,quench to HRC50-55 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
2.The material of shafe gear is 20CrMnTi,quench to HRC58-61 after rough rolling,two times hard cutting,the gear precision can arrive ISO class6-7.
3.The material of plate gear is 40Cr,quench to HRC48-51 after rough rolling,grind,the precision can arrive ISO class6-7.

Brake series:
1.High pressure-resistance,good insulation,insulation class F,can work in different kinds of ambient.
2.Long life,adopting abrasion-resistance lead-free,non asbestos friction plate,making sure the long life.
3.It"s selective of assembling hole diameter and easy assembling.
4.Multiple assembling way meets different customers.
