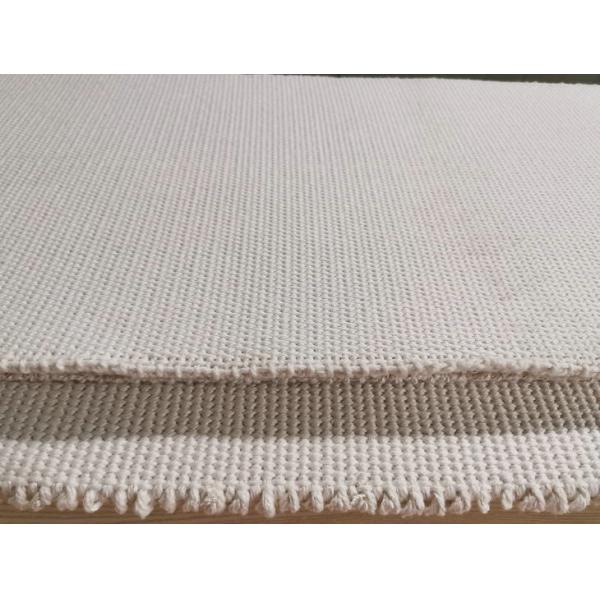

Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining
Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining
Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining
Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining
Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining
Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Woven Brake Lining with Resin
Product Color :
Brown
Application :
Anchor, crane, drilling machine
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
woven brake lining
Description

Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll woven brake lining

Supply Ability
Supply Ability:
20 Tons
Packaging & Delivery
Packaging Details
Standard Packing For Shipment
Port
Ningbo
Lead Time :
30days After Received Payment



1. Hot- Resistence
2. Long-Time Using
3. High Quality Raw
4,Wear-Resistant ,Low-Noise,Less-Dust
5,Safe And Reliabl.
6,Competitive Pricing And Quality Assured Products
7,Using Life Of Brake Lining :40000km

Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining

Quick Detail:

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Specifications:

Temperature

Coefficient of friction(μ)

Wear rate(v)(cm³/N.m)

100℃

0.35~0.65

≤0.7 x 10-7

150℃

0.35~0.65

≤1.1 x 10-7

200℃

0.30~0.60

≤1.5 x 10-7

250℃

0.25~0.60

≤2.5 x 10-7

Non-asbestos Woven Brake Lining Rolls Ship Winch Brake Lining dock crane brake lining

Competitive Advantage:

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
