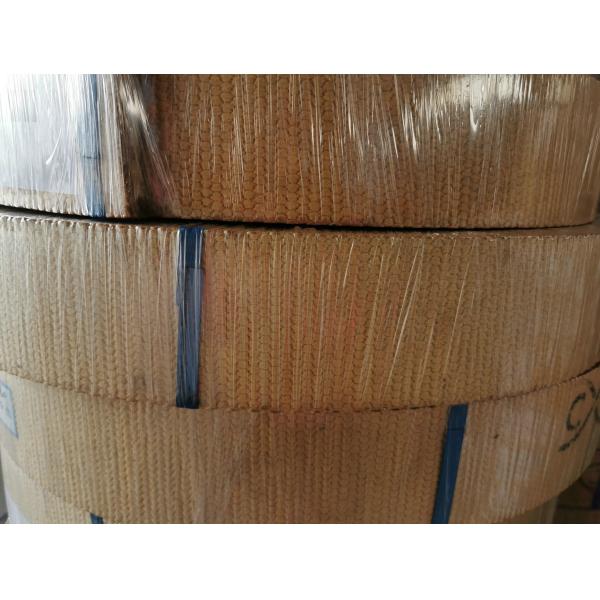

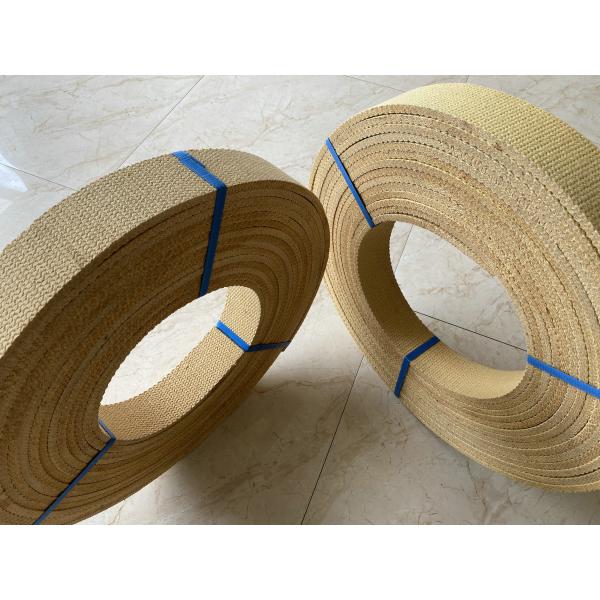

Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters
Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters
Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters
Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters
Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters
Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced Roll Brake Lining
Product Color :
Brown
Application :
winch and windlass brake, hoist brake, crane brake, winder brake, drilling machine brake
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
woven brake lining asbestos free woven brake lining rolls
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description

Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced Roll Brake Lining

Quick Detail:Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced Roll Brake Lining


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters


Description:Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced Roll Brake Lining

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.


Asbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 MetersAsbestos Free Woven Brass Wire Reinforced Brake Lining Roll 10 Meters



Specifications:Asbestos Free Industrial Brake Lining Roll Brass Wire Reinforced Roll Brake Lining

Competitive Advantage:

Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty.

Please reply in case of mail blocking or Wechat/Whatsapp me at (86) 13771895935 to get more informations. Thank you.
