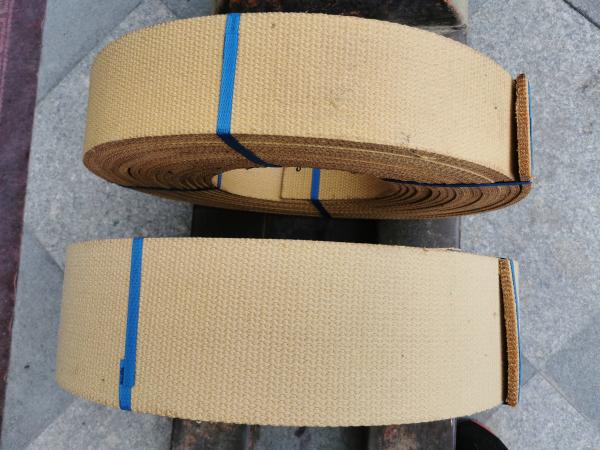

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
Product Color :
Brown
Application :
winch and windlass brake, hoist brake, crane brake, winder brake, drilling machine brake
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake

Model: BXS-M Non-asbestos Woven Brake Lining

Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.

Working Conditions: 250℃,Static Pressure: 4.0Mpa

Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.

Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Color: Yellow

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brakeNon Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brakeNon Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake

Specifications:Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced anchor winch brake

Competitive Advantage:Non Asbestos Woven Brake Lining Roll With Brass Wire Reinforced anchor winch brake

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

It is widely used for braking deceleration and transmitting power of big power machineries, such as ship winch, dock crane, drilling machineries, lifting machine, building machinery etc.

Non Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brakeNon Asbestos Woven Winch Brake Lining With Brass Wire Reinforced Ship anchor brake
