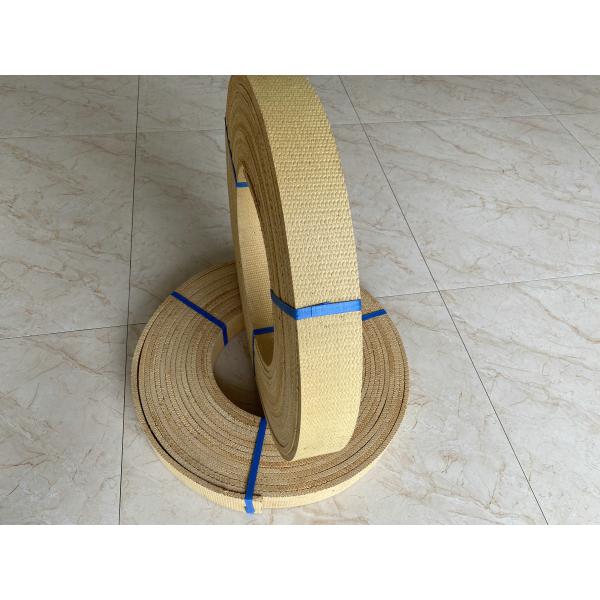

Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch
Product Color :
Brown
Application :
winch and windlass brake, hoist brake, crane brake, winder brake, drilling machine brake
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description

Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Oil Resistance Anchor Windlass Brake Lining For Traction Machine WinchOil Resistance Anchor Windlass Brake Lining For Traction Machine Winch

Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Oil Resistance Anchor Windlass Brake Lining For Traction Machine Winch

Quick Detail:Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch


Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m

Description:Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch

Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

We own advanced equipment, top technology and skillful workers which ensure the goods high quality. Our products have passed ISO9001:2000 international quality system certification and our factory has import-export operations right, which can make you save the cost on some extent. We are always playing great role in international market such as America, Europe and Southeast Asia etc.

Ningbo Xinyan Friction Materials Co., Ltd. warmly welcomes your visiting to our factory and we will offer you superior quality products and perfect service.


Oil Resistance Anchor Windlass Brake Lining For Traction Machine WinchOil Resistance Anchor Windlass Brake Lining For Traction Machine Winch



Specifications:Anchor Non-asbestos Woven Brake Lining Windlass Brake For Traction Machine Winch

Competitive Advantage:Non asbestos Woven Brake Lining industrial drilling machine anchor brake windlass

Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.

For more information, you could Wechat/Whatsapp at (86) 13771895935. Thank you.
