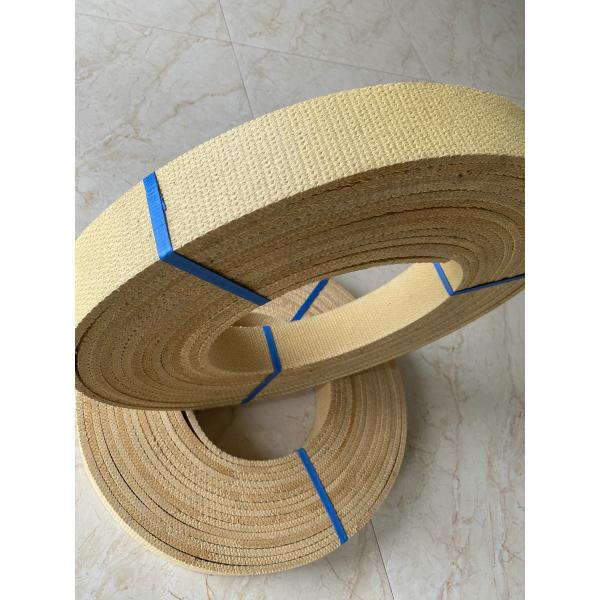

Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
Specifications
Brand Name :
DALU
Model Number :
BXS-M
Certification :
GB/T 19001-2016/ISO 9001:2015
Place of Origin :
CHINA
MOQ :
0.5 Tons
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Tons
Delivery Time :
6 weeks after down payment
Packaging Details :
exporting wooden case
Product Name :
Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
Product Color :
Brown
Application :
winch and windlass brake, hoist brake, crane brake, winder brake, drilling machine brake
Size :
10, 15, 20 meters/roll
Material :
brass wire, resin, viscose,
Type :
BXS-M
woven :
Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
resin :
melamine resin
main raw material :
non-asbestos yarns
color :
yellow
Description
Non Asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
Specifications:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7

Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining

Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.

Applications:Woven Brake Lining is extensively used in marine and industrial applications. It is suitable for winch and windlass, hoist, crane, winder, drilling and workoverrigs, agricultural vehicle, elevator, industrial drum brakes, mining machinery and construction machinery. When it is supplied for use on oil immersed applications,the friction value will be much lower than it is used in dry conditions.


Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining

Ningbo Xinyan Friction Materials Co., Ltd. is located in Simen Industrial Park by National Highway 329, with convenient transportation. The factory covers an area of 6,000 square meters, which is a comprehensive enterprise specializing in the production and sales of asbestos products, non-asbestos products, friction, sealing, anticorrosion, insulation and fire prevention materials.

Our main products: Asbestos and Non-asbestos Woven Brake Lining, Asbestos & Non-asbestos Rubber Jointing Sheet of low pressure, medium pressure and high pressure, Asbestos and Non-asbestos Yarns, Gland Packing, Glass Fiber Products, Aramid Fiber Products, Carbon Fiber Products, Ceramic Fiber Products and so on.

Our advantage is that we also produce raw materials of non-asbestos yarns, then weave into brake lining by ourself, so that we have the whole cost and quality control.Our factory has 6 weaving machines and work with many customers around the world. I will make the quotation list for you after getting your detail size and qty. You could wechat/whatsapp me at (86) 13771895935 to get more informations.

Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll



Quick Detail:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining

Model: BXS-M Non-asbestos Woven Brake Lining
Material: Viscose fiber, Aramid fiber, glass fiber, 2 brass wires, Melamine resin.
Working Conditions: 250℃,Static Pressure: 4.0Mpa
Applied field: It is widely used for braking deceleration and transmitting power of big power machineries.
Specification: T(5~30)x W(≤500)mm ; Available Length: 10m,15m,20m
Color: Yellow

Description:Non asbestos Brake Lining Brass Wire Ship Winch Lifting Machine Woven Brake Lining
Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.

We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.

Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/RollBrown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll



Brown Woven Brake Lining Material Non Asbestos Yarns 20 Meters/Roll
