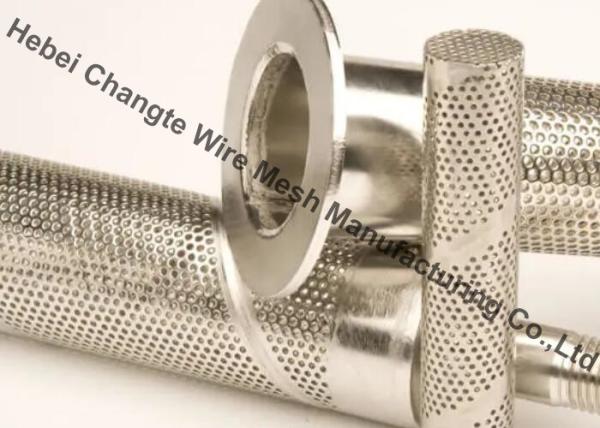

Galvanized 316 Stainless Steel 0.1mm Perforated Metal Mesh Screen
Galvanized 316 Stainless Steel 0.1mm Perforated Metal Mesh Screen
Galvanized 316 Stainless Steel 0.1mm Perforated Metal Mesh Screen
Galvanized 316 Stainless Steel 0.1mm Perforated Metal Mesh Screen
Specifications
Brand Name :
Changte
Model Number :
CT-PMS04
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Can be negotiated
Supply Ability :
3000 ton per year
Delivery Time :
3-20 work days
Packaging Details :
Iron pallet and waterproof plastic or wooden case
Thickness :
1-10mm,0.6-1.5mm,1.0/1.5/2.0/2.5/3.0/4.0mm or Customized
Hole size :
0.1-100mm,Customize Make
Technique :
Perforated
Hole shape :
round,square,triangle,slot,Diamond
Material :
Stainless Steel ,Aluminum,Carbon steel,Galvanized
Surface treatment :
Untreatment,Hot Dipped Galvanized,Powder Coated,Pvdf,polished
Description

Electro Galvanized Perforated Metal Mesh Screen for Buildings

Perforated metal mesh usually used galvanized steel, stainless steel, copper steel, aluminum steel, nickel steel and alloy steel as material. We have advanced CNC equipment, our products made by model. Our products have the advantage of high precision, small error and good quality. The punch diameter from 0.3mm to 100mm, and made thickness equal diameter, namely the thickness 0.5mm can punch diameter 0.5mm.

1. Material: galvanized plates, cold plates, stainless steel plates, low carton steel PVC plates aluminum plates,aluminum magnesium alloy plates,etc.

2. Hope shape:log holes,round holes,triangle holes,lightly pull scale hope,other pull wire netting etc.


3. Specification:
Thickness of roll plate: 0.2mm-1mm
Length of plate: 20m
Opening: 1.5mm-10mm
Thickness of plate: 0.2mm-20mm;width*length≤1.5m*5m
Opening: 0.5mm-200mm


4. Using: on the filtration of auto gas engine,the classification and filtration of mine,medicine,cereals and grains,indoor sound insulation,ventilation of grain depot,etc.

Feature:

Beautiful appearance, our products through painting or polishing have the advantage of abrasion resistance and long service life.

Easily process. There are a variety selection of plate thickness, pore size and arrangement.

Uniform mesh and smooth surface.

Low cost, easy to install.

Packing:

wrapped with plastic paper, then in cartons or Pallet.

Specifications

Plate
Material		 Thickness of
Metal (mm)		 Hole
Dia. (mm)		 Pitch
(mm)		 Sheet
Width (m)		 Sheet
Length (m)		 Porosity
(%)		 Weight
(kg/m2)
Rolling
plate		 0.2 6 2 1 20 44 0.88
0.35 5 4 1 20 24 2
0.45 6 3 1 20 35 2.5
0.8 3 3 1 20 19.6 3
Flat plate 0.5 1 1 1 2 19.6 3.14
0.55 1.1 2.2 1 2 22.67 3.411
0.55 1.5 2.8 1 2 26.03 3.268
0.8 1.5 1.5 1 2 19.6 5
0.8 2.0 3.4 1 2 30.78 4.465
1.5 2 2 1 2 19.6 9.4
1.5 5.0 8.0 1 2 35.39 7.843
3 5 16 1 2 19.6 18.8
Stainless
steel plate		 0.5 1 1 1 2 19.6 3.14
0.8 1.5 1.5 1 2 19.6 5
1 2 2 1 2 19.6 6.28
2 5 16 1 2 19.6 6.28
Aluminum
plate		 0.5 1 1 1 2 19.6 1.08
0.8 3 3 1 2 19.6 1.72
1.6 2 2 1 2 19.6 3.24
3 4 16 1 2 19.6 4.23
