1500MPa Vibrating Screen Mesh
1500MPa Vibrating Screen Mesh
1500MPa Vibrating Screen Mesh
1500MPa Vibrating Screen Mesh
Specifications
Brand Name :
Changte
Model Number :
CT-SC2
Certification :
ISO9001
Place of Origin :
China
Payment Terms :
Can be negotiated
Supply Ability :
2000 ton per year
Delivery Time :
3-20 work days
Packaging Details :
in bulk, by pallet and so on.
MOQ :
5Pieces
Wire diameter :
1.6mm - 5mm
Hole shape :
Diamond Hole,D type,slotted type
Material :
65Mn or Special wire
style :
with hook / without hook
Type :
Weave Wire Mesh,Crimped Wire Mesh,sucking type self cleaning filter
Usage :
Mining plant , coal washing plant , quarry etc
Description

Self - cleaning Screen Mesh for Wet And Moist Materials for H mesh

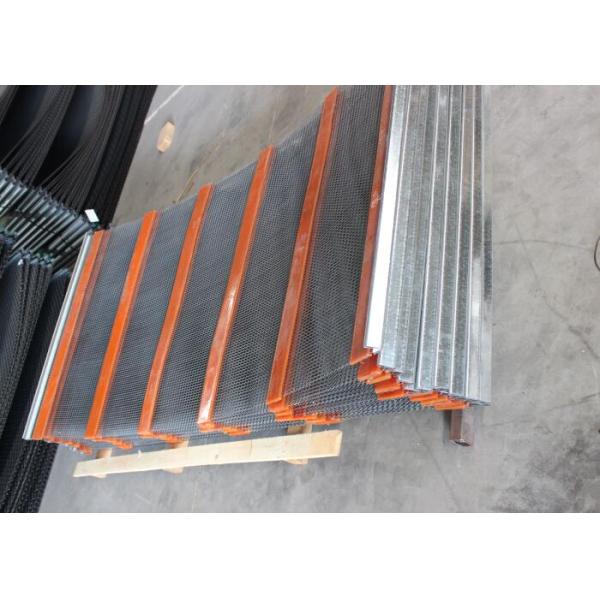

Self - cleaning Screen Mesh introduction

Self cleaning vibrating screen mesh is made of high carbon steel wire, spring steel wire and stainless steel wire. It can offer effective solutions to difficult sizing and aggregate separation conditions, such as the blinding and plugging.

Self cleaning vibrating screen mesh can separating and screening the wet and moist materials. It is widely used in the separating materials in the mining, quarry and other industries.

There are three types of self cleaning screen mesh.

Self - cleaning Screen Mesh Specifications

SCREEN TYPE DIMENSION APT WIRE DIAMATER
D TYPE HOOKS 2340X1220MM 25MM 7.88MM
1790X1220MM 12.7MM 3.76MM
1880X1220MM 4.0MM 2.03MM
S TYPE HOOKS 998X2915MM 50MM 8MM
2995X915MM 15.8MM 4.8MM
1790X1220MM 0.5MM 2.0MM
MODULE 610X305MM 35MM 6.8MM
610X610MM 9.5MM 3.05MM
305X305MM 0.75MM 3.05MM

H mesh

The H mesh of self cleaning vibrating screen mesh is made of several horizonal and parallel crimped wires. It looks like the herringbone pattern, which can offer better sizing control than D mesh and W mesh by eliminating more flats and elongates.

H mesh is ideal for the situations where material sizing is important, but not very critical. It is proven high effective in the extreme blinding screenings, such as the asphalt screening applications.

H mesh of self cleaning vibrating screen mesh.

H mesh has better opening area than D mesh and W mesh.

Self - cleaning Screen Mesh Features

Control strictly for the sizing.

Self-cleaning ability and less maintenance.

Three different types - W mesh, H mesh and D mesh.

Reduce the blinding and plugging.

Wear and abrasion resistance.

Producing tighter specifications and having the ability to self-clean.

Customized width and length is available.

Self - cleaning Screen Mesh Applications

Self cleaning vibrating screen mesh effective screening all kind size of the most wet, moist material using in mining, quarry, aggregate processing industries.
