Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Pre Crimped Carbon Steel Wire Screen
Specifications
Brand Name :
CHANGTE
Model Number :
CT-C05
Certification :
ISO9001:2015
Place of Origin :
HEBEI ,CHINA
MOQ :
1m
Price :
3.5USD/M
Payment Terms :
Determined in consultation
Supply Ability :
500tons
Delivery Time :
5-8 days
Packaging Details :
Wooden pallet, Tito tray
Material :
45#,65Mn.72A.82B
Product name :
low carbon galvanized steel wire,high carbon wire,steel wire from scrap tires,lifting carbon 3mm pvc coated galvanized steel wire rope,Galvanized Iron Wire
Diameter :
0.35-20.0MM
Usage :
for Vibrating, for Mining Industry, Sieve, Protect
Packing :
Roll Packing,Wooden box
Sell Specification :
1.5X2.0m, 2.0X2.5M,2.0X3.0M
Type :
Main Sieving Mesh
Application :
Construction Wire Mesh, Protecting Mesh, Filter
Color :
black,red
Surface treatment :
anti-rust paint, anti-rust oil
Description

65Mn Carbon Steel Wire Screen Quarry Screen Mesh

Carbon Steel Wire Screen Introduction

1.Material: Stainless steel wire, high carbon steel, carbon steel, nickel steel and nonferrous wire.

2.Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.

3.Application: Screening in mine, petroleum, chemical, building and food industry. Used in machinery parts, packing, barbecue, hardware products, handicrafts, wire baskets, food machinery, road and railway, etc. Also used in screening and grading of solid materials and filtering of liquid and quarry, etc.

Technical principle

  • Pre-crimped wire mesh is made of wire diameters ranging from 1.5mm to 6 mm. It can be used for windows, partitions, roasting of meat and flour sieving or mine screens.
  • In the pre-crimping process, the wire is first formed (crimped) in precision machines using rotary dies that precisely define the spacing of the wires. This insures that the wires are locked firmly together at the intersections. The pre-crimped wires are then assembled in custom designed screen assembly machines (looms).
  • When the open area is important, extra crimps between the intersections provide a more rigid weave and provide locking and tightness for light wires in relation to the large openings.
  • Due to the crimping process, the mesh have very accurate and consistent openings and are woven after crimping. It is typically preferred for vibrating screens and many other applications where sizing is critical.

Specifications

WIRE DIA APERTURE WEIGHT
0.75 1.00 4.29
1.00 1.50 5.33
1.50 2.00 8.57
2.00 3.00 10.67
3.00 4.00 17.15
3.00 5.00 15.00
3.50 6.00 17.20
4.00 8.00 17.44
4.00 10.00 14.95
4.50 12.00 16.05
4.50 12.50 15.58
4.50 14.00 14.32
5.00 16.00 15.57
5.50 18.00 16.84
5.50 19.00 16.15
5.50 20.00 15.52
6.50 22.00 19.39
6.50 24.00 18.12
6.50 25.00 17.55
6.50 28.00 16.02
7.00 32.00 16.44
7.50 35.00 17.31
7.50 38.00 16.17
7.50 40.00 15.49
7.50 45.00 14.02
8.00 50.00 14.43
9.00 63.00 14.72
9.00 75.00 12.61
11.00 100.00 14.26
Wire Gauge (SWG) Wire Diameter (mm) Mesh/ Inch Aperture (mm) Weight (kg)
6 4.8 1 20.6 11.5
8 4.05 2 9 16.5
10 3.2 2 10 10.5
12 2.6 3 5.9 10.5
14 2.0 3 6.5 6
16 1.6 4 5 5.5
17 1.4 5 5.1 5.0
18 1.2 5 4 3.6
19 1.0 6 3.2 3.0
21 0.8 7 2.8 2.3
22 0.7 8 2.5 2

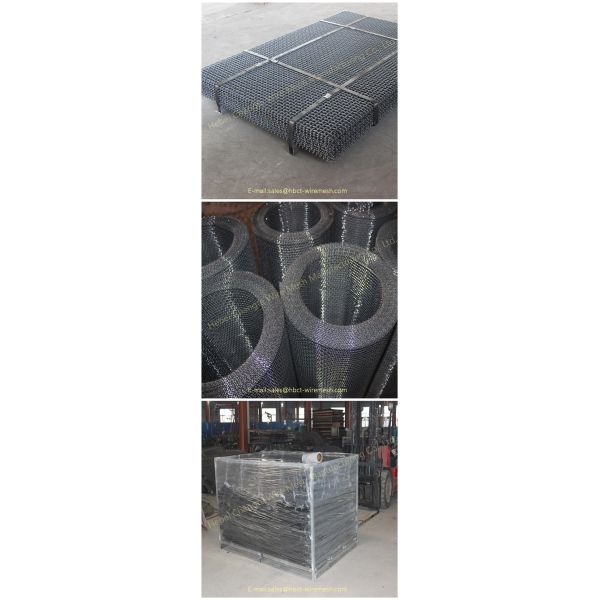

Pre Crimped Carbon Steel Wire Screen
