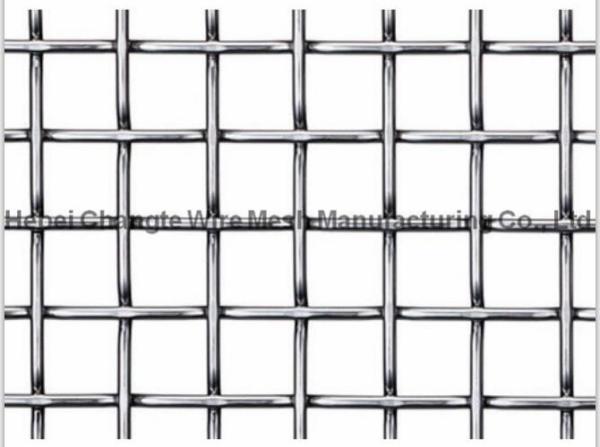

72A High Carbon Steel 3mm 4mm 5mm Crimped Wire Screen Mesh
72A High Carbon Steel 3mm 4mm 5mm Crimped Wire Screen Mesh
72A High Carbon Steel 3mm 4mm 5mm Crimped Wire Screen Mesh
72A High Carbon Steel 3mm 4mm 5mm Crimped Wire Screen Mesh
Specifications
Brand Name :
Changte
Model Number :
CT-QSM05
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 Pieces
Payment Terms :
Can be negotiated
Supply Ability :
2000 ton per year
Delivery Time :
3-20 work days
Packaging Details :
Inside the plastic outside the woven bag，Wooden pallets or iron tray, can be customized according to customer requirements.
Material :
65Mn, 45#, 50#, 55#, 60#, 70#, 72A,ss
Surface treatment :
Antirust oil or antirust paint
Wire dia :
0.5mm - 16mm
Open size :
0.7mm - 100mm
Colour :
Black Red etc.
Tolerance :
2%-4%
Description

65Mn 3mm 4mm 5mm Wire Dia Mining Screen Mesh Mine Sieving Mesh

Quarry screen mesh is made of spring steel wire and manganese steel wire. The spring steel wire can be divided into high carbon steel wire and medium steel wire. The commonly used material of manganese steel wire is 65 Mn. Manganese steel quarry screen mesh has better wear resistance than other materials. Even if the surface is strong impacted and abraded, the interior remains high plasticity and toughness. When the old surface is worn and torn, it will form a new wear-resistant layer.

The high quality raw materials make the woven wire quarry screen mesh have many excellent characteristics, such as high tensile, wear and weather resistance.

Specification:

Material: 65Mn wire

Wire diameter: 0.5-12.7mm

Hole size: 0.7-120mm

Hole type: Square mesh, rectangular mesh.

Hook type:Bending.Welding.Metal sheet hook. (C type or U type).

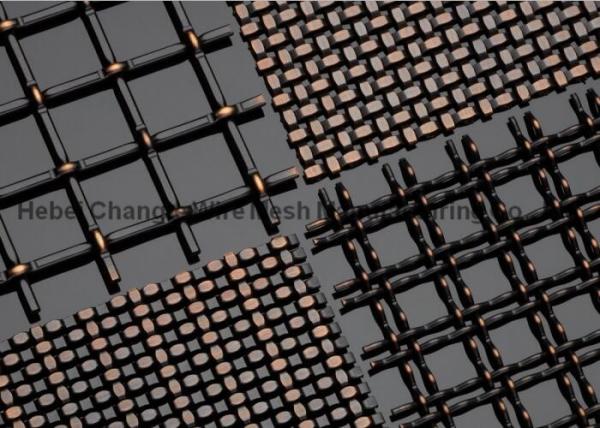

Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

Panel size: customized

Surface treatment: Galvanized before weave and galvanized after weave, painted.

65Mn is the most common material of the manganese steel vibrating screen mesh.High tensile, wear and abrasion resistant.

Application

The woven quarry screen mesh is widely used in the vibrating screens, crushers and trommel screens.

Woven quarry screen mesh can be used for screening and separating stones, coal, mining, gravel, sand and any other materials.

Packing details:

1) In pieces: by pallets.

2) In rolls: in bulk.

3) OEM packing.

Steel Grade Chemical Composition
C Si Mn
45 0.42-0.50 0.17-0.37 0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.9-1.2
72A 0.70-0.75 0.15-0.35 0.3-0.6

Item Wire diameter
Mm		 Open size
Mm		 Width
M		 Length
M		 Weight
Kg
1 2 3 1.5 2 32
2 3 5 1.5 2 42.6
3 4 8 1.5 2 51.13
4 4.5 12 1.5 2 46.77
5 5 16 1.5 2 45.52
6 5.5 18 1.5 2 49.37
7 6 20 1.5 2 52.7
8 6 22 1.5 2 48.96
9 6.5 24 1.5 2 52.87
10 6.5 27 1.5 2 48.12
11 7 30 1.5 2 50.63
12 8 50 1.5 2 42.29
13 12 75 1.5 2 64

72A High Carbon Steel 3mm 4mm 5mm Crimped Wire Screen Mesh
