Positioning Nonferrous 50mm hole Metal Screen Mesh
Positioning Nonferrous 50mm hole Metal Screen Mesh
Positioning Nonferrous 50mm hole Metal Screen Mesh
Positioning Nonferrous 50mm hole Metal Screen Mesh
Positioning Nonferrous 50mm hole Metal Screen Mesh
Positioning Nonferrous 50mm hole Metal Screen Mesh
Specifications
Brand Name :
CHANGTE
Model Number :
CT-M02
Certification :
ISO9001:2015
Place of Origin :
CHINA,HEBEI
Material :
steel wire, iron wire, stainless steel wire, etc
Technology :
bending, weaving
Type :
Plain weave, positioning, flower separation
Description

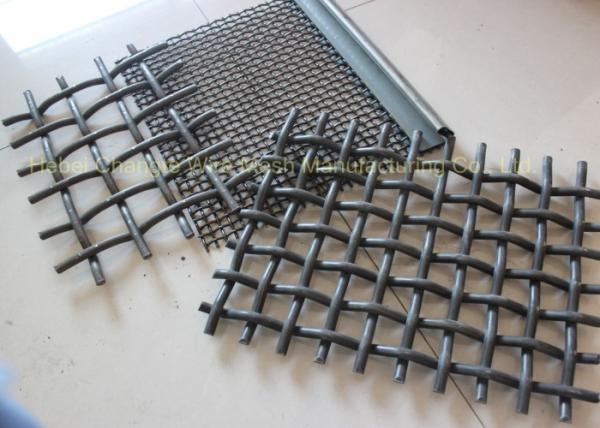

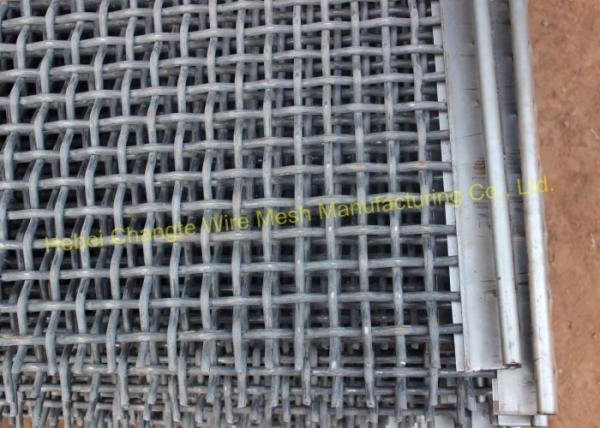

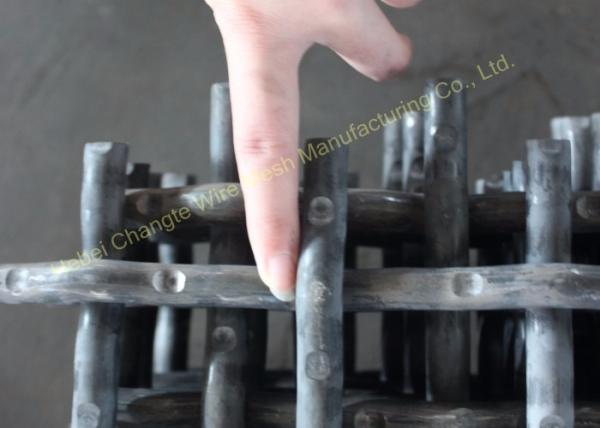

65mn Hight Carbon Mining Wire Screen Mesh Vibrating Woven Screen Mesh

1. Mining Wire Screen Mesh Material:


1) Stinless steel wire(201, 202, 304, 304L, 310, 316, 316L)
2) High carbon steel wire, low carbon steel, medium carbon steel, Mn steel wire, black wire.
3) Galvanized iron wire, galvanized steel wire
Aluminum wire, copper wire, non-ferrous metal wire, Other materials are available on request.

2. Mining Wire Screen Mesh Crimp methods: Plain weaved, can be crimped(double crimp, intermediate crimp, lock crimp, flat top crimp, lock slot crimp

3. Mining Wire Screen Mesh Features: Even mesh, strong structure

4. Mining Wire Screen Mesh Specifications:

Wire diameter: 0.3mm~12mm
Hole size: 1.5mm ~50mm
Width: As request
Length: As request

5. Mining Wire Screen Mesh Hook: 60-180 degree, C hook available
Hook Covered edge: Galvanized metal or others

6. Mining Wire Screen Mesh Application: It is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc

7. Surface treatment: spray anti rust oil, anti rust paint, to prevent the oxidation, prevent rust.
8. Theory Introduction: Crimped wire mesh also called square wire mesh is cloth made from wire strands. The wires that make up wire mesh run parallel to the width of the roll (cross wires) and parallel to the length (line wires). The cross and line wires are interwoven. That is, the wires cross over and under each other. Wire Mesh can be woven in a number of different styles depending on the material type, wire diameter, and opening size. Crimped wire mesh is available in rolls, sheets or panels, and cut-to-size.

specification
WIRE DIAMETER OPENING
0.5 MM x 0.4 MM
1 MM x 0.7 MM
1.5 MM x 1 MM
2 MM x 1.4 MM
4 MM x 2 MM
3MM x 2 MM
4 MM x 2.5 MM
5 MM x 2.5 MM
4 MM x 3 MM
5 MM x 3 MM
6 MM x 3.5 MM
7 MM x 3.5 MM
8 MM x 3.5 MM
10 MM x 4 MM
12 MM x 4 MM
12 MM x 4.5 MM
14 MM x 5 MM
13 MM x 4.5 MM
15 MM x 5 MM
16 MM x 5.5 MM
18 MM x 5.5 MM
19 MM x 5.5 MM
20 MM x 5.5 MM
18 MM x 6 MM
19 MM x 6 MM
20 MM x 6 MM
22 MM x 7 MM
24 MM x 7 MM
25 MM x 7 MM
22 MM x 8 MM
24 MM x 8 MM
25 MM x 8 MM
35 MM x 8 MM
38 MM x 8 MM
45 MM x 8 MM
50 MM x 8 MM
63 MM x 10 MM
75 MM x 10 MM
100 MM x 12 MM
40 MM x 11 MM
45 MM x 11MM
50 MM x 11 MM
63 MM x 12 MM
75 MM x 10 MM
100 MM x 14MM
110 MM x 14 MM
100 MM x 16MM
110 MM x 16 MM

Positioning Nonferrous 50mm hole Metal Screen Mesh
