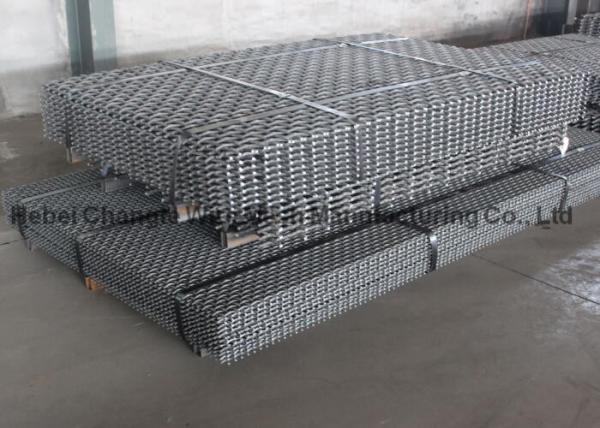

Metal Shroud Plain Edge 100mm Aperture 1800MPa Mining Wire Screen Mesh
Metal Shroud Plain Edge 100mm Aperture 1800MPa Mining Wire Screen Mesh
Metal Shroud Plain Edge 100mm Aperture 1800MPa Mining Wire Screen Mesh
Metal Shroud Plain Edge 100mm Aperture 1800MPa Mining Wire Screen Mesh
Specifications
Brand Name :
Changte
Model Number :
CT-MS2
Certification :
ISO 9001
Place of Origin :
China
MOQ :
10 pieces
Payment Terms :
Can be negotiated
Supply Ability :
10 Ton per day
Delivery Time :
15 work days
Packaging Details :
rolls/panels wrapped with waterproof paper then covered with hessian-cloth .
Material :
65Mn,Stainless Steel Wire,Galvanized Steel Wire,Black Wire Mesh
Wire diameter :
0.5mm-15mm
Color :
Silver,Red,Black,blue,customized
Width :
0.5m-6m or customized
Aperture :
0.15mm-100mm
Weave style :
Plain Weave,Dutch Weave,flat top crimped,twill weave,intermediate crimped
Description

High Manganese Crusher Mining Wire Screen Mesh

Mining wire screen mesh, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.

Materials: 65Mn Spring Steel, 72A & 72B High-Manganese Steel, and some other High Carbon Steels, as well as Stainless Steel;

Aperture: 0.5~100mm

Wire Diameter: 0.3~19.5mm

Angle: 30 degrees, 45 degrees,60 degrees

Crimped Wire Mesh Shape: v-shaped, u-shaped
Hook Type: C or U hook for 30°-180°

Edge Types: Raw Edge, Metal Shroud Plain Edge, Plain Formed Edge Hook, Metal Shroud Edge Hook, Double Fold Metal Shroud Edge Hook, Inside Insert Edge Hook, Welded Bent Plate Edge Hook, etc..

In its simplest form, the mining wire screen mesh is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest conditions.

Item Wire diameter
Mm		 Open size
Mm		 Width
M		 Length
M		 Weight
Kg
1 2 3 1.5 2 32
2 3 5 1.5 2 42.6
3 4 8 1.5 2 51.13
4 4.5 12 1.5 2 46.77
5 5 16 1.5 2 45.52
6 5.5 18 1.5 2 49.37
7 6 20 1.5 2 52.7
8 6 22 1.5 2 48.96
9 6.5 24 1.5 2 52.87
10 6.5 27 1.5 2 48.12
11 7 30 1.5 2 50.63
12 8 50 1.5 2 42.29
13 12 75 1.5 2 64
