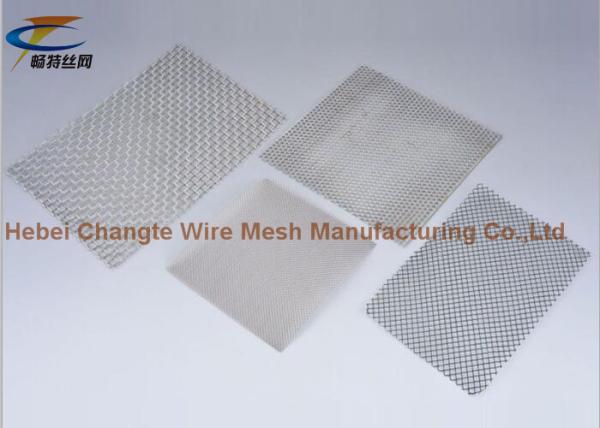

5 Mesh Dia 0.5mm 1.0mm Pre Crimped Woven Wire Mesh Panels
5 Mesh Dia 0.5mm 1.0mm Pre Crimped Woven Wire Mesh Panels
5 Mesh Dia 0.5mm 1.0mm Pre Crimped Woven Wire Mesh Panels
5 Mesh Dia 0.5mm 1.0mm Pre Crimped Woven Wire Mesh Panels
Specifications
Brand Name :
Changte
Model Number :
CT-SSM04
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 roll
Payment Terms :
Can be negotiated
Supply Ability :
2000 ton per year
Delivery Time :
3-20 work days
Packaging Details :
wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
Width :
1.0m,1.2m,1.5m,1.8m,2m,3m,4m,5m,6m,7m,8m
Length :
15.24m, 30m, 30.5m
Mesh :
8 mesh
Material :
201,202,301,302,304,304L,316,316L,321,430
Wire Dia :
0.5-1.0mm
Aperture :
4.0-4.5mm
Description

5 mesh plain stainless steel wire mesh aperture 4.0-4.5mm

Stainless Steel Wire Mesh Screens is made of the SS wire to woven,also called Stainless steel woven mesh Screen,To made the square hole with plain weave,named Stainless steel square mesh. For the Twilled woven,can called Stainless steel twilled mesh cloth.
The Stainless steel wire mesh and screen mesh is reeds with imports of wire mesh for weave.To make sure the hole or mesh have uniform size,smooth and beautiful mesh screen for suitable to filter industrial.

Description:

5 mesh plain weave stainless steel wire mesh including 5 wires and openings of 1 inch Using 0.5-1.0mm diameter wire, by plain weaving, woven 5 mesh opening for 4.0-4.5mm solid particles , it can also be used as a liquid, gas coarse filter support material or protective fabrics to use. This wire diameter and mesh with ratio reasonable, therefore weave structure is very strong. After 13 whole weaving process, so that the mesh surface flatness better.

Material:

200 series 201 202 205

300 series 301 302 304 304L 309 309S 310 310S 316 316L 321

400 series 410 420 430

Technical parameter:

Roll width 1.0-8.0m

Roll length 15.24m, 30m, 30.5m, 61m

Standard:

GB/T 5330.1-2000, GB/T 19628.2-2005

Application:

Test Sieve

Radiator grille

Tractor grille

Machine Screen

Vibration Sieve

Food Selection

Wash Rice Basket

For beehives, and for preventing mice from entering air-bricks.

5 mesh plain weave stainless steel wire mesh packing:

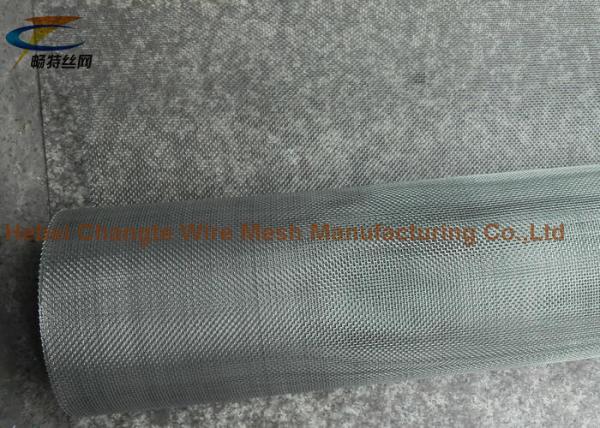

Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper

or plastic film, outside wooden cases or wooden pallet.

Chemical composition of stainless steel wire

AISI
Grade		 Chemical Composition(%)
C Si Mn P S Ni Cr Mo
304 >=0.08 >=1.00 >=2.00 >=0.045 >=0.030 >8.00~10.50 >18.00~20.00 -
304H >0.08 =1.00 =2.00 =0.045 =0.030 8.00~10.50 18.00~20.00 -
304L >=0.030 >=1.00 >=2.00 >=0.045 >=0.030 >9.00~13.50 >18.00~20.00 -
316 =0.045 =1.00 =2.00 =0.045 =0.030 10.00~14.00 10.00~18.00 2.00~3.00
316L >=0.030 >=1.00 >=2.00 >=0.045 >=0.030 >12.00~15.00 >16.00~18.00 >2.00~3.00
430 =0.12 =0.75 =1.00 =0.040 =0.030 =0.60 16.00~18.00 -
430A >=0.06 >=0.50 >=0.50 >=0.030 >=0.50 =0.25 >14.00~17.00 -
