Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Anti Acid Anti Alkali 150 Micron Stainless Steel Screen Wire Mesh
Specifications
Brand Name :
CHANGTE
Model Number :
CT-S03
Certification :
ISO9001：2015
Place of Origin :
CHINA,HEBEI
MOQ :
1M
Price :
5.6USD/M
Payment Terms :
Determined in consultation
Supply Ability :
100000M²
Delivery Time :
3-7days
Packaging Details :
Bubble Film, Kraft, Plastic Cloth, Wooden Case
Material :
Stainless Steel Wire,304,316,imported wire 304N,SUS stainless steel
Hole shape :
Square Hole,triangular tunnel openings,rectangle hole
Wire diameter :
Requirement,0.1-5MM,0.02-2mm,0.018mm-2.5mm,BWG33-BWG16
Specification :
2-635mesh
Mesh :
1-3200mesh,3-500 MESH,1-635mesh
Technique :
Woven
Woven Style :
Plain, Twill, Dutch Twill, Reverse Dutch
Model No. :
Stainless Steel Wire Mesh
Sample :
20CM-30CM Size for Free
HS Code :
73141400
Application :
Filters,Woven Wire Mesh,mining,Protecting Mesh,Circuit board printing
Packing :
paper tube inside+ wodden box +plastic bag +,waterproof paper,Wooden carton,plastic film,pallet
Description

304 316 Stainless Steel Screen Wire Mesh screen 30 60 90 120 150 micron filter mesh

1. Material: AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc


2. Wire Diameter: 0.015-2.8mm


3. Mesh count:
Plain weave can be woven up to 400 mesh.
Twill weave can be woven from 400 to 635mesh.
Dutch weave can be woven up to 3500mesh

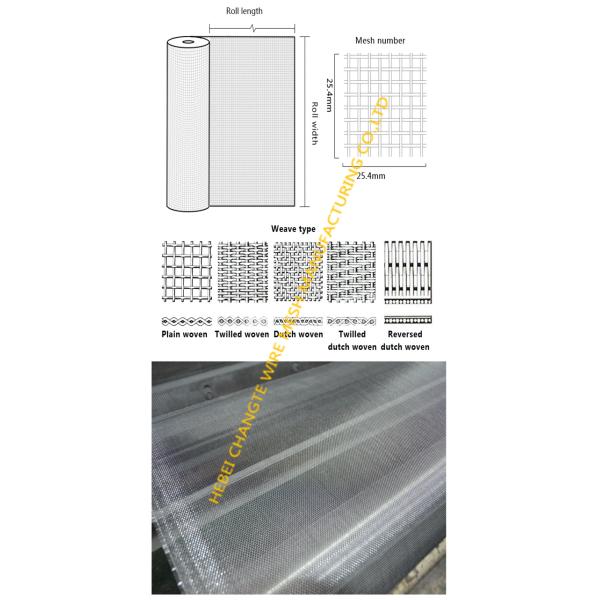

4. Weave pattern: Plain Weave ,Twill Weave,Dutch Weave,etc.


5. Features:
Corrosion resistance.
Anti-acid and alkali
Anti-high temperture.
Good filter performance.
Long using life


6.Application:
In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.

Stainless Steel Screen Wire Mesh is the optimum solution for your woven mesh needs. By selecting stainless steel you will utilise its numerous benefits including:
Long term performance
Minimal maintenance
Strength
Life cycle costing
Low environmental impact
Stocked Product Specifications ready for same day despatch
Both weaves are economical; with the plain weave the most common and economic to produce. Uses of wire mesh include:
Sizing
Particle separation and filtering
Particulate sifting
Safety and equipment protection.
Industries served include aerospace, automotive, construction and oil & gas.
Custom manufacturing services include:
Wide selection of metals and alloys, including special wire selections such as cable mesh and plastic-coated wire.
Extra wide wire cloth, up to 240" width for selected items
Wire cloth in long rolls, up to 2000' long coils or rolls with no seams
Woven edges
Full range of conversion services, including slitting, shearing, calendaring, stretching and annealing.
Oblong opening and high aspect ratio wire cloth designs are available.

Plain weave mesh Specifications of mesh
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63
