Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh
Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh
Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh
Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh
Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh
Woven Metal Decorative Lock 0.1mm Stainless Steel Crimped Wire Mesh
Specifications
Brand Name :
CHANGTE
Model Number :
S-15
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
10M
Price :
5.2USD/M
Payment Terms :
L/C, T/T
Supply Ability :
10000M
Delivery Time :
3-10 days
Packaging Details :
box or pallet
Material :
Stainless Steel Wire,304,316,SUS stainless steel
Wire diameter :
0.1-5MM
Width :
0.5m-3m or customized
Length :
1-30m,30m-100m or customerized
Weave style :

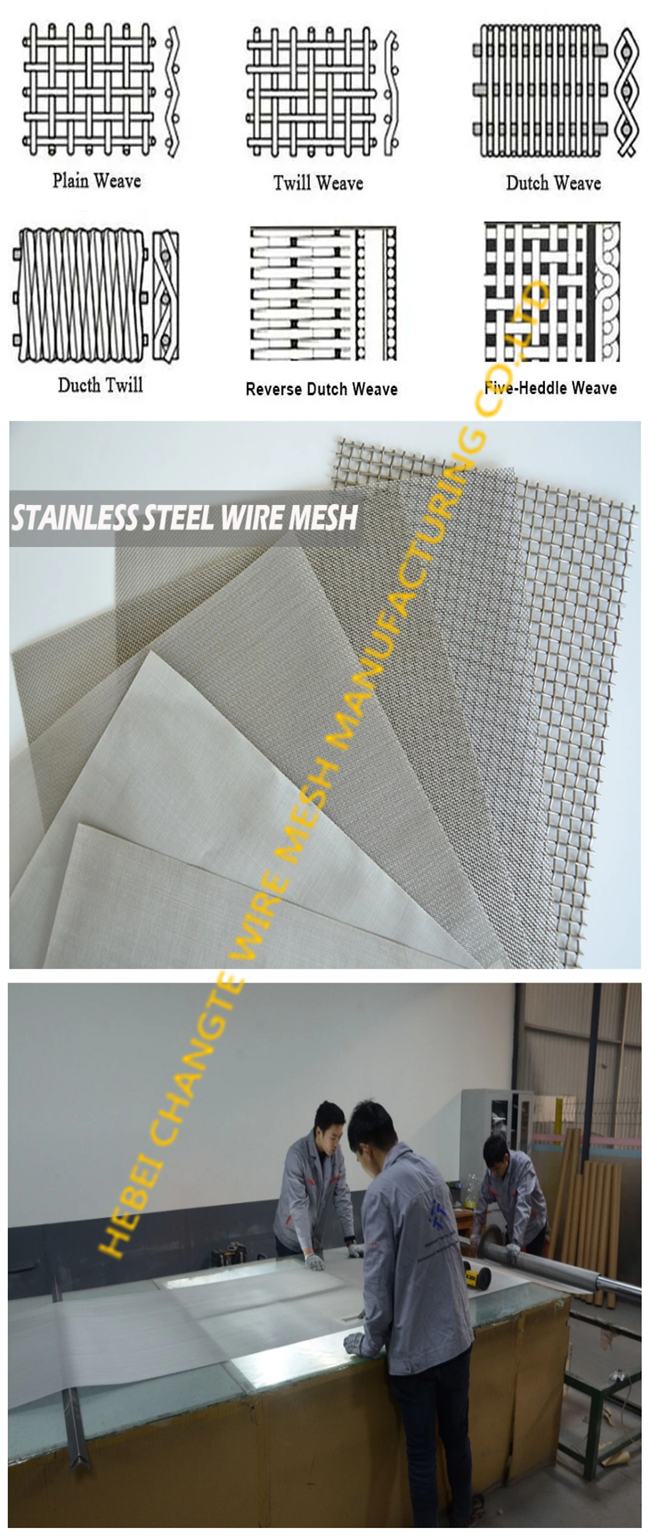

Plain Weave,Plain/Twill Weave,Dutch/Plain/Twill Weave
Technique :
Woven
Application :
Filters,Woven Wire Mesh,mining
Sample :
free
Description

Stainless Steel Screen Wire Mesh Woven Metal Decorative Lock Crimped Wire Mesh

1. Stainless Steel Screen Wire Mesh Decorative wire mesh is also named Architecture Meshes, Decorative woven mesh, metal fabric, is weaved with high-quality stainless steel wire, aluminum alloy wire, brass wire, copper wire or other alloy materials. It is a new decorative product in the modern industrial and architectural applications. Available in many different patterns, each with its own characteristics and optical effect.

2. Features

Variety of styles and mesh openings

Variety of unique patterns

Remarkably versatile

Low maintenance construction

Material sustainability.

Different Colors

3. Specifications

Our company offers decorative metal mesh in a variety of wire diameters, styles and mesh openings. They are woven into a variety of unique patterns, and have benefits of remarkably versatile, low maintenance construction, energy efficiency and material sustainability.

Materials can be uncoated cold-rolled steel, cold-rolled galvanized steel, stainless steel 304 316 316L , aluminum, copper or brass. Our decorative metal mesh in a variety weave and visual forms.

Plain weave mesh Specifications of mesh
Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 0.08 2.03 0.92 23.37 84.6 41.1
2X2 0.063 1.6 0.437 11.1 76.4 51.2
3X3 0.054 1.37 0.279 7.09 70.1 56.7
4X4 0.063 1.6 0.187 4.75 56 104.8
4X4 0.047 1.19 0.203 5.16 65.9 57.6
5X5 0.041 1.04 0.159 4.04 63.2 54.9
6X6 0.035 0.89 0.132 3.35 62.7 48.1
8X8 0.028 0.71 0.097 2.46 60.2 41.1
10X10 0.025 0.64 0.075 1.91 56.3 41.2
10X10 0.02 0.51 0.08 2.03 64 26.1
12X12 0.023 0.584 0.06 1.52 51.8 42.2
12X12 0.02 0.508 0.063 1.6 57.2 31.6
14X14 0.023 0.584 0.048 1.22 45.2 49.8
14X14 0.02 0.508 0.051 1.3 51 37.2
16X16 0.018 0.457 0.0445 1.13 50.7 34.5
18X18 0.017 0.432 0.0386 0.98 48.3 34.8
20X20 0.02 0.508 0.03 0.76 36 55.2
20X20 0.016 0.406 0.034 0.86 46.2 34.4
24X24 0.014 0.356 0.0277 0.7 44.2 31.8
30X30 0.013 0.33 0.0203 0.52 37.1 34.8
30X30 0.012 0.305 0.0213 0.54 40.8 29.4
30X30 0.009 0.229 0.0243 0.62 53.1 16.1
35X35 0.011 0.279 0.0176 0.45 37.9 29
40X40 0.01 0.254 0.015 0.38 36 27.6
50X50 0.009 0.229 0.011 0.28 30.3 28.4
50X50 0.008 0.203 0.012 0.31 36 22.1
60X60 0.0075 0.191 0.0092 0.23 30.5 23.7
60X60 0.007 0.178 0.0097 0.25 33.9 20.4
70X70 0.0065 0.165 0.0078 0.2 29.8 20.8
80X80 0.0065 0.165 0.006 0.15 23 23.2
80X80 0.0055 0.14 0.007 0.18 31.4 16.9
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63
