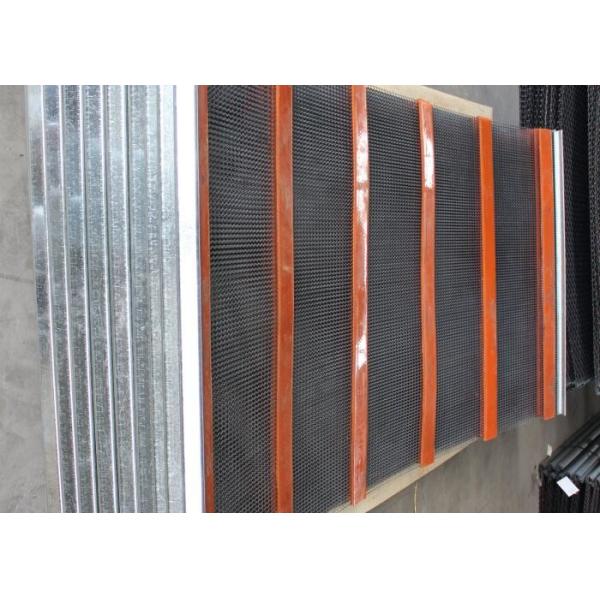

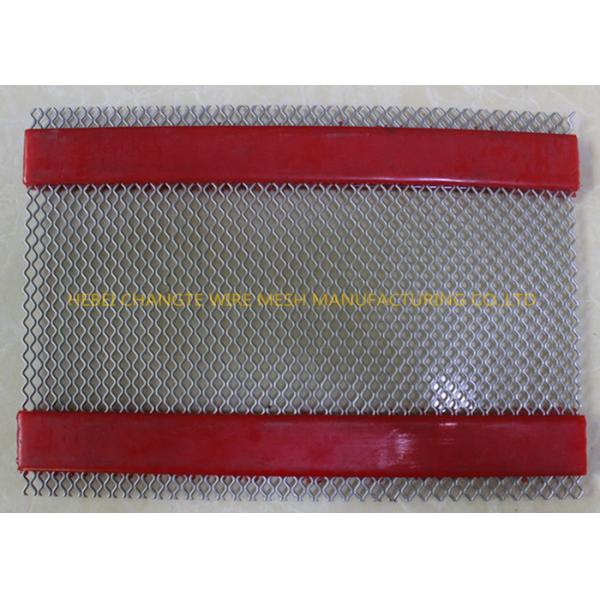

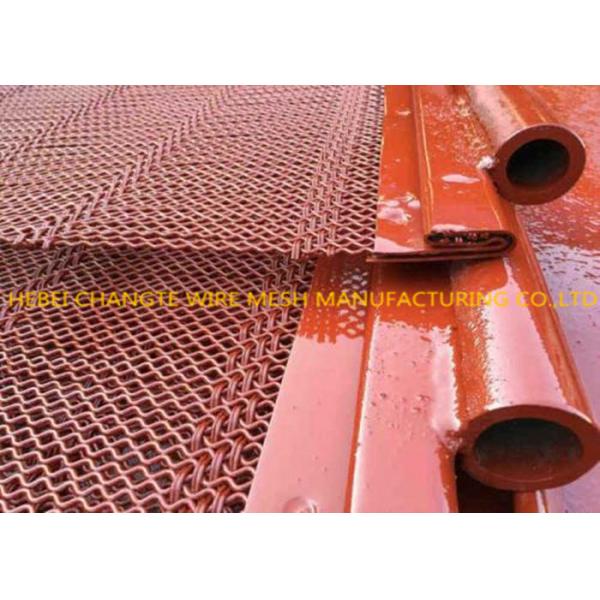

65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
Specifications
Brand Name :
Changte
Model Number :
AP-02
Certification :
ISO 9001
Place of Origin :
Hebei
MOQ :
100 square meters
Price :
$5-12 square meter
Payment Terms :
L/C, T/T
Supply Ability :
1000 square meters/day
Delivery Time :
5-8 work days
Packaging Details :
Pallet, Wooden Case, Bundle
Type :
Weave Wire Mesh, Crimped Wire Mesh, Wire Cloth, Linear, sucking type self cleaning filter
Material :
Black Wire Mesh, Galvanized Steel Wire, stainless steel, high carbon steel
Application :
Screen, Woven Wire Mesh, Filters, Ore, heat exchange
Weave style :
Plain Weave, Dutch Weave, quarry screen
Wire diameter :
1.6-12.6MM, 2mm, 2.4-11.9mm, 2-6mm, 0.5-10mm
Width :
customized, 0.5-2m, 120cm, 1.2m, less than 4 m
Feature :
anti-clogging, self cleaning, High tensile, anti mosquito, fly
Length :
1-30m, customized, 10m or 30m, Customers' Requirement, to be order
Packing :
Pallet, Wooden Case, Bundle
Warranty :
3 Months, one year
Description

65 Mn Spring Steel 2.8 mm Mine Quarry Self Cleaning Screen Mesh

Product Description
Progress Harp Type K
This type of screens is made of round wavy, wires, curved in the horizontal working plain. Angle between the arms equals 90.
Working size of W opening is created by diameter of the circle written into this opening. Wires placed one next to another create
openings similar to a square. Working wires are buckled together with transversive wires using polyurethane, rubber or wires
inside plastic cover.

Opening sizes: 1.5 - 35 mm
Ø Wire: 0.8 - 6.3 mm

Progress Harp Type T
They are produced with wires of round diameter - straight and wavy placed alternately on the horizontal working surface. Wave
spread span equals 90 or 60 . Working size of W opening is created by the diameter of the circle written into this opening.
Straight, round wires have a slightly larger diameter then wavy ones. This series of screens characterizes with high ability to
withstand heavy loads (owing to very well stretched straight wires)and good self-cleaning effect, obtained by self - oscillation
of wavy wires. Wires in this series of screens can be connected with each other using wire knots, polyurethane, rubber or
transverse wires inside plastic cover.

Opening sizes: 1.2 - 14 mm
Ø Wire: 1 - 4 mm

SCREEN TYPE DIMENSION APT WIRE DIAMATER
D TYPE HOOKS 2340X1220MM 25MM 7.88MM
1790X1220MM 12.7MM 3.76MM
1880X1220MM 4.0MM 2.03MM
S TYPE HOOKS 998X2915MM 50MM 8MM
2995X915MM 15.8MM 4.8MM
1790X1220MM 0.5MM 2.0MM
MODULE 610X305MM 35MM 6.8MM
610X610MM 9.5MM 3.05MM
305X305MM 0.75MM 3.05MM

65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh65mn Spring Steel 2.8mm Mine Quarry Self Cleaning Screen Mesh
