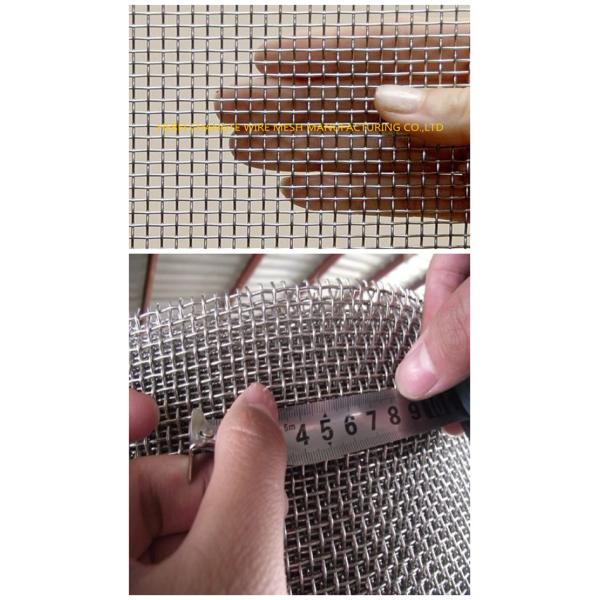

Water Stainless Steel 5mm Dia Pre Filter Mesh 1m Length
Water Stainless Steel 5mm Dia Pre Filter Mesh 1m Length
Water Stainless Steel 5mm Dia Pre Filter Mesh 1m Length
Water Stainless Steel 5mm Dia Pre Filter Mesh 1m Length
Water Stainless Steel 5mm Dia Pre Filter Mesh 1m Length
Water Stainless Steel 5mm Dia Pre Filter Mesh 1m Length
Specifications
Brand Name :
CHANGTE
Model Number :
S-16
Certification :
ISO9001:2015
Place of Origin :
CHINA
MOQ :
10M
Price :
5.2USD/M
Payment Terms :
L/C, T/T
Supply Ability :
10000M
Delivery Time :
3-10 days
Packaging Details :
box or pallet
Material :
Stainless Steel Wire,304,316,SUS stainless steel
Weave style :
Plain Weave,Plain
Wire diameter :
0.1-5MM,0.02-2mm
Width :
0.5m-3m or customized
Length :
1-30m,30m-100m or customerized
Application :
Filters,Woven Wire Mesh,mining
Usage :
oil,space flight,filter,Printing
Color :
Silver,steel,Black
Description

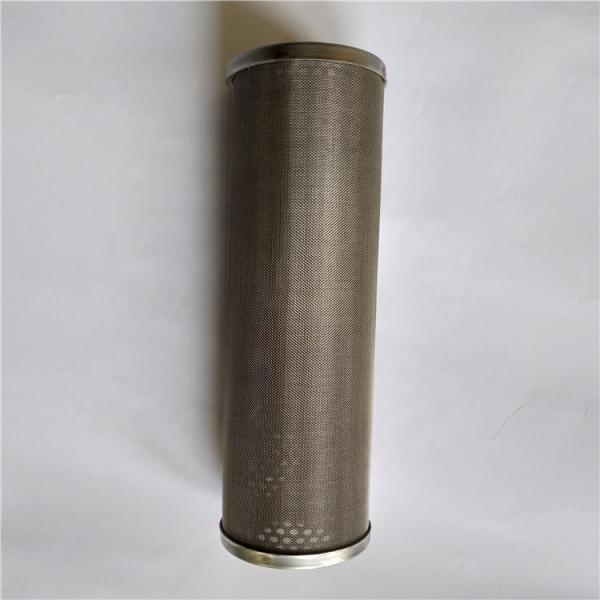

Prefilter Mesh Water Filter Mesh Stainless Steel Wire Mesh

prefilter mesh
Material: stainless steel
Filtration precision: 50 to 60 microns.
Diameter and length according to customers' special requirements.
OD:62MM
H:256MM
Pre filter is the whole house water as a first line of the coarse filtration equipment, can filter in tap water and sediment, rust and other large particulate matter. Profiteer generally installed in the front end of the pipe, so named after the word "front" to; And "filter", it refers to the basic principle of this kind of equipment.

1.Wire Materials: SUS302, 304, 316, 304L, 316L.


2.Characteristics: Square aperture, less rigid than plain weave, especially suitable for deforming, strong

wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm .


3.Stainless steel wire meshTypical Weaving Patterns: Plain weave, twill weave, dutch weave.

4.Stainless steel wire mesh Plain weave :every warp wire across every weft wire ,the warp wire and weft wire diameter is same and the warp wire and weft wire showing 90°degree .

5.Stainless steel wire mesh Twill weave :every warp wire across per two weft wire ,every weft wire across per two warp wire .

Stainless steel wire mesh Dutch weave: the warp wire is thicker and the weft wire is thinner .

6.Application Stainless steel wire mesh, with its excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

Mesh Wire dameter(mm) Opening(mm) Materials(AISI)
7x7 1.00 2.63 304 or 316
10x10 0.60 1.94 304 or 316
12x12 0.50 1.62 304 or 316
16x16 0.40 1.19 304 or 316
18x18 0.35 1.06 304 or 316
20x20 0.35 0.87 304 or 316
24x24 0.26 0.80 304 or 316
30x30 0.30 0.55 304 or 316
35x35 0.17 0.56 304 or 316
40x40 0.23 0.40 304 or 316
50x50 0.20 0.31 304 or 316
60x60 0.15 0.27 304 or 316
70x70 0.12 0.24 304 or 316
80x80 0.13 0.19 304 or 316

Mesh Wire diameter(mm) Material(AISI)
12x64 0.58x0.40 304 or 316
24x110 0.36x0.25 304 or 316
14x88 0.50x0.33 304 or 316
30x150 0.23x0.18 304 or 316
40x200 0.18x0.13 304 or 316
50x250 0.14x0.11 304 or 316
80x700 0.10x0.08 304 or 316
165x800 0.071x0.040 304 or 316
165x1400 0.06x0.04 304 or 316
200x1800 0.05x0.032 304 or 316
825x2300 0.035x0.025 316L
400x2800 0.030x0.020 316L
