30 m Length 316 L Ultra Fine Woven SS Filter Mesh
30 m Length 316 L Ultra Fine Woven SS Filter Mesh
30 m Length 316 L Ultra Fine Woven SS Filter Mesh
30 m Length 316 L Ultra Fine Woven SS Filter Mesh
30 m Length 316 L Ultra Fine Woven SS Filter Mesh
30 m Length 316 L Ultra Fine Woven SS Filter Mesh
Specifications
Brand Name :
CHANGTE
Model Number :
AP-5
Certification :
ISO 9001
Place of Origin :
Hebei China
MOQ :
3 roll
Price :
$40-60 rolls
Payment Terms :
L/C, T/T
Supply Ability :
100 rolls/day
Delivery Time :
8-15 work days
Packaging Details :
wooden pallet
Application :
Stainless Steel Screen Wire Mesh
Type :
Weave wire mesh,wire cloth
Technique :
Woven,welded mesh
Material :
Stainless steel wire,304,316
Usage :
oil,space flight,filter
Length :
1-30m,30 m tr
Feature :
Acid-resisting,corrosion resistent etc.
Color :
Silver,steel,black
Mesh count :
1-400 mesh
Packing :
paper tube inside+wooden box+plastic bag
Description

30 m Length 316 L Ultra Fine Woven SS Filter Mesh

Stainless Steel Screen Wire Mesh product:

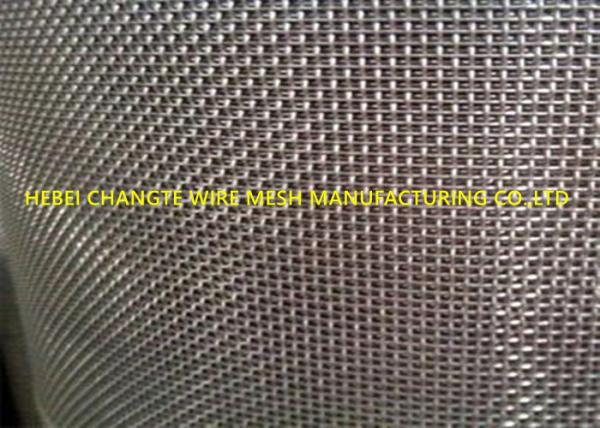

Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple cross-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Features of Stainless Steel wire mesh:
Stainless steel wire mesh is formed from stainless steel offering good wear resistance, high strength and less technical extension. The fine wire diameter allows good ink performance; also the wire mesh screen has stable mechanical properties, chemical properties and accurate sizes. The shortcoming of stainless steel printing screen is its lack of flexibility and more expensive price. Also, the wire mesh cannot restore properly to its original forms after expansion.

Uses:
Widely used in printing of electronics, textiles, ceramics, glass and other industries, also used as filter media in aviation, aerospace, petrochemical, and other high-tech areas.

Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch Wire diameter
(mm)		 Aperture
(mm)		 -- Mesh/inch Wire diameter
(mm)		 Aperture
(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 500mesh 0.025 0.0385


30 m Length 316 L Ultra Fine Woven SS Filter Mesh30 m Length 316 L Ultra Fine Woven SS Filter Mesh30 m Length 316 L Ultra Fine Woven SS Filter Mesh
