D 65mn 2mm Vibrating Screen Wire Mesh For Wet Materials
D 65mn 2mm Vibrating Screen Wire Mesh For Wet Materials
D 65mn 2mm Vibrating Screen Wire Mesh For Wet Materials
D 65mn 2mm Vibrating Screen Wire Mesh For Wet Materials
Specifications
Brand Name :
Changte
Model Number :
CT-SC3
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pieces
Payment Terms :
Can be negotiated
Supply Ability :
600 Pieces per Month
Delivery Time :
3-20 work days
Packaging Details :
Inside the plastic outside the woven bag，Wooden pallets or iron tray, can be customized according to customer requirements.
Type :
Weave Wire Mesh,Crimped Wire Mesh
Material :
stainless steel,65Mn
Weave style :
Plain Weave,quarry screen
Wire diameter :
2-6mm
Width :
customized
Hole shape :
Diamond Hole,D type,slotted type
Description

High Tensile Strength Self - cleaning Vibrating Screen Cloth For D Mesh

Self cleaning vibrating screen mesh is made of high carbon steel wire, spring steel wire and stainless steel wire. It can offer effective solutions to difficult sizing and aggregate separation conditions, such as the blinding and plugging.

Self cleaning vibrating screen mesh can separating and screening the wet and moist materials. It is widely used in the separating materials in the mining, quarry and other industries.

There are three types of self cleaning screen mesh.

D mesh

The D mesh is designed with precisely crimped wires and woven into diamond shaped openings. D mesh type has more effective open area, because there isn’t the straight wire, which is existing in the W mesh.

D mesh is ideal for the medium and light materials. It is effectively controls the materials sizing through the equal openings. D mesh can do an excellent job no matter how strict the material sizing requirements.

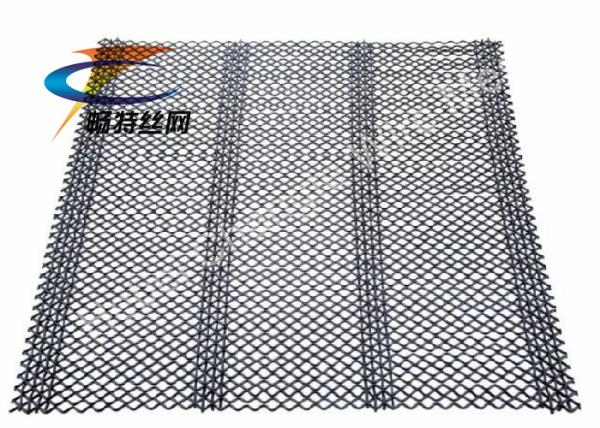

D type of self cleaning vibrating screen mesh.

Polyurethane can protect the binding wire and improve the wear resistance.

Features

Control strictly for the sizing.

Self-cleaning ability and less maintenance.

Three different types - W mesh, H mesh and D mesh.

Reduce the blinding and plugging.

Wear and abrasion resistance.

Producing tighter specifications and having the ability to self-clean.

Customized width and length is available.

Applications

Self cleaning screens effective screening all kind size of the most wet, moist material using in mining, quarry, aggregate processing industries.

SPECIFICATIONS
SCREEN TYPE DIMENSION APT WIRE DIAMATER
D TYPE HOOKS 2340X1220MM 25MM 7.88MM
1790X1220MM 12.7MM 3.76MM
1880X1220MM 4.0MM 2.03MM
S TYPE HOOKS 998X2915MM 50MM 8MM
2995X915MM 15.8MM 4.8MM
1790X1220MM 0.5MM 2.0MM
MODULE 610X305MM 35MM 6.8MM
610X610MM 9.5MM 3.05MM
305X305MM 0.75MM 3.05MM
