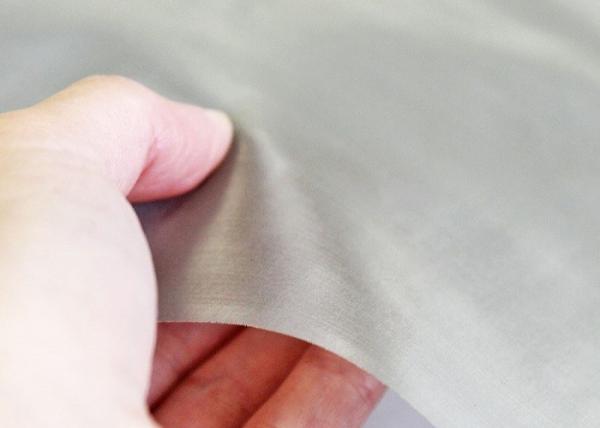

2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
2-500mesh Wire Mesh Filter Screen Mesh Plastic Extruder Filter Screen Rustproof
Specifications
Brand Name :
KDL
Certification :
ISO9001, ISO14001
Place of Origin :
China
MOQ :
100 m2
Payment Terms :
T/T, Western Union
Packaging Details :
Wrapped with water proof paper and shrink film in the wooden case.
Product Name :
Stainless Steel Woven Wire Mesh Used For Plastic Extruder Screens
Material :
Stainless Steel AISI304, AISI316, and etc
Woven Type :
Plain Weave, Twilled Weae, or Dutch Weave
Inventory Status :
Some Specifications are in stock and some not
Description

Stainless Steel Woven Wire Mesh For Plastic Extruder Screens with Various Sizes and Shapes

An Extruder Screen is a single or multi-layer of woven wire mesh filtration system. In this simple system, the woven wire meshes are molded and welded together into specific shapes and sizes with the required sequence.

Plastic extrusion is a high-volume manufacturing and filtration process in which raw plastic material is melted and formed into a continuous profile. During this process, plastic extrusion manufacturers must use some premium filters that can be customized to fit their operation while remaining budget-friendly, such as woven wire mesh extruder screens, to properly filter out hazardous containments.

This process starts by feeding plastic material (pellets, granules, flakes, or powders) from a hopper into the barrel of the extruder. The material is gradually melted by the mechanical energy generated by turning screws and by heaters arranged along the barrel. The molten polymer is then forced through the extruder screens into a die, which shapes the polymer into a shape that hardens during cooling. Extrusion produces items such as pipes, weatherstripping, fencing, deck railings, plastic films and sheetings, window frames, thermoplastic coatings, and so on.

Our Extruder Screens are available as Cut Pieces, Spot Welding, and Aluminum Bound Frame Packs, Cylinders, and Cones as well as customized shapes and specialized applications. Available in various materials, woven types, and all with a wide range of openings, from 3 microns to 800 microns, to suit any application.

Here are some very commonly used specifications of stainless steel woven wire mesh for plastic extruder screens, just for your reference. Other specifications, sizes, and woven types, such as the plain dutch weave and twilled dutch weave not listed here, are made to order. Please contact our sales team to discuss this.

Commonly Used Plain and Twilled Weave Type for Plastic Extruders
Mesh Count Aperture (mm) Diameter (mm) Open Area % Weight kg/m2
2 11.1 1.60 76.40 2.54
3 6.9 1.60 65.80 3.82
4 5.5 0.90 73.70 1.61
4 5.1 1.25 64.50 3.11
4 4.8 1.60 56.00 5.09
5 4.1 1.00 64.50 2.48
6 3.3 0.90 62.00 2.41
6 3.0 1.25 49.70 4.66
7 2.9 0.71 64.69 1.76
8 2.7 0.46 73.28 0.84
8 2.5 0.71 60.30 2.00
8 2.3 0.90 51.30 3.22
10 2.0 0.56 60.80 1.56
10 1.8 0.71 51.91 2.52
10 1.6 0.90 41.69 4.05
12 1.7 0.45 62.00 1.21
12 1.6 0.56 54.10 1.87
14 1.6 0.25 74.34 0.44
14 1.4 0.40 60.80 1.11
14 1.4 0.45 56.50 1.41
16 1.3 0.28 67.84 0.63
16 1.2 0.36 60.30 1.00
16 1.2 0.40 56.00 1.27
16 1.1 0.45 51.30 1.61
16 1.0 0.56 41.89 2.51
18 1.2 0.23 69.58 0.49
18 1.0 0.40 51.30 1.43
18 1.0 0.45 46.39 1.82
18 0.9 0.50 41.69 2.25
20 0.9 0.36 51.90 1.25
20 0.8 0.45 41.70 2.01
20 0.8 0.50 36.76 2.50
22 0.9 0.22 65.52 0.53
24 0.7 0.40 38.69 1.92
28 0.6 0.36 37.00 1.75
30 0.7 0.17 64.82 0.41
30 0.6 0.22 54.10 0.75
30 0.6 0.28 44.80 1.17
34 0.5 0.25 44.30 1.06
36 0.5 0.22 46.58 0.90
36 0.5 0.25 41.70 1.12
40 0.4 0.22 41.90 1.00
44 0.4 0.22 38.30 1.06
50 0.3 0.20 36.80 0.99
60 0.3 0.16 38.70 0.76
70 0.3 0.08 62.50 0.20
70 0.2 0.14 37.72 0.69
70 0.2 0.16 31.30 0.89
80 0.2 0.13 36.80 0.62
80 0.2 0.14 31.30 0.78
84 0.2 0.06 62.67 0.17
84 0.2 0.09 49.40 0.34
100 0.198 0.056 60.77 0.16
100 0.154 0.100 36.80 0.50
100 0.142 0.112 31.30 0.62
120 0.149 0.063 49.33 0.24
120 0.122 0.090 33.00 0.48
130 0.152 0.043 60.83 0.12
145 0.130 0.045 55.22 0.15
145 0.112 0.063 41.01 0.29
150 0.106 0.063 39.40 0.30
160 0.123 0.036 59.79 0.10
165 0.104 0.050 45.60 0.20
180 0.111 0.030 62.00 0.08
180 0.091 0.050 41.70 0.22
200 0.087 0.040 46.90 0.16
200 0.077 0.050 36.80 0.25
200 0.071 0.056 31.30 0.31
230 0.074 0.036 45.40 0.15
250 0.062 0.040 36.80 0.20
270 0.058 0.036 38.10 0.17
300 0.055 0.030 41.70 0.13
300 0.049 0.036 33.00 0.19
325 0.050 0.028 41.80 0.13
325 0.048 0.030 38.00 0.15
325 0.042 0.036 29.10 0.21
350 0.043 0.030 34.40 0.16
400 0.039 0.025 36.80 0.12
400 0.034 0.030 27.80 0.18
500 0.026 0.025 25.79 0.16

Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.

King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.

For your reference, some photos of our products and factory are listed here, please check.
