Fluke a3002 FC Wireless AC/DC Current Module FA3002 FC FA3003 FC F3004 FC F 772 F771 T6-1000 T6-600 FT5-1000 FT5-600
Fluke a3002 FC Wireless AC/DC Current Module FA3002 FC FA3003 FC F3004 FC F 772 F771 T6-1000 T6-600 FT5-1000 FT5-600
Specifications
Brand Name :
Fluke
Model Number :
Fluke a3002 FC Wireless AC/DC Current Module FA3002 FC
Certification :
CCCI
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union, T/T
Supply Ability :
10-100
Delivery Time :
7-10days
Packaging Details :
Carton
Description

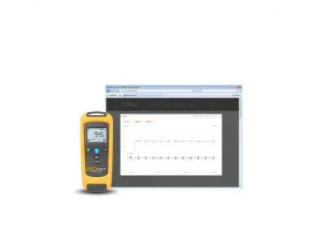

Specifications: Fluke a3002 FC Wireless AC/DC Current Module

AC/DC Current Function
A DC Range / resolution 1000 A / 0.1 A
Accuracy1 (0.5% + 3)
A AC Range / resolution 600.0 A / 0.1 A
Accuracy1 (1.0% + 3)
1. AC accuracy is specified from 45 Hz to 1000 Hz
Specifications
Maximum voltage between terminal and earth ground (module) 30 V DC or AC RMS
LCD w/backlight 3½ digits, 6000 counts, 4/sec update rate
Log rate/Interval Adjustable by PC from 1 sec to 1 hr, default 1 min
Battery type 2 AA Alkaline batteries, NEDA 15A, IEC LR6
Battery life 400 hours minimum
Memory Record up to 65,000 readings
RF communications 2.4 GHz ISM Band
RF communication range Open air, unobstructed Up to 20 m
Obstructed, sheetrock wall Up to 6.5 m
Obstructed, concrete wall or steel electrical enclosure Up to 3.5 m
Operating temperature -10°C to +50°C
Storage temperature -40°C to +60°C
Temperature coefficient 0.1 X (specified accuracy) / °C (< 18°C or > 28°C)
Relative humidity 0% to 90% (0°C to 35°C)
0% to 75% (35°C to 40°C)
0% to 45% (40°C to 50°C)
EMC IEC 61236-1, Portable
Safety compliance Protected to IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2
Certifications CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection (IP) rating IP42
Size (HxWxD) 160 x 66 x 38 mm (6.3 x 2.6 x 1.5 in)
Weight 0.255 kg (9 oz)
Warranty Three years
Not compatible with Fluke CNX test tools
