100% Original Launch BST760 Battery Tester BST-760 Battery System

Specifications

Brand Name :

LAUNCH

Model Number :

BST760

Certification :

ISO/CE

Place of Origin :

Shenzhen,Guangdong

MOQ :

1sets

Price :

USD330-400/set

Payment Terms :

L/C, T/T, Western Union, MoneyGram

Supply Ability :

1000set/mounth

Delivery Time :

5-8 workdays

Packaging Details :

Car scanners are packed by special plastic box inner and carton case outside

Item Type :

Code Readers & Scan Tools

Car Maker :

Audi,Benz,BMW,Chevrolet,Chevy,Chrysler,ETC

Software Update :

Free Online

Language :

Multilanguage

Express :

DHL,UPS,TNT,EMS,etc

Delivery time :

1-3 days after your payment

Model NO :

Launch BST760

Function :

Battery system tester

Description

100% Original Launch BST760 Battery Tester BST-760 Battery System

Top 3 reasons to get BST-760 Tester:

1. Two version :

Asia-Pacific Version , support language : English , Japanese , Russian and Chinese

EA Version , Supported Language: English, Spanish, German, French and Italian .

2. Product Principle: The world's most advanced conductance test technology

3. Scope: Suitable for 6V & 12V battery system and 12V & 24V starting and charging system detects.Apply to the European and American countries

Main Parameters:

100% Original Launch BST760 Battery Tester BST-760 Battery System
Package	Shell ABS anti-acid plastic , soft rubber TPU corrosion-resistant package,two-color molding
Display	128 * 64 dot matrix , large backlit display screen (3 inches ) adjustable brightness LCD display
Current clamp	The configuration of the 0-900A AC and DC current clamp
Printer	Built-in thermal printer , the test results can be printed out at any time
Test data	Can store 100 groups of test results data , ready at any time to view and print any of a group of test data
Test standards	including the most commonly used battery standard,such as CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
Operating Temperature	-20-60 (-4-140)

Product Advantage

Eight lines with backlight LCD display and humane language prompted interface

Does not emit light , no heat , no discharge , no spark , no operating dangerous

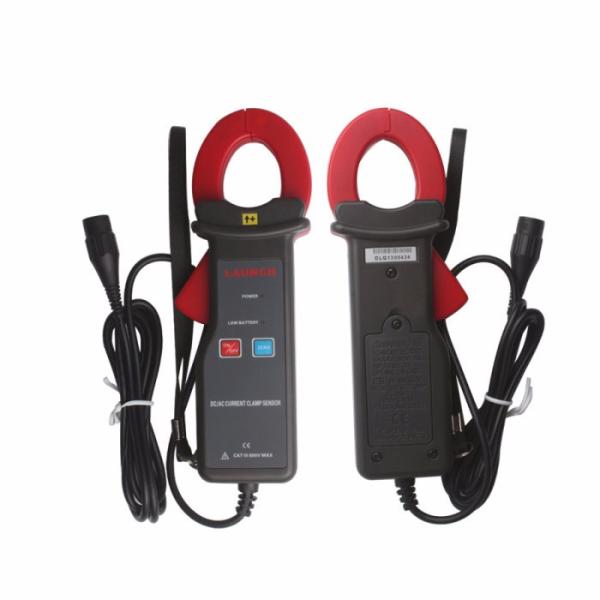

Configuration 0-900A AC and DC current clamp

Built - in thermal printer

Can store 100 groups of test results

Automatic temperature compensation function

With ripple voltage test function

Powerful auxiliary functions

Multi- language menu display

Replaceable test lines

Dedicated Kelvin test clip

Advanced Functionality

Applicable to a variety of models, all kinds of batteries , and a variety of system mode

Directly detected in the car , do not need to remove the battery

Directly test the battery of the loss of electricity , bad cell battery

Testable starting / charging current

Powerful Auxiliary Functions

View / Print

Ammeter Function

Thermometer

QC mode

License plate number input function

Time and time format Adjustment

User information input

Display backlight brightness adjustment function

Print sharpness adjustment

Standby power function

Test Criteria and Scope

CCA 100-2000 (SAE & BCI to develop the standard most commonly used : the cold-start battery rating )

BCI 100-2000 ( international battery Committee standards )

CA 100-2000 (0 when the effective starting current rating)

MCA 100-2000 ( ships standard effective starting current rating , 0 )

JIS 26A17 - 245H52 ( Japanese Industrial Standard)

Standard DIN 100-1400 ( German Automobile Industry Committee )

The IEC 100-1400 ( International Electrotechnical Commission standard )

EN 100-2000 ( European Automobile Manufacturers Association standards )

SAE 100-2000 ( U.S. Engineers Standard)

GB 100-1400 ( Chinese National Standard )

Function:

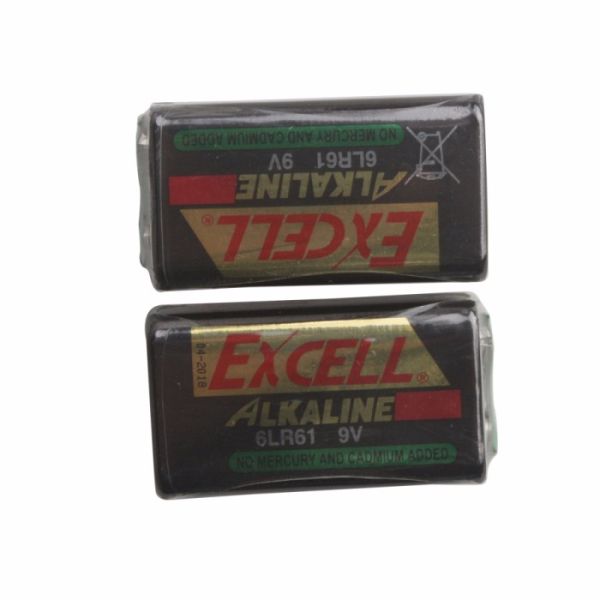

760 has 2 battery:one is used on the host, it can be tested without battery but have not backup power supply function.the other battery is used on current clamp.

The backup power supply function is the 15th auxiliary function. Some luxury vehicle ECU Power can't be cut.If the power failure,it will be locked. So when change storage-battery for luxury vehicle,760 can supply power to ECU.

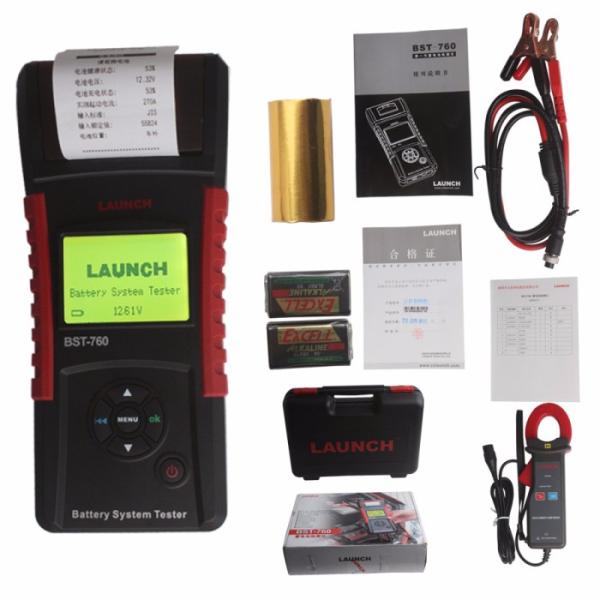

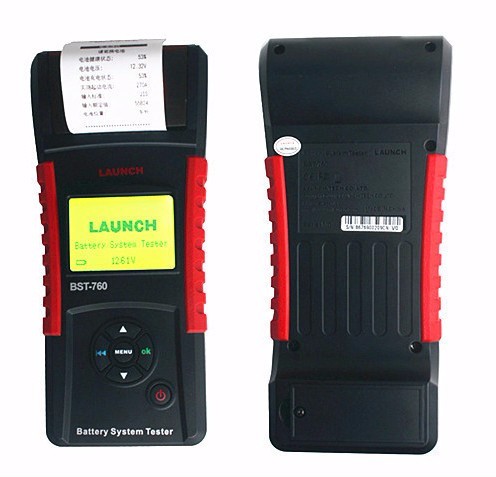

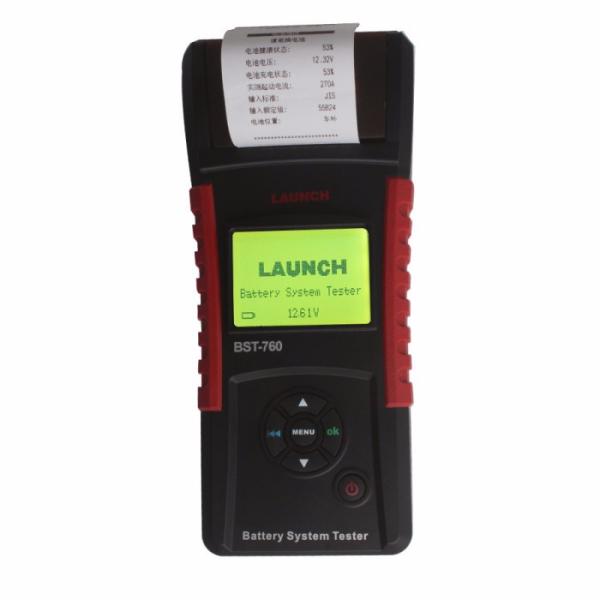

1pc x BST-760 Battery Tester Main unit

1pc x Tester cable

1pc x Detachable clamp

1pc x User Manual

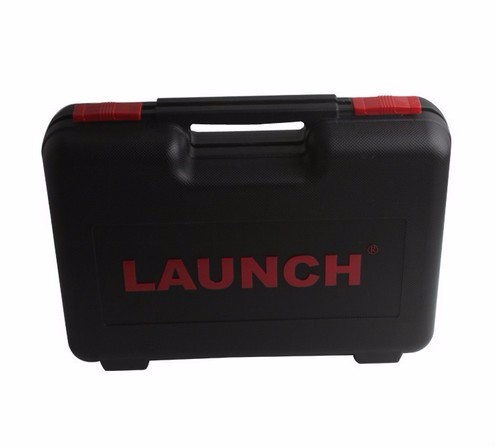

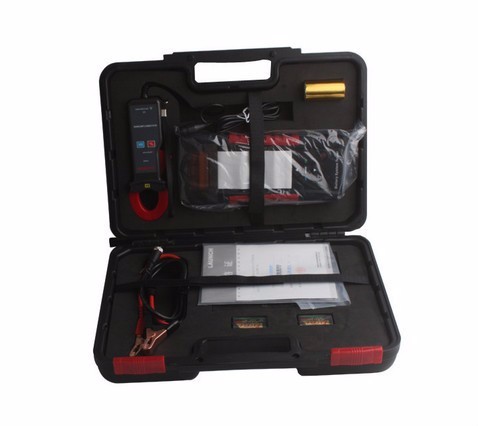

1pc x Carry Case

100% Original Launch BST760 Battery Tester BST-760 Battery System
