12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench
12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench
Specifications
Brand Name :
BFchina
Model Number :
12PSB-BFC
Certification :
CE/ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD3000-3500/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
150sets/year
Delivery Time :
15 days after your deposite
Packaging Details :
Packed by wooden box package or as your requirements
Color :
Green or Blue
Launguage :
English,Chinese
Function :
Diesel injection pump testing
Voltage :
220V/380V
Motor Power :
7.5KW/11KW/15KW/18KW/22KW
MOQ :
1 set
ODM/OEM :
Support
Product Name :
diesel fuel injection pump test bench
Description

12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench

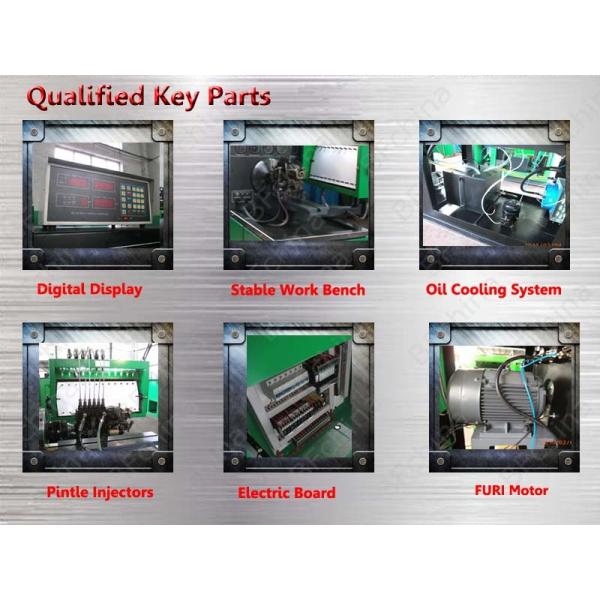

Machine Details

Our 12PSBB-BFC diesel fuel injection pump test bench is our best seller model, which is used to test mechanical pumps such as inline pumps and distributor pumps.

It adopts digital display control systems, which make it of more economical features.

Easy operating and save cost.

1. Features and Advantages

12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench

>>> Three system languages: Chinese, English and Russian (other languages can choose as customer's requirements).

>>> Main engine frequency conversion, manual and automatic two operating modes.

>>> Automatic mode can process multi- gears speed preset.

>>> Automatic oil measuring and counting system.

>>> Has short-circuit protection feature

>>> Two sets of air supply adjustment knobs on both sides,easy operation

>>> Automatic oil measuring plate (optional install).

2. Functions

>>> Test each cylinder's oil supply quantity under different rotate speed.

>>> Check each cylinder's injection timing under static state.

>>> Check the performance of mechanical governor.

>>> Test the electromagnetic valve of distributor pump.

>>> Test the tightness of injection pump.

>>> Measure the pump body internal pressure and oil return pressure of distributor pump.

>>> Check the performance of pressure equalizer, pneumatic governor.

>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.

3. Technical Parameters

12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench

Technical Items Parameters
Voltage 380V/22V
Rated output power 7.5KW/11KW/15KW/ 18.5KW/22KW
Speed 0--4000r/min
Oil supply 10L/min , 20L/min
Oil supply high pressure 0~3.5Mpa
Oil supply low pressure 0~0.35Mpa
Air supply pressure range 0~0.15Mpa
DC power 12V/24V
Fuel oil temperature 40 ± 2 ℃
Size 2150 × 750× 1850mm
Weight 910kg
Operating videos

BF1178 common rail injector and pump test bench

https://www.youtube.com/watch?v=0ZlHcqYqtMk

BF1176 common rail injector test bench

https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be

CRI common rail injector repair instruction

https://www.youtube.com/watch?v=lzLWMoYlMQk

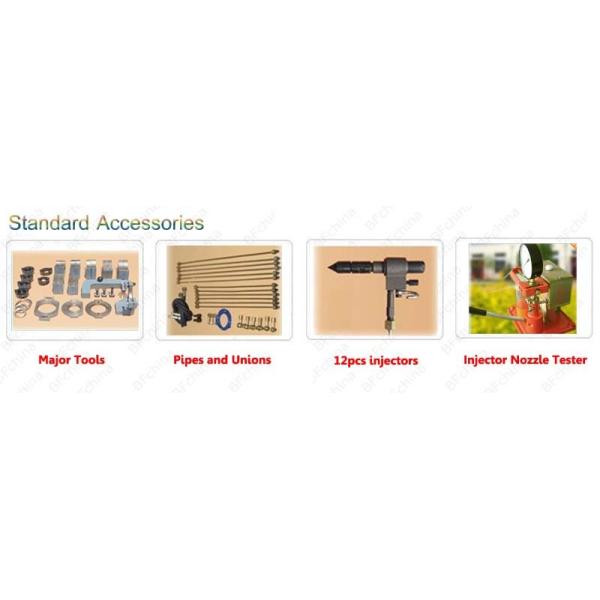

4. Optional Accessories and Tools
12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench
5. Applications

>>> Vehicles: Automobiles, tractors, agriculture machines, dynamos, engineering machinery

>>> Sea Transportation

>>> Scientific research of teaching

>>> National defense

After-sale service

1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided.

Packaging & Shipping

>>> Packaging : wooden case with water-proof membrane

>>> Delivery: within 15 days after receiving the deposit

12PSB-BFC low price digital display type BOSCH diesel fuel injection pump test bench
