RED4 diesel pump tester for Zexel electric control in-line pump
RED4 diesel pump tester for Zexel electric control in-line pump
RED4 diesel pump tester for Zexel electric control in-line pump
RED4 diesel pump tester for Zexel electric control in-line pump
Specifications
Brand Name :
BFchina
Model Number :
RED4
Certification :
CE/ISO
Place of Origin :
Shandong, China
MOQ :
1 set
Price :
USD700-750/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
150sets/year
Delivery Time :
15 days after your deposite
Packaging Details :
Packed by wooden box package or as your requirements
Color :
White
Launguage :
English
Function :
RED4 diesel pump tester
Voltage :
220V
Motor Power :
1.5KW
MOQ :
1 set
ODM/OEM :
Support
Product Name :
RED4 diesel pump tester for Zexel electric control in-line pump
Description

RED4 diesel pump tester for Zexel electric control in-line pump

Machine Details

RED4 diesel pump tester for Zexel electric control in-line pump

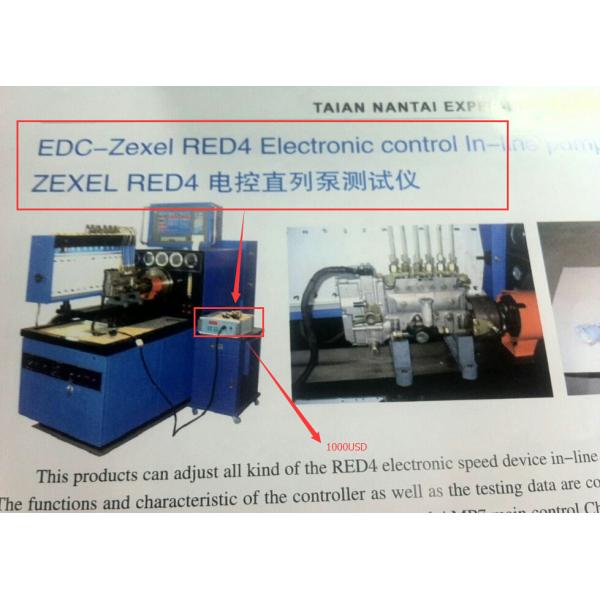

This products can adjust all kind of the RED4 Eletronic speed device in-line pump made by Japan Zexel Company. The functions and charateristic of the controller as well as the testing data are completely same as the original one. The product adopts the wide output power switch, high-speed AMP7 main control Chips, integrated Circuits, can finished all the RED4 adjusting functions.

The highly integrated products, reliable performance, is the the idea RED4 electronic speed governor.

1. Technical Data

RED4 diesel pump tester Eletronic Power 220V 50HZ
RED4 diesel pump tester Output Power <200 W
RED4 diesel pump tester Data display Light Four digital Nixietube
RED4 diesel pump tester Control Range 5%-95%
RED4 diesel pump tester Precision ±0.1%
RED4 diesel pump tester 4 Pre-set 5%, 16.25%, 72.5%, 95%

Operating videos

BF1178 common rail injector and pump test bench

https://www.youtube.com/watch?v=0ZlHcqYqtMk

BF1176 common rail injector test bench

https://www.youtube.com/watch?v=88KhnEcvTDs&feature=youtu.be

CRI common rail injector repair instruction

https://www.youtube.com/watch?v=lzLWMoYlMQk

2. Button Instructions:

2.1. "Select" Button: When the corresponding indicator light turns off, press "↑" "↓" button to adjust PWM value "5%-95%", while the corresponding indicator light turn on, press "↑" "↓" button to choose 4 kinds of pre-set: 5%, 16.25%, 72.5%, 95%.

2.2. "RED4 POWER": The Oil ajusting speed device switch, when it light effective.

2.3. "Limp home" Fixed speed switch, while the lamp light, PWM value is "95%".

2.4. "Pull Down" switch, When the lamp light, PWM value is "5%"

2.5. "Menu" and "Enter" Menu Operating: it can change the controller and run the programm. Before left factory, all the data have pre-set well, don't change it by any way, and leads to abnormal usage.

3. Usage Instructions:

Connect the oil pump adjusting speed device through the cables along with test EDC itself, Open the power switch, then open "RED4 Power", the corresponding indicator lamp will be light, display will show " 00.00", it can adjust the throttle up and down through the arrow "↑" "↓". Close the "RED4 POWER" switch, oil pump power off.

Press "Select" button, indicator lamp light, and press arrow "↑" "↓" to choose pre-set rank, and press "select" button again, indicator lamp power-off, then reback to the original situation.

Under the situation "elect" light powe-off, press "pull down" output value is "95%", press "Limp home", controller output value will be "5%".

RED4 diesel pump tester for Zexel electric control in-line pump

After-sale service

1. Technical support online service provided.

2. Technical files service provided.

3. On-site training service provided.

4. Spare parts replacement and repair service provided.

Packaging & Shipping

>>> Packaging : wooden case with water-proof membrane

>>> Delivery: within 15 days after receiving the deposit

RED4 diesel pump tester for Zexel electric control in-line pump
