16 RJ45 10/100M 16 Port POE Switch Built-in Power 24V CCTV Network Switch

Product No.: OTD16P01

Used for wireless AP, ip camera, IP telephone, wireless bridge, IP print server
(Your device must support passive poe)

This is a professional 24V 16 ports passive poe switch. The 16 10/100mbps ports provide fast ethernet data connection, While 15 ports support 4/5+,7/8- passive poe. 1 uplink with 15 poe ports. POE output voltage 24v. No need to add a poe splitter even if your device without POE module built-in. Plug and play, no need to configure. It greatly helps lower the cost for wiring. Only need a cat5 cable. Then power&data will be transport.

1,10/100Mbps
2,24v output
3,4/5+,7/8- power pin

Features and Benefits
l Complies with IEEE 802.3af/at & IEEE 802.3 & IEEE 802.3u standards.
l 15 POE ports, each port can provide 10W when full load, Cable power supply distance of 100M.
l 16 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX.
l UTP port support automatic negotiation function, automatic adjustment transmission mode and transmission rate.
l compatible with Ethernet application, Internet system, reduce the cost of network.
l Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode on all port.
l Non-blocking switching architecture that forward and filter packets at wire-speed for maximum throughput.
l Support MAC address auto-learning and auto-aging.
l LED indicators for monitoring power, link/activity.
l Steel case.

Specifications
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3x flow control

protocol
CSMA/CD

Transmission Rate
Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Topology
Star

Network Medium
10Base-T:Cat 3 or above Cat.3 UTP(≤100m)
100Base-TX:Cat 5 UTP(≤100m)

Support VLAN
yes

Number of Ports
16 10/100M RJ45 ports

POE Ports
15 POE Ports

UPLINK
1 UP-Link port

Transmits Method
Store-and-Forward

Over Voltage/Current/Short Protection
The output can be shorted permanently without damage.

Temperature
Operating Temperature 0°C~40°C
Storage Temperature -40°C~70°C

Humidity
Operating Humidity 10%~90% non-condensing
Storage humidity 5%~95% non-condensing

Switch capacity
3.2G

LED Indications
1* power LED(PWR: Green)
1* POE LED(POE: Green)
16* port LEDs(Act: Green)

Power supply
24V/3A

Product Package Dimension(L x W x H)
36*25*10cm

Case Material
Steel case

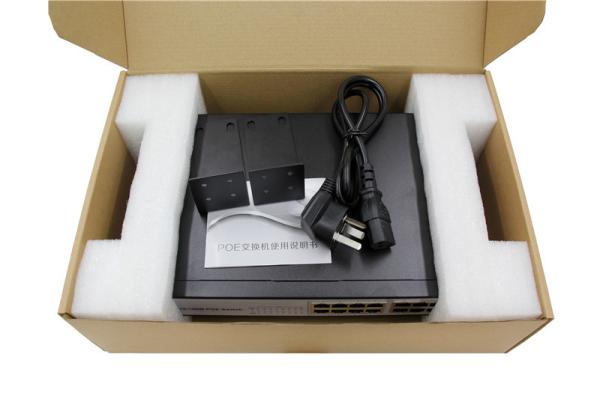

Packing list:
1 1 POE Switch
2 1 Power Line
3 1 pair of tools for install
4 1 User manual
5 1 Guarantee card

PRODUCT PICTURES
