Specifications
Place of Origin :
China
Brand Name :
Huaye
Certification :
ISO14000
MOQ :
50 MT
Packaging Details :
standard export packing
Delivery Time :
45 days
Payment Terms :
L/C, T/T
Supply Ability :
100000
Commodity :
Prepainted Color Steel Coils
Thickness :
0.2-1.2mm
Width :
700-1250mm
Standard :
JIS G3312
Steel Grade :
CGCC, DX51D
Inner diameter :
508mm&610mm
Coil Weight :
3-8T
Description

JIS G3312 hot dipped galvanized, galvalume steel plate Prepainted Color Steel Coils / Coil

PPGI(PPGL) Features:

Soft commercial quality or Lock forming quality(LFQ)

1 Thickness: 0.2-1.2mm

2 Width: 700-1250mm

3 Standard: JIS G3312,Inner diameter: 508mm&610mm, Coil Weight: 3-8T

4 Steel Grade: CGCC, DX51D

5 Plate: hot dipped galvanized plate or galvalume steel plate

6 Categories of paint: polyester, silicon modified polyester(SMP), Fluor polymer paint&PVDF

7 Painting thickness: 25+/-5 microns on top side and 7+/-2 microns on back side

8 Color: white, red, blue or customized as per RAL color card

9 Packing: Standard export packing, 4 eye bands and 4 circumferential bands in steel,
galvanized metal fluted rings on inner and outer edges, galvanized metal and waterproof
paper wall protection disk, galvanized metal and waterproof paper around circumference
and bore protection.

10 With or without protective film on the top side of color coated sheet or coil.

11 Applications: buildings, vehicles, ships, mechanical and electrical equipment
and electrical household appliance

12 Cutting and slitting can be requested as customer's designation

COMMODITY: PRE-PAINTED ZINC STEEL SHEET Contract NO. HYEXP2010-07-10A Date: SEPTEMBER-17-2010
Steel Grade: ACC JIS G3312, SOFT MATT Condition of Supply PRE-PAINTED ZINC STEEL SHEET
Certificate NO.		 100710A
No. Heat No. Size(mm) Zinc Coating: Color side A Coat property Steel property
Pain thick (μm) T-Bend (T) Impact (J) Gloss (GU) Pencil hard YS. Re Mpa UTS. Rm Mpa EL. A %
1 0710225 0.30X800 MM RAL5012 Z-60 RAL 5012/25 microns 25 3 9 50 3H 360 380 35
2 0710296 0.30X800 MM RAL8004 Z-60 RAL 8004/25 microns 25 3 9 55 3H 365 373 37
3 0710246 0.25X800 MM RAL5012 Z-60 RAL 5012/25 microns 25 3 9 50 3H 358 375 36
4 0710288 0.25X800 MM RAL8004 Z-60 RAL 8004/25 microns 25 3 9 55 3H 355 368 36

Product advantage:
1.Non-pollution
2.Weatherability
3.Corrosion resistance
4.Long service life
Application of painting hot dipped galvanized steel:
1.Construction:roof for steel structure workshop,airport,storeroom
2.Shipbuilding industry
3.Vehicle manufacturing
4.Furniture industry
5.Electric industry etc.
Competitive Advantage:
1.Reliable and stable Quality
2.Reasonable Price
3.Fast delivery time
4.More Than 10 Years export experience

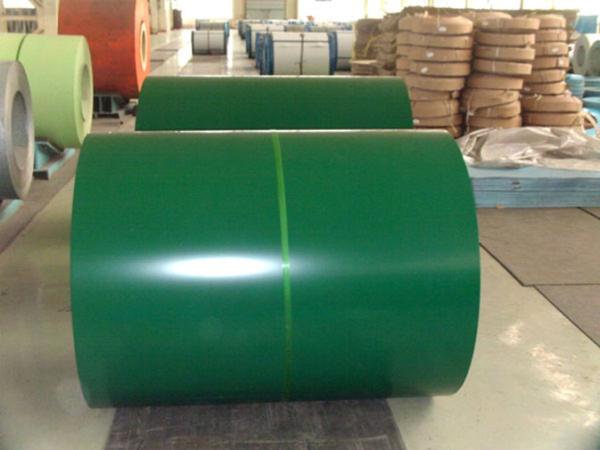

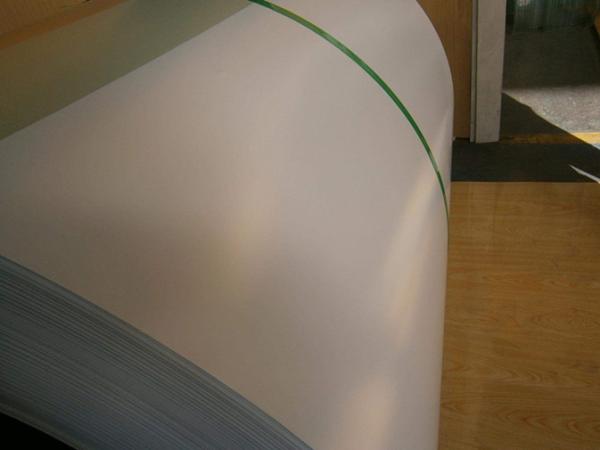

Picture of pre rolled coils:
JIS G3312 Hot Dipped Galvanized, Galvalume Steel Plate Prepainted Color Steel Coils
JIS G3312 Hot Dipped Galvanized, Galvalume Steel Plate Prepainted Color Steel Coils

JIS G3312 Hot Dipped Galvanized, Galvalume Steel Plate Prepainted Color Steel Coils

JIS G3312 Hot Dipped Galvanized, Galvalume Steel Plate Prepainted Color Steel Coils
