DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
Specifications
Place of Origin :
China
Brand Name :
Huaye
Certification :
ISO14000
MOQ :
50 MT
Price :
negotiate
Packaging Details :
Standard export packing
Delivery Time :
30 or 45 days
Payment Terms :
T/T or L/C
Supply Ability :
10000MT PER MONTH
Commodity :
Hot Dipped Galvanized Steel Coil
Grade :
DX51D,SGCC,SGCC/DX51D,CS-B,DX51D+Z/SGCC/DX51D/SPCC
Thickness :
0.30-1.50 mm
Width :
914-1250mm
Base metal :
SPCC, SPCD, SPCE, ASTM A792, DX51D, DX53D, Q195, Q235etc
Double sides AZ coating :
30-150g/m2
Coil weight :
3-8 Tons
Surface :
Galvanized Coated
Spangle :
Big
Coil id :
508mm/610mm
Application :
Boiler Plate
Description

Galvanized steel roll:


1. Thickness: 0.30-1.50 mm
2. Width: 914-1250mm
3. Inner diameter: 508mm
4. Double sides AZ coating, 30-150g/m2
5. Base metal: SPCC, SPCD, SPCE, ASTM A792, DX51D, DX53D, Q195, Q235etc
6. Package: with edge protector, steel hoop and seals, Export wrapped ID and OD protection or as per customers' requirements.
7. Cutting and slitting can be requested as customer's designation
contact: sales@wxhy.com.cn

Grade DX51D,SGCC,DX52D,ASTMA653,JISG3302
Thickness 0.13-4.0mm
Width 600-1500 mm
Zinc Coating 40-275g/m2
Surface Treatment light Oil,Unoil,dry,chromate passivated,non-chromate passivated
Spangle regular spangle,minimal spangle, zero spangle,big spangle
Coil Weight 2-5 tons
Coil ID 508/610 mm


Mill Test Certificate:

　

　

　

　

　

　

　

No.

Heat No.

Size:(mm)

Quantity

Chemical Composition(%)

Physical Spec

Final

　

　

　

( MT)

C

Mn

P

S

Tensile strength

Enlongation

Yield Strength

　

　

　

　

　

(Mpa)

(%)

(N/mm2)

　

1

120809128

0.4MM X 1220MM
X C

24.780

0.05

0.20

0.019

0.012

381

33

310

A

Applications:

Car: muffler, exhaust pipes, wiper accessories, fuel tank, truck boxes and other
Appliances: refrigerator back, gas furnaces, air conditioners, microwave oven, LCD borders, CRT explosion with, LED backlight, electrical cabinets and other
Construction: roofs, walls, garage, soundproof walls, pipes and modular housing
agricultural: Other barns, sheds, silos, pipelines and other greenhouse use: heat insulation cover, heat exchangers, dryers, warm water, etc.


Product Advantage:
Galvalume steel has many excellent features: strong corrosion resistance, is three times the pure galvanized sheet; surface zinc beautiful flowers, can be used as a building outside board.
Corrosion resistance
"Galvalume steel coil," primarily because of the corrosion protection of aluminum and aluminum.
When subjected to wear zinc, aluminum and alumina will form a dense, corrosion-resistant material to prevent further corrosion inside.
Heat resistance
Aluminum-zinc alloy steel plate has good heat resistance, can withstand temperatures over 300 degrees Celsius, and aluminized steel high temperature oxidation resistance is very similar, often used in Chimney pipes, ovens, and fluorescent lighting hood.
Thermal reflective
High heat reflectivity of galvanized steel, galvanized steel sheets twice,
people often use it to make insulation materials

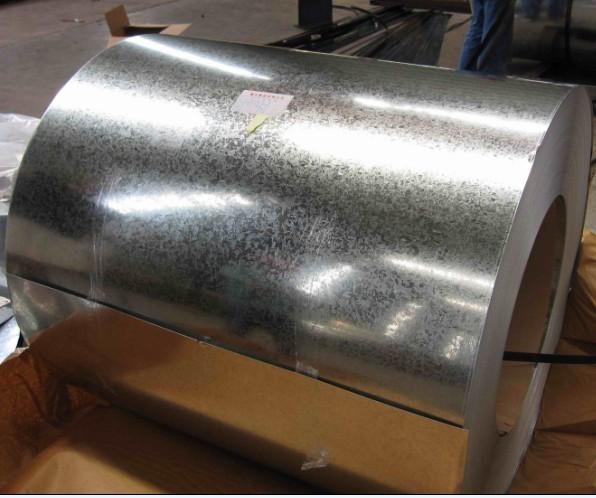

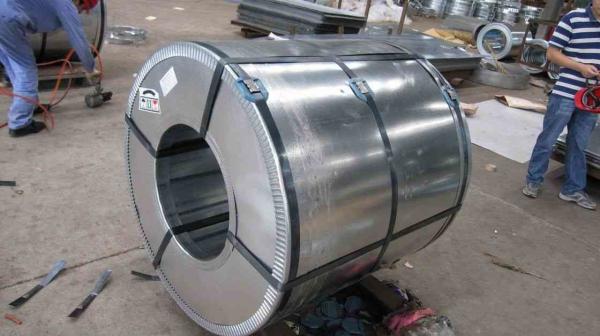

Product and package pictures:
DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel

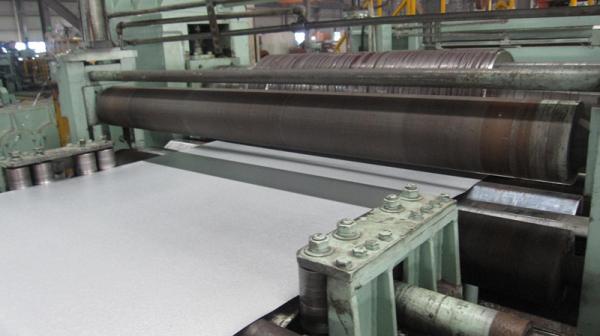

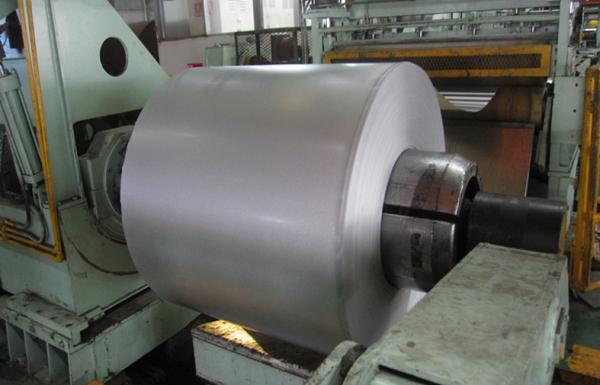

Photos for Hot Dipped Galvanized Coil

DX51 SPCC 0.3mm Grade For Boiler Plate Hot Dip Zinc Coated Steel
