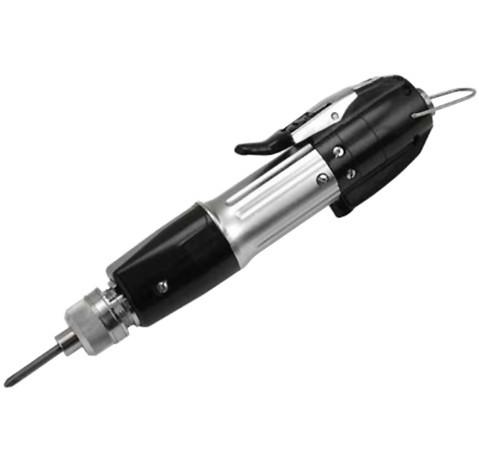

2017 hot sales made in Japan CL-7000 electric screwdriver,screwdriver 0.3~2.5N/M
2017 hot sales made in Japan CL-7000 electric screwdriver,screwdriver 0.3~2.5N/M
Specifications
Place of Origin :
Japan
Brand Name :
HIOS
Model Number :
CL-7000
MOQ :
1pcs
Packaging Details :
carton
Delivery Time :
within 3 days after the receipt of payment
Payment Terms :
T/T,Western union,Escrow
Supply Ability :
9999pcs/month
Certification :
CE
Adjustable Torque Range (kgf. cm) :
3~25
Unloded Rotation Speed :
750
Small Size Screw :
2.0~5.0
Tapping Screw :
2.0~4.0
Description

CL-7000 electric screwdriver,power screwdriver

Use the exclusive 12mm oil-retaining bearing as a drive and located system,

The transmission and output torque is very stable.

*Precision

The clutch mechanism is made of the lightweight aluminum alloy, and collocates

the planetary reducer can reduce the mechanical frictionfactor and achieved the high precision.

*High-efficiency

Installed two sets of terust ball bearing in the longitudinal rotation axis to make the electric screwdriver's

pushing transient load increased by 30%.

* Main applicable products

Camera, cellphone, digital camera, HDD harddisk, CD disk, Laser Pickup, Car stereo, UPS avigraph,

minitype VTR, minicomputer, TFT panel, NB laptop computers, fax machine, photocopier, telescopic antenna,

communication equipment, video recorders, video game players and car lights etc.

Model

CL-2000

CL-3000

CL-4000

CL-6000

CL-6500

CL-7000

Output

N/m

0.02~0.2

0.03~0.2

0.1~0.55

0.2~1

0.3~1.6

0.3~2.5

Ibfin

0.17~1.7

0.3~1.7

0.9~4.8

1.7~8.8

2.6~14

2.6~22

(kgf/cm)

(0.2~2)

(0.3~2)

(1~5.5)

(2~10)

(3~16)

(3~25)

Torque Switching

Stepless Adjustment

Unloaded

HI

680

1000

800

900

750

RotationSpeed (r.p.m)5%

LOW

490

670

690

500

600

-

Screw Size(mm)

Small Size Screw

1.0~2.3

1.0~2.0

1.4~2.6

2.0~3.0

2.0~4.0

2.0~5.0

Tapping Screw

1.0~2.0

1.0~1.7

1.4~2.3

2.0~2.6

2.0~3.0

2.0~4.0

Dimensions(mm)

Grip diameter

Ø26

Ø32.5 / 37.5

Ø32.5 / 37.5

Ø32.5 / 37.5

Ø37

Ø37

Length

166

183

197

197

235 / 236

255 / 256

Weight(g)

200

350 /390

380 / 430

380 / 430

660

750

Bit Type

H4

H4 or 1/4 HEX

H5 or 1/4 HEX
