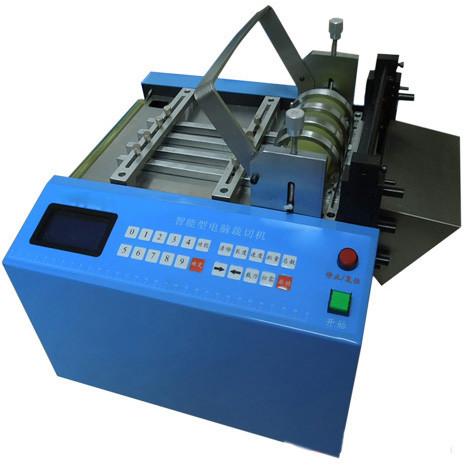

automatic rubber band cutting LM-200s

Model:LM-200s

Control Model: RAM control system
Cutter: import SKD - 11 High speed steel

Motor: AC motors

Available Width: 0.1 ~ 200 mm
Available Length: 1 ~ 100m
Speed: 150 pcs/min
Accuracy: 0.1mm
Power Supply: AC110V 60Hz / AC220V 50Hz 250W
Measurement: (L)480*(W)400*(H)480mm
Weight : 36 Kg
Display: LCD
Operation Language: English or Chinese

* High speed: It can cut 150 cut per minute. (50mm long) Cutter speed adjustable ,
Electric operation: It works electrically only by setting length and quantity

* Arbitrary length and speed continuously adjustable

* Automatic grouping accrued and total cumulative count

* Batch pause and delay time can be set

* Lack of material automatic shutdown, unattended

* Can cut a variety of automatic cutting tubular strip material;

* High-speed stepper motor precisely controlled pipe cutting & tape length; tape length, speed adjustable;
With LCD screen display,it is simple and convenient to operate.

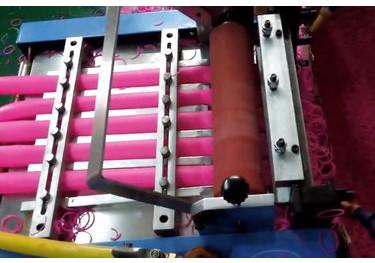

This machine can be used to automatically cut any kinds of tubular, ribbon, thread-like material

* Cutter time protection; total set; points to set; points to pause time adjustable;
* Available in a variety of manual operation, convenient debugging;

* LCD large screen visual display, operation simple and convenient;
This machine changed a cutter mould .It can cut different tube.

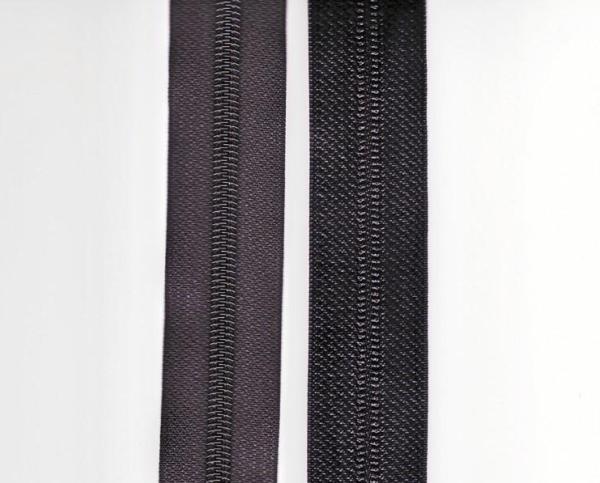

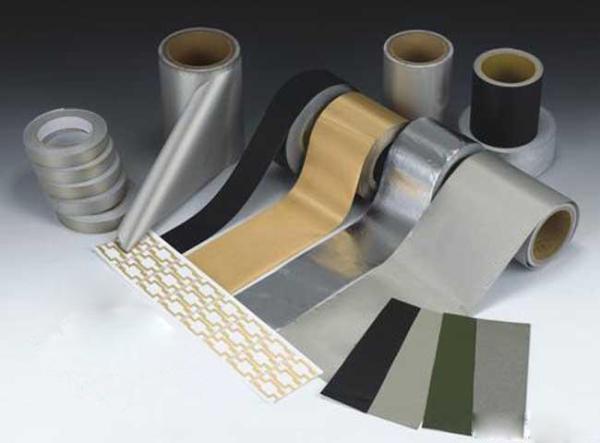

Application: Nylon tower buckle, cotton belt, elastic belt, plastic belt, zipper, PVC tube, heat shrink tubing, silicone tube, glass fiber tube, Teflon tube, cable, small wires, conductive fabric / foam, battery separators nickel film, diffusion film, reflective film, double sided tape, Mylar, insulation paper, PE, copper / aluminum foil, cable, release paper cut copper, aluminum, plastic film, heat shrink tubing, PVC pipe , infusion tube, insulation paper, mica, adhesive paper, electrodes, conductive fabric / foam, double-sided tape, heat shrink tubing, nickel plate, pole piece, very ears, insulating paper, Mylar film, barley paper , Pakistan fast paper, polyimide tape (KAPTON), copper / aluminum foil, metal foil, cable, small wires, leather, paper, conductive fabric / foam, acetate cloth, PET, non-woven , insulation paper, EVA, rubber mats, webbing, belts, colored tape, plastic leatherback sea cotton, copper / aluminum foil, a variety of adhesive tape, flexible circuit boards ,ect.

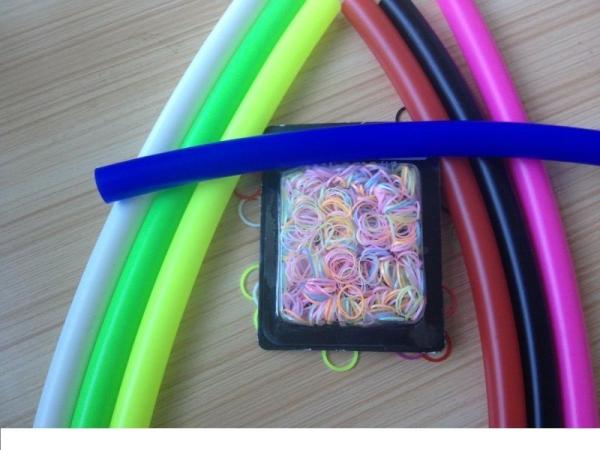

All kinds of Silicone tube,Plastic Tube, Medical tube ,Yellow wax tube
Feature: Heavy duty, high speed, high accuracy, designed for cutting non-adhesive materials.
