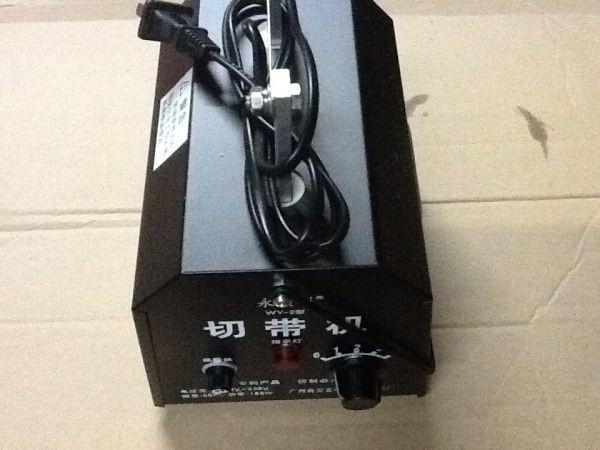

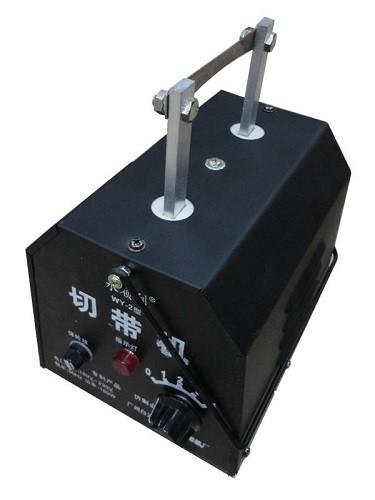

manual elastic belt cutting machine WY-2(hot cutter)

The cutting speed of the product for a few seconds that is up to 500 ℃ - 700 ℃, the machine can cutter longitudinal belt, rope, elastic band, nylon belt, etc., and the ribbon cutting heat consolidation, no burrs. Each product are rigorous factory inspection, inspection qualified, quality assurance.

Usage---this product is easily operated, when you use it, please input voltage 170v-220v, and the power is about 108w. The household electricity is also suitable for it.

The detailed usage as follows

1. When you switch on the power supply, please rotate the bottom right knob to the number”1”, the blade will be aglow in a few seconds, and then it can work.

2. If it doesn’t become aglow when you rotate the knob to “1”, you can rotate it to “2”. If it still doesn’t work, please check the voltage (the normal voltage is about 200v) whether it’s regular or not, if the voltage is regular, you must check the blade whether it has a bad contact. If the voltage is under 200v, you can rotate it to “3” or “4”. Caution---it’s prohibited to rotate it to “4”when the voltage is 200v.

Cautions

1. When the blade isn’t aglow enough, please try to screw down the nut on the blade.
2. After using it a while, the heat of the blade will drop, please take away the blade and clean its both sides which touch the nut with a piece of abrasive cloth, and then screw down the nut with a little spanner.
3. When you use it next time, if the blade isn’t aglow enough or even not aglow at all , please take away the blade from the cutting machine and clean its both sides which touch the nut with a piece of abrasive cloth, and then screw down the nut with a little spanner.
4. If the indicator light doesn’t work and the fuse is burnt, please replace it with the 2A fuse, if the 2A fuse still doesn’t work, the cutting machine must be repaired.
