Specifications
Model NO. :
EA-78386
Rotation Direction :
Right Rotation
Surface Finishing :
Nickel Plated
Certification :
ISO
Customized :
Customized
Other Name :
Keen Locking Thread Insert
Delivery Time :
Within 3-7 Working Days
Size :
M10
Advantage :
Durable; Rust Anti; Easy to Use
Sample :
Available
Specificate :
Metric, Inch
Transport Package :
Plastic Bag+Carton
Specification :
100pcs/bag
Trademark :
EA
Origin :
China
HS Code :
7318190090
Production Capacity :
500000PCS/Week
Description
Product Description
Lightweight 303 Stainless Steel Keylocking Thread Inserts 78386
Material: SUS303
Plastic Bag+Carton
Keylocking Thread Inserts are solid inserts that are threaded both internally and externally with keys attached to the top of the insert.
After the insert has been screwed into the parent material, the insert's locking keys are driven down into the tapped threads of the parent material during installation creating a positive mechanical lock that prevents rotation due to vibration or torsion.
Performance of Keylocking Thread Inserts
Threaded inserts are widely used in the repair and construction of workholders. Below are some of the reasons key inserts are an effective solution for manufactures:
They can be used to reinforce a variety of weaker thread materials, including aluminum and magnesium
They are reliable, and can stand up to demanding wear and high vibration
Threaded inserts are available in a wide variety of metric and inch sizes to match your application
Types of thread inserts
Heavy Duty Key Inserts: Feature a thick, heavy-duty thread wall and are suitable for most applications.
Thinwall Key Inserts: Have a smaller OD thread size than standard and heavy-duty keenserts. These parts are ideal for use in tight spaces where less pull-out strength is acceptable.
Solid Key Inserts: These key inserts have a solid base and are ideal for relocating a drilled or tapped hole.
Small series: M2-M4 threaded inserts with 2 key lock.
Product Parameters

Metric type, Thin wall series

No. Specification Data Installation
Type Stainless steel Carbon steel 6H 6g Length Key No. Tap Drill Thread Tap
Internal thread External thread Drill bit Tap depth Thread tap
Thin wall SUS-M5-M8 C.S-M5-M8 M5*0.8 M8*1.25 8 2 6.9 9.5 M8*1.25
SUS-M6-M10 C.S-M6-M10 M6*1.0 M10*1.25 10 2 8.8 11.5 M10*1.25
SUS-M8-M12 C.S-M8-M12 M8*1.25 M12*1.25 12 4 10.8 13.5 M12*1.25
SUS-M10-M14 C.S-M10-M14 M10*1.5 M14*1.5 14 4 12.8 17.5 M14*1.5
SUS-M12-M16 C.S-M12-M16 M12*1.75 M16*1.5 16 4 14.8 17.5 M16*1.5

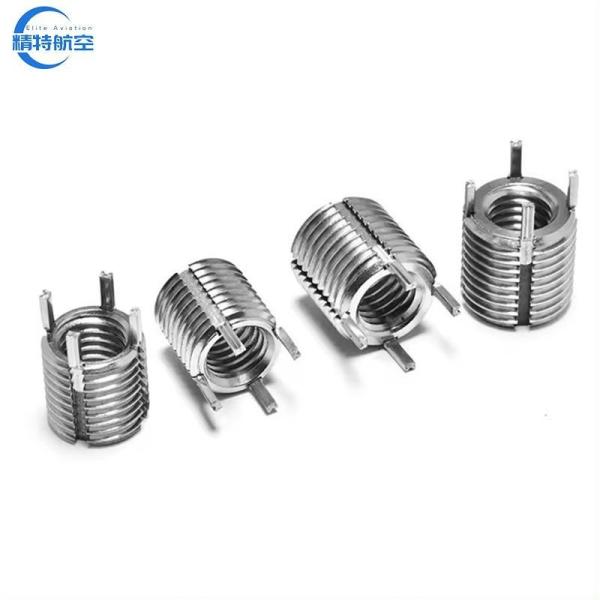

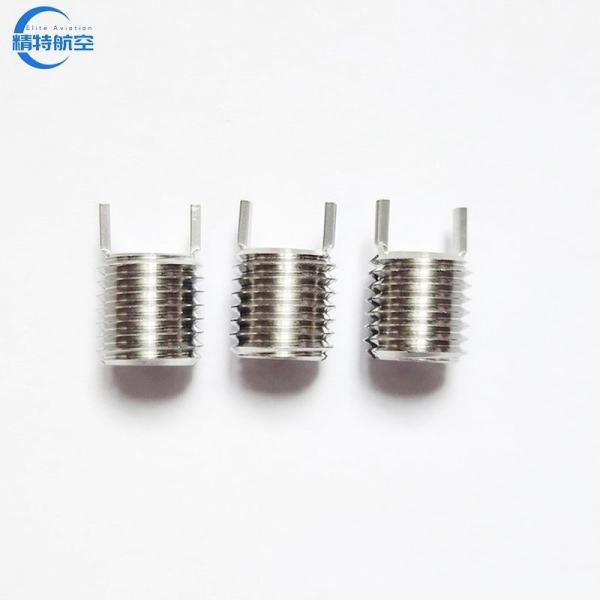

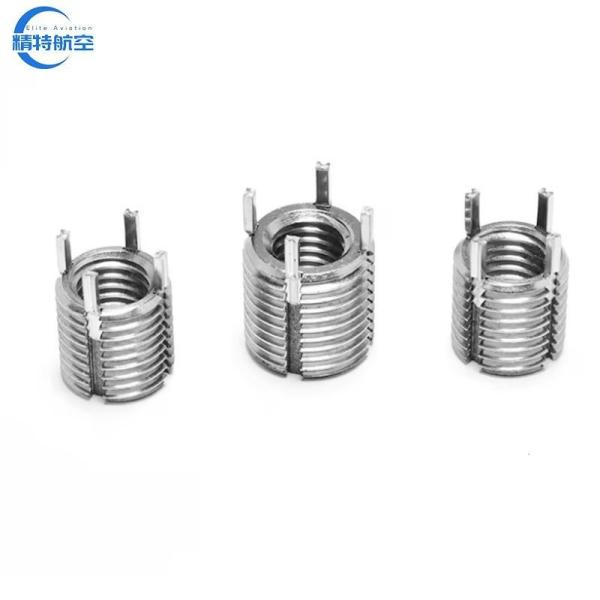

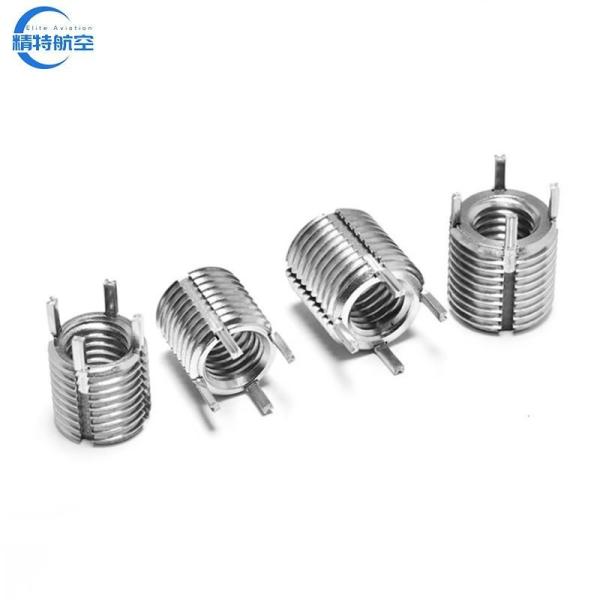

Detailed Photos

EA-78386 Lightweight 303 Stainless Steel Keylocking Thread Inserts for and DurabilityEA-78386 Lightweight 303 Stainless Steel Keylocking Thread Inserts for and DurabilityEA-78386 Lightweight 303 Stainless Steel Keylocking Thread Inserts for and Durability

Packaging & Shipping

EA-78386 Lightweight 303 Stainless Steel Keylocking Thread Inserts for and DurabilityPackage: Usually finished products will be put into plastic bags and outer with carton cases.
We will also reinforce the cases onto tthe pallet to avoid damage during transportation.
Delivery time: Stocked goods can be delivered out the same day we received the order.
Usually the delivery time is within 3-7 working days.

Products Procedure

EA-78386 Lightweight 303 Stainless Steel Keylocking Thread Inserts for and Durability

FAQ

Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: Do you provide samples? Is it free?
A2: Free samples can be supplied and the freight is paid by clients.
Q3: What is your payment terms?
A3: Payment<3000USD,100% payment in advance.
Payment>3000USD,30%T/T in advance,the balance 70% paid after inspection and before shipment.
Q4: What's your after sales service?
A4: Elite Aviation's goods have one year guarantee time and during this time if there is any quality questions, free replacement service is supplied.
