Specifications
Model NO. :
EA-Customized
Rotation Direction :
Right Rotation
Surface Finishing :
Zinc Plated
Certification :
ISO, RoHS
Customized :
Customized
Other Name :
Screw Thread Insert
Delivery Ways :
by DHL, UPS, TNT, FedEx, EMS, by Ocean, by Air
Advantage :
Durable; Rust Anti; Easy to Use;High Precision;Lig
Surface Treatment :
Polishing
Transport Package :
Plastic Bag+Carton Case
Specification :
100pcs/bag
Trademark :
EA
Origin :
China
HS Code :
7318190090
Production Capacity :
500000PCS/Week
Description

Product Description

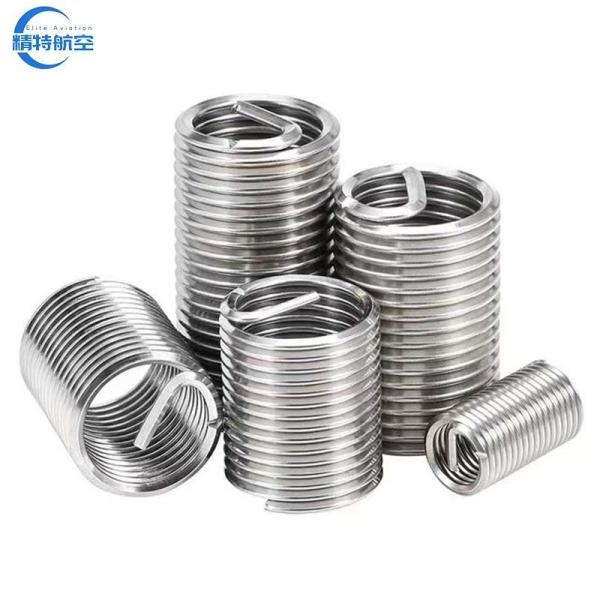

Free Running Wire Thread Inserts Of Non-Standard Customization Supported are flexible and versatile fasteners that create strong and durable threads in soft or low-strength materials.
Free Running Wire Thread Inserts Of Non-Standard Customization Supported are can support non-standard thread sizes and pitches, as well as different lengths and materials.
Whether you need to repair damaged threads, reinforce existing threads, or create new threads, Free Running Wire Thread Inserts Supports Non-Standard Customization are the perfect solution for your fastening needs.

EA threaded inserts provide high-precision, high-quality, permanent, wear-resistant internal threads and are designed to be installed in molded or drilled holes in one simple step.

Wire thread inserts are coiled fastenings that are typically used to strengthen threads and protect tapped holes against failure. They can be used to strengthen threads, prolong the life of your applications.
Each insert sharing the load over the entire bolt and hole, improving holding or pull out resistance.
Materials are generally made of 304 stainless steel wire rolled into a diamond shape cross-section.

Product Parameters


Thread Insert Material and applicability condition
Material Steel Grade Usage Temperature Collapse strength at room temperature Surface Treatment
Stainless steel 0Cr18Ni9 425ºC in short time
315ºC in long time
>1400Mpa Natural surface
Cadmium plating
Silvering plating
1Cr18Ni9
1Cr18Ni9Ti
Copper alloy QSn6.5-4 300ºC in short time
250ºC in long time
>1000Mpa Natural surface
Cadmium plating
High-temperature alloy Inconelx750 750ºC in short time
550ºC in long time
>1400Mpa Natural surface
Silvering plating
Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface Finishing
Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface Finishing
Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface Finishing
Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface Finishing
Lightweight yet robust design gives superior holding power
Quick and simple installation process
Large variety of materials and coating options
Special lengths and diameter pitch combinations available to order
A wide range of tooling options available

Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface Finishing

Products Applications


Applications:
Automotive
Rail carriages
Metal construction
Aerospace industry
Agricultural machinery
Construction machinery
Electronic devices
Mechanical engineering
Wind power Solar

Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface Finishing

Package and Delivery Time

Customized Free Running Wire Thread Inserts Supported by Non-Standard Customization with Zinc Plated Surface FinishingPackage: Usually finished products will be put into plastic bags and outer with carton cases.
We will also reinforce the cases onto tthe pallet to avoid damage during transportation.
Delivery time: Stocked goods can be delivered out the same day we received the order.
Usually the delivery time is within 3-7 working days.

FAQ

Q1:Are you trading company or manufacturer
A1:We are factory.
Q2:Do you provide samples is it free?
A2:Free samples can be supplied and the freight is paid by clients.
Q3:What is your payment terms?
A3:Payment<3000USD,100% payment in advance.
Payment>3000USD,30%T/T in advance,the balance 70% paid after inspection and before shipment.



Company Profile

Elite Aviation Manufacturing Co., Ltd is a professional supplier of thread inserts filter elements and metal products. Since its establishment, ELITE has always adhered to the production and business philosophy of "quality first, customer first", and is committed to providing cost-effective fastener products and fastening system solutions for various industries.

Now, our main products include thread inserts and filters two series. Thread inserts are tangless thread inserts, wire inserts with tails, self tapping inserts, keylocking inserts and their supporting tools. Filters are sintered mesh filter element, corrugated filter element, wire-wound filter element, bag filters, etc. Products are widely used in fields such as communication electronics, aviation, aerospace, rail transit, ships, medical treatment, industrial equipment. Through the continuous efforts of ELITE AVIATION people, products have been widely used in industries such as aviation, aerospace, high-speed rail, large locomotives, automotive manufacturing, power, machinery, as well as high-voltage switchgear, etc.

ELITE AVIATION, to create a global brand of Chinese wire thread inserts and filter elements.
