Specifications
Brand Name :
Xstarlink
Model Number :
ACX-SL-01-16
Certification :
ROSH CE FCC
Place of Origin :
ShenZhen,China
MOQ :
10
Price :
discuss
Payment Terms :
T/T Alibaba , Western Union
Supply Ability :
1000pcs/day
Delivery Time :
5-8 work days
Packaging Details :
Carton Size: 616*415*406mm GW: 4kg
Wireless Charging :
Yes
Ram :
8GB
Connectivity :
4G
Biometric Security :
In-display fingerprint sensor
Screen Size :
12.4 inches
Screen Resolution :
1280 x 768 pixels
Storage :
128GB
Operating System :
Android 10
Display Type :
AMOLED
Processor :
Topway TS10
Description

Product Description:

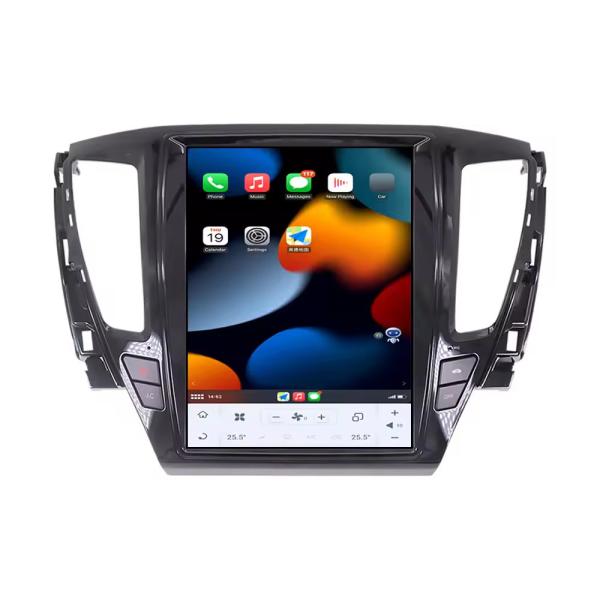

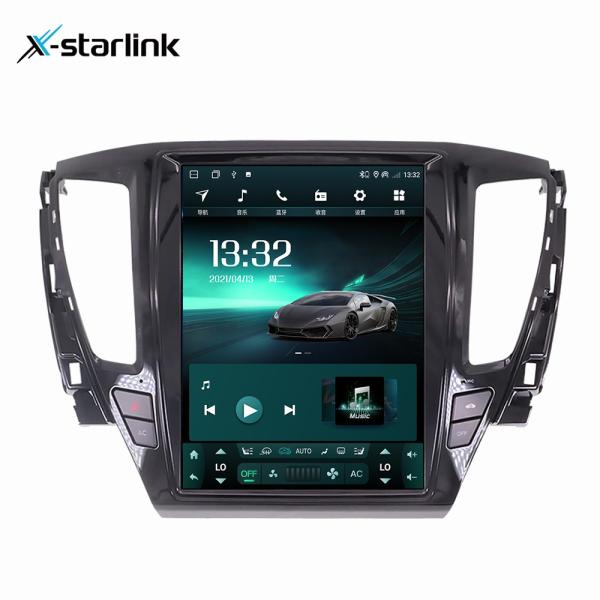

12.1inch Vertical Screen Android For Mitsubishi Pajero Sport 2017 2018 2019 Car Audio System

Upgrade your Mitsubishi Pajero 2017-2019 with third-generation split-screen capabilities, enabling seamless multitasking with single-finger and three-finger gestures. The day and night mode automatically adjusts to a dark theme for safer night driving. Bluetooth 5.0 offers stable connectivity and aptX audio for superior sound quality, while Smart Voice Control 3.0 enhances offline voice recognition for a safer drive.

Features:

1. Can support android12.0 system.
2. Support 4G full Netcom and 3G (BAND1/5/8).
3. Built-in ROHM DSP, digital audio processor, improve sound quality.
4. Built-in audio optical fiber interface (SDPIF), which can be connected to an external power amplifier, which is convenient for the original car modification and improves the sound quality.
5. Support 1 external SIM card interface (4G SIM card not included).
6. Support 2x USB 2.0 output
7. Support 1080P hardware decoding.
8. It can support up to FULL HD (1920*768) resolution display driver (30PIN PIMl interface/40PIN LVDS interface).
9. Support USB interface camera for driving recorder recording and storage.
10. Support voice recognition.
11. Support Mirror link (Android / iPhone).
12. Support the rear view camera to quickly reverse the display.
13. Support AHD high-definition camera and 360 panoramic AHD input.
14. Built-in WIFI 2.4G/4G, 2.4G supports IEEE802.11b/g/n, can support WIFI hotspot.

Technical Parameters:

SYSTEM Android 13
CPU Octa-UIS7862 (8core 2*A75+6*A55, 1.8Ghz)
GPU Mali-G52
RAM/ROM 4+64/8+128/8+256
SCREEN RESOLUTION IPS 1024*768
RADIO MODULE TDA7708
SOUND PROCESSOR ROHM DSP
WIFI 2.4G/5G
GPS GPS+GLONAS
BLUETOOTH Bluetooth 5.0

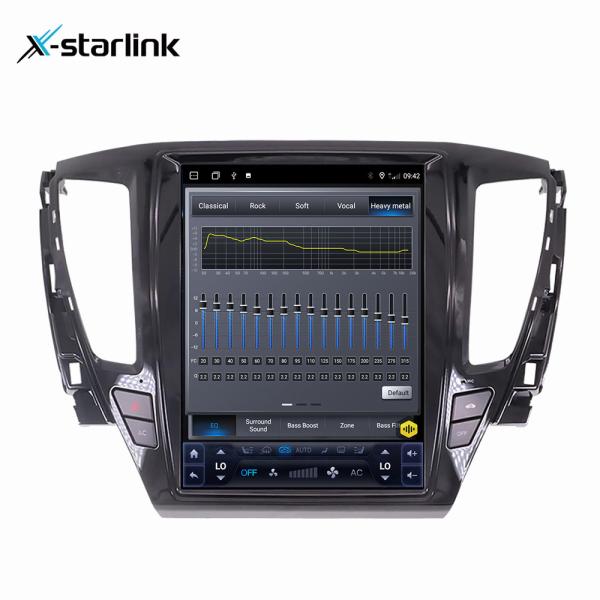

EQ MODE Jazz/Pop/Classical/Rock/Urban/Techno
CARPLAY&ANDROID AUTO Support both wired & wireless
IMAGE FORMAT jpg/png/jpeg/bmp
VIDEO FORMAT mp3/acc/flac/wav/m4a/mp2/arm/ogg
VIDEO FORMAT mp4/3gp/avi/dvix/flv/mkv
AUDIO INPUT AUX input left and right channel
AUDIO OUTPUT 5.1 CH
VIDEO INPUT AUX Video Input/Rear View Input
VIDEO OUTPUT USB video output box for CVBS (HDMI optional)
USB 1-way 0TG + 2-way Host interface
FOTA UPDATE Support
SLEEP Support
LANGUAGE Support Multi-language (Over 60 Kinds)
EXENDED FUNCTIONS Split screen/OBD/DVR/Voice command/
WORKING VOLTAGE DC 14.4V
WORKING TEMPERATURE -30C°<temperature< 75C
STORAGE TEMPERATURE -40C°<temperature< 85C

Applications:

Mitsubishi Pajero 2017 2018 2019 car navigation system Car Stereo Radio

  • Supports 1080P hardware decoding.
  • Supports USB interface cameras for dashcam recording and storage.
  • Supports voice recognition (optional).
  • Supports Android or Apple smartphone connectivity.
  • Supports quick reversing display with rearview camera.
  • Supports AHD high-definition cameras and 360° panoramic AHD input.
  • Built-in WiFi 2.4G/5G; 2.4G supports IEEE802.11b/g/n, 5G supports HT20/HT40/VHT20/VHT40/VHT80, and can support WiFi hotspot.
  • Built-in Bluetooth 5.0, supports Bluetooth phonebook, A2DP, and external Bluetooth devices such as OBD, mouse, gamepad, keyboard, etc.
  • Built-in Bluetooth supports BT network sharing.
  • Integrated positioning module, supports GPS+GLONASS and GPS+Beidou positioning systems.
  • Supports capacitive screen with more than 5-point touch.
  • Built-in TDA7708 digital radio for better reception.
  • Reserved CVBS output interface, can be achieved with an additional adapter board.
  • Supports 360° panoramic AHD input.
  • OTA online updates, enabling access to the latest software updates with internet connectivity.
