Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
Specifications
Place of Origin :
China
Brand Name :
XCAREPAIRKING
Certification :
CE
Model Number :
XTP2500E
MOQ :
3 sets
Packaging Details :
plywood case
Delivery Time :
25-40 days
Payment Terms :
T/T, Western Union, MoneyGram,Cash
Supply Ability :
700 sets per month
Price :
US$2300
Height (mm) :
3460
Width (mm) :
2712
Length(mm) :
4315
Type :
Parking Lift
Description

Home Garage Use Two Post Car Parking Lift 2500kg/1950mm

Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage

Features

  • Can be used in household or office building parking lot.
  • Sharing post design, space saving, economic and more steady.
  • Dual-cylinder lifting system, more stable
  • Synchronous sliding framework balancing system
  • Electric lock release system, more safe.
  • Wave plate or diamond plate are optional.
  • You can choose hot galvanizing, electroplating or powder spray
  • Mold machining through the whole process so that the parts are universal and interchangeable
  • Pass 120% capacity dynamic load text and 150% static load test.
  • Italian oil seal to make sure no oil leakage.
  • Solenoid valve has the urgent manual lock release function.
  • Optional manual pump on power unit in case of power off.
  • Optional 24v control box, solenoid value.
  • Optional ultrared rays alarm device, in case of unguarded entrance.

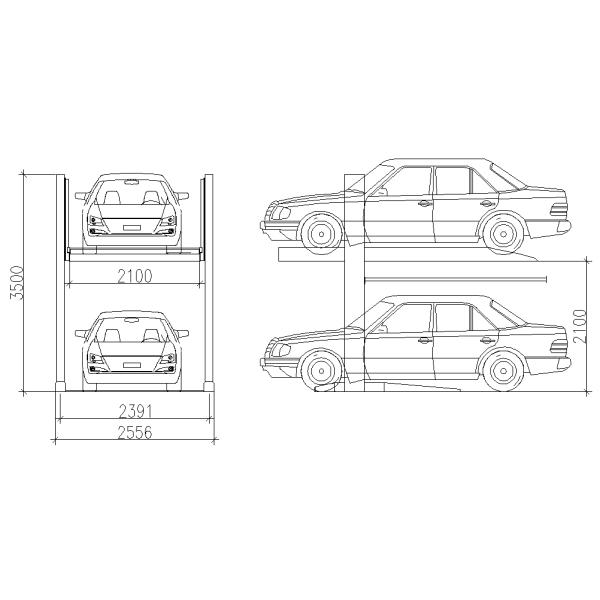

Technical Drawing

Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage

Technical Parameters

Lifting capacity 2500kg/5500lb
Lifting height 1950mm
Runway(car loading plate) width 2150mm
Outer dimension 4315*2712*3460mm

Rise time

 60s
Power Supply 2.2kw/220V/380V, 1ph/3ph, 50Hz or 60Hz
Vehicles Specs 5000*1850*1550mm

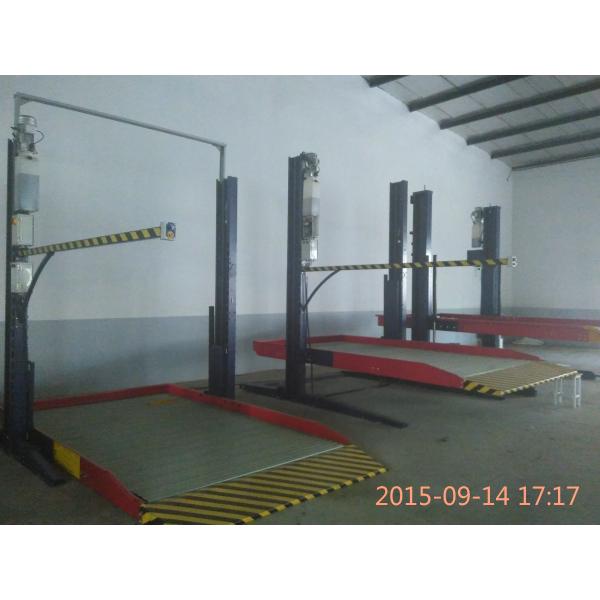

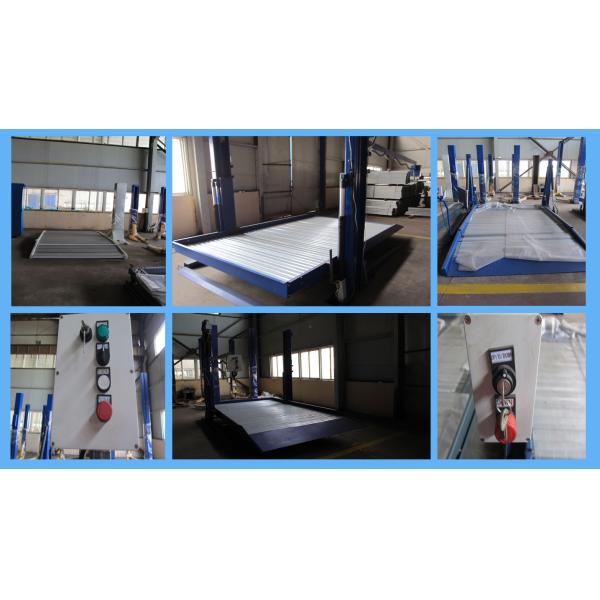

Detailed Pictures

Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage

More Models for Option

Simple Car Parking Lift 2.5ton Two Post Hydraulic Car Lift Parking for Residential Garage
